Rennsteig 450008C — rennsteig pin punch 8mm available at Alltools Geelong. Shop our full rennsteig pin punch 8mm range in Geelong.
Rennsteig

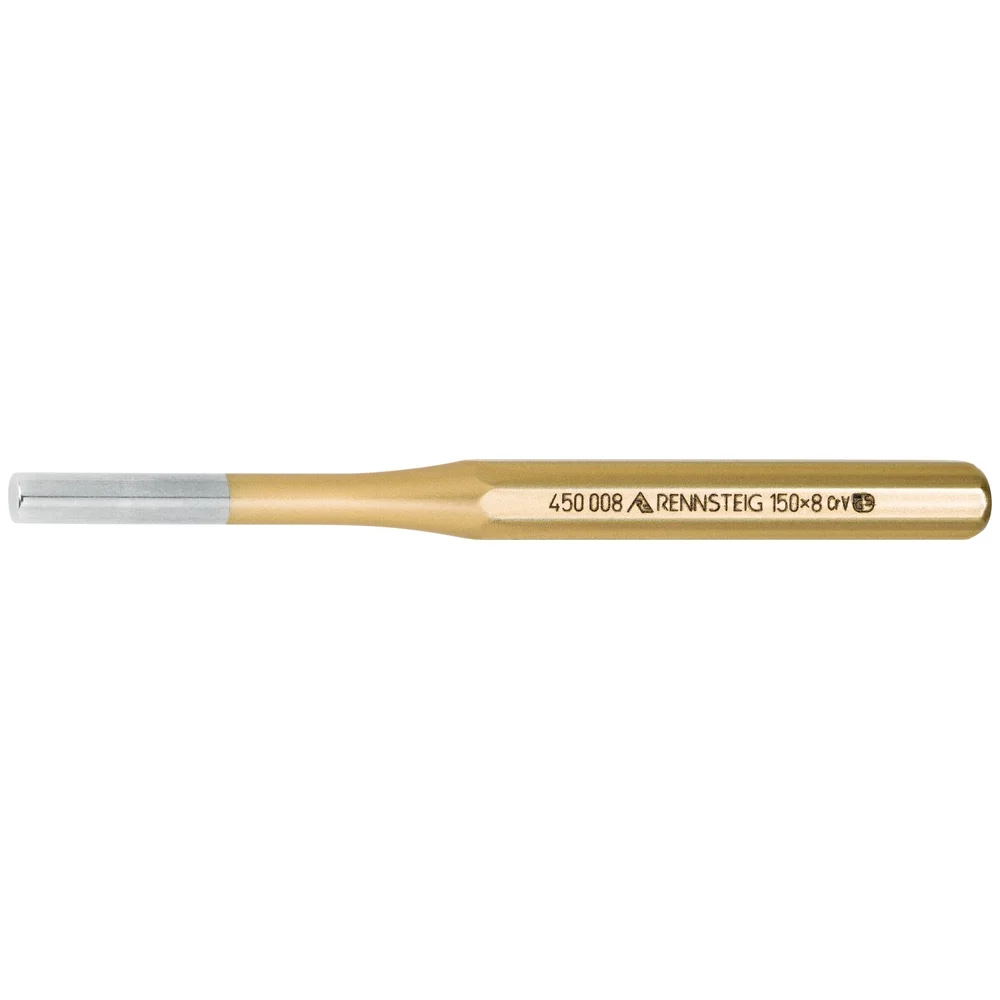

Rennsteig Parallel Pin Punch — 8.0 x 150mm
Part No: 450008C | Barcode: 4049002030994 | Product Group: Pin Punches
The Rennsteig 450008C is a German-made parallel pin punch with a 8mm tip on a 150mm octagonal body. Built to DIN 6450 from chrome-vanadium steel, it drives pins, rivets and bolts cleanly through a hole without jamming.
8mm Tip
150mm Long
Octagonal Body
DIN 6450
Chrome-Vanadium
Made in Germany
Suitable For
Driving Out Pins & Dowels
Removing Rivets
Knocking Out Bolts
Machinery & Engine Work
Key Features & Benefits
- Parallel pin tip — the straight, parallel point pushes pins, rivets and bolts fully through a hole without tapering or jamming.
- Slightly undersized tip — the working diameter is a touch under nominal so the punch follows the pin through cleanly instead of binding in the bore.
- Through-hardened chrome-vanadium — hardened over the full length to DIN 6450 for a tip that holds its shape under repeated hammer blows.
- Octagonal shank — the eight-sided body grips securely when struck and won’t roll off the bench.
- Safety-annealed head — the struck end is specially treated to resist splintering and mushrooming for safe, long-term use.
When to Use This Tool
Use the 450008C to push a 8mm (or smaller) pin, rivet or bolt the rest of the way through a hole — typically after a taper punch has started it. Match the punch diameter just under the pin size. Ideal for fitters, mechanics and toolmakers; strike with an engineer’s hammer.
| Part No. | Tip Ø | Length | Profile | Barcode |
|---|---|---|---|---|
| 450002C | 2mm | 150mm | Octagonal | 4049002030871 |
| 450003C | 3mm | 150mm | Octagonal | 4049002030895 |
| 450004C | 4mm | 150mm | Octagonal | 4049002030918 |
| 450005C | 5mm | 150mm | Octagonal | 4049002030932 |
| 450008C ★ | 8mm | 150mm | Octagonal | 4049002030994 |
★ You are viewing the highlighted variant. Other sizes/variants in this series are also available.
