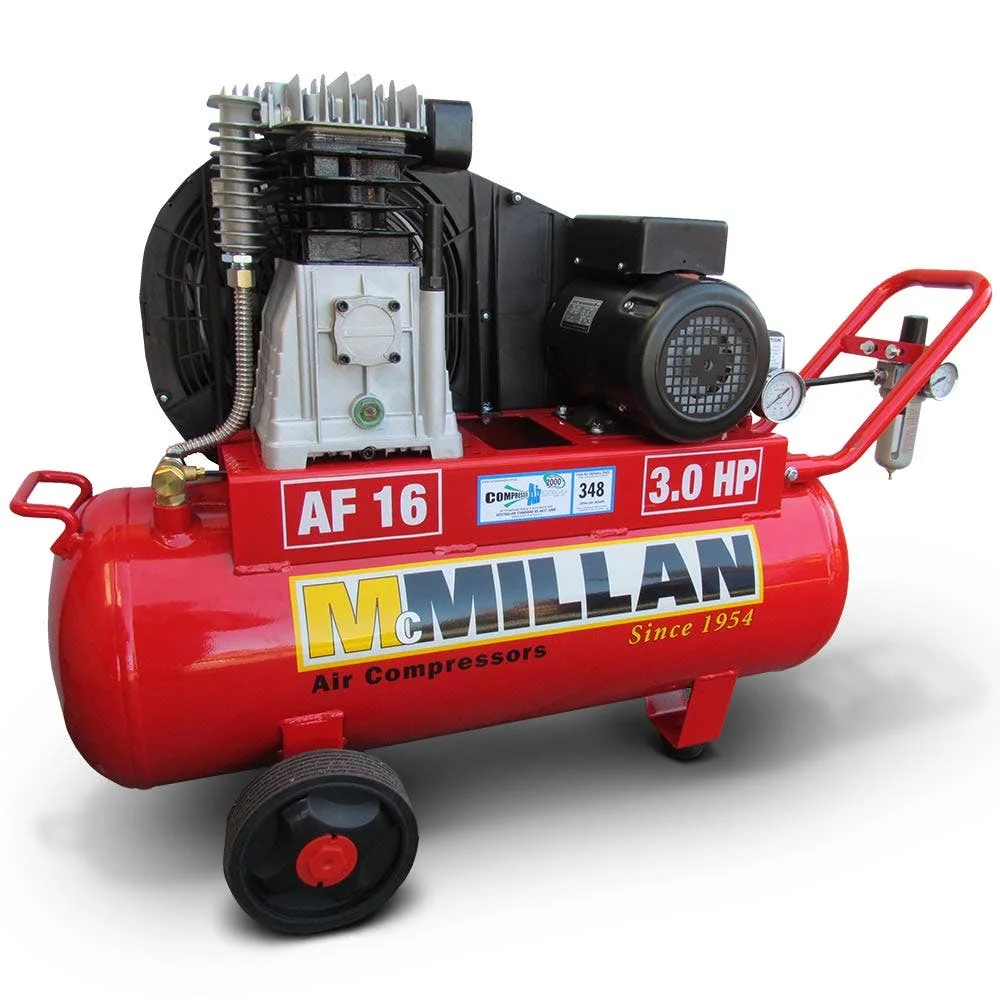

McMillan AF16 Belt Drive Air Compressor — 3HP 348LPM 60L
Part No: AF16 | Barcode: 18959
The McMillan AF16 is a heavy-duty belt drive air compressor built in Australia, delivering 348 LPM (12.3 CFM) of free air from the renowned ABAC B3800 twin-cylinder cast iron pump. Paired with a TECO motor running on single-phase 240V/15A power, this compressor is the backbone of workshops and trade sites that demand reliable, continuous air supply.
348 LPM FAD
3HP Motor
60L Tank
Belt Drive
ABAC Pump
240V / 15A
66 kg
Suitable For
Impact Wrenches
Spray Painting
Sanders
Die Grinders
Nail Guns
Tyre Inflation
Workshop Use
Key Features & Benefits
- ABAC B3800 cast iron pump — world-renowned Italian pump with twin cylinders delivers consistent, high-volume air output for demanding applications.
- TECO motor with overload protection — backed by TECO national service network for motor support anywhere in Australia.
- Condor German-made pressure switch — precise, adjustable cut-in/cut-out differential ensures reliable automatic operation.
- Belt drive system — reduces pump RPM for cooler running, less wear, and longer service life compared to direct-drive compressors.
- 60-litre powder-coated tank — meets Australian Standard AS1210 for pressure vessels.
- 5-year pump and 5-year tank warranty — one of the longest warranties in the industry, reflecting build quality and durability.
- Filter/regulator included — clean, regulated air straight out of the box with no additional accessories needed.
When to Use This Compressor
The AF16 is built for the tradesperson or workshop operator who needs reliable industrial air from a single-phase 15A power supply. It handles sustained use of impact wrenches, spray guns, die grinders, and sanders without the duty cycle limitations of direct-drive compressors. Choose the AF16 over smaller direct-drive units when you need continuous air for professional trade work. For higher-capacity needs or a larger tank, consider the AF16/L (125L tank) or AF430 (5HP, 155L).
Product Specifications
| Model | FAD | Displacement | HP | Tank | Amps | Pump | Max PSI |
|---|---|---|---|---|---|---|---|
| AF12 | 238 LPM | 331 LPM | 2.2 | 60L | 10A | B2800 | 140 |
| AF16 ★ | 348 LPM | 464 LPM | 3.0 | 60L | 15A | B3800 | 140 |

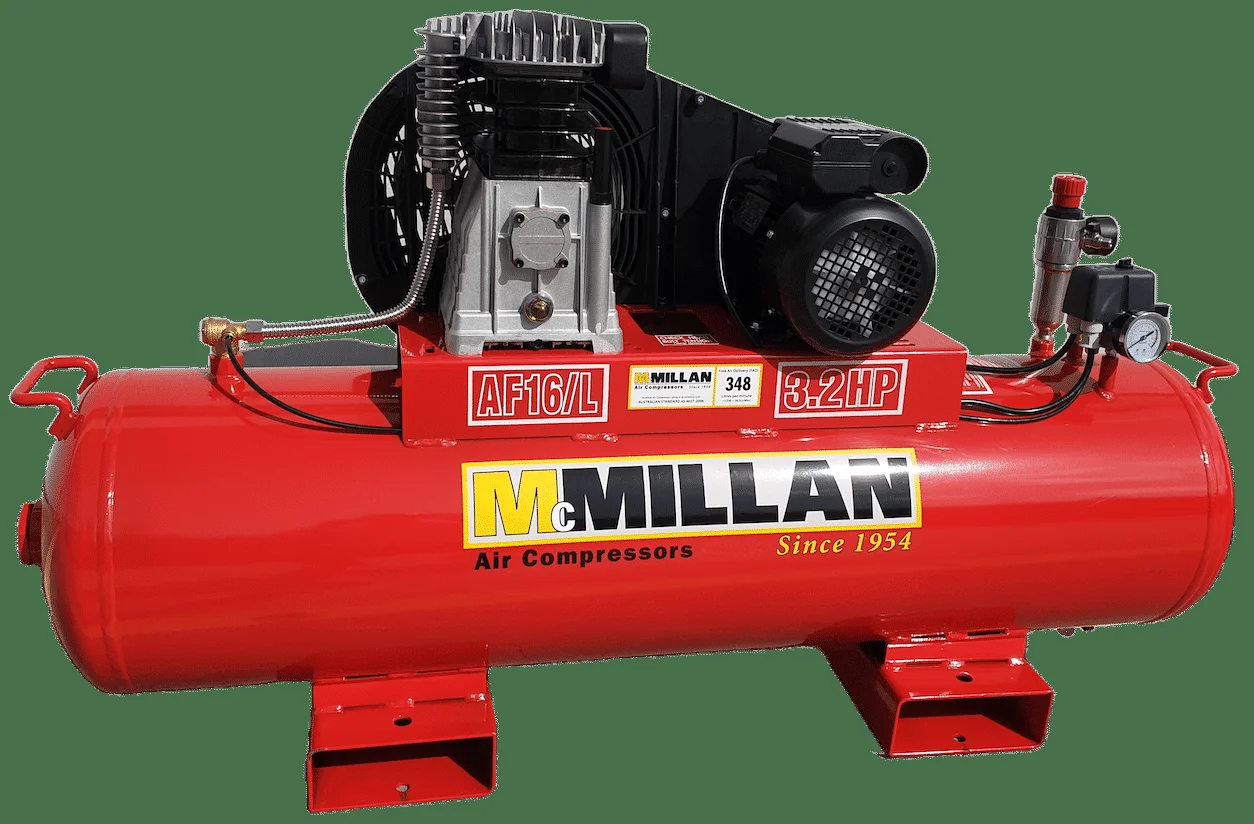

| AF16/L | 348 LPM | 464 LPM | 3.0 | 125L | 15A | B3800 | 140 |
| AF430 | 427 LPM | 490 LPM | 5.0 | 155L | 20A | A49B | 160 |
★ You are viewing the highlighted model. Other models in the AF series are also available.
