Peerless

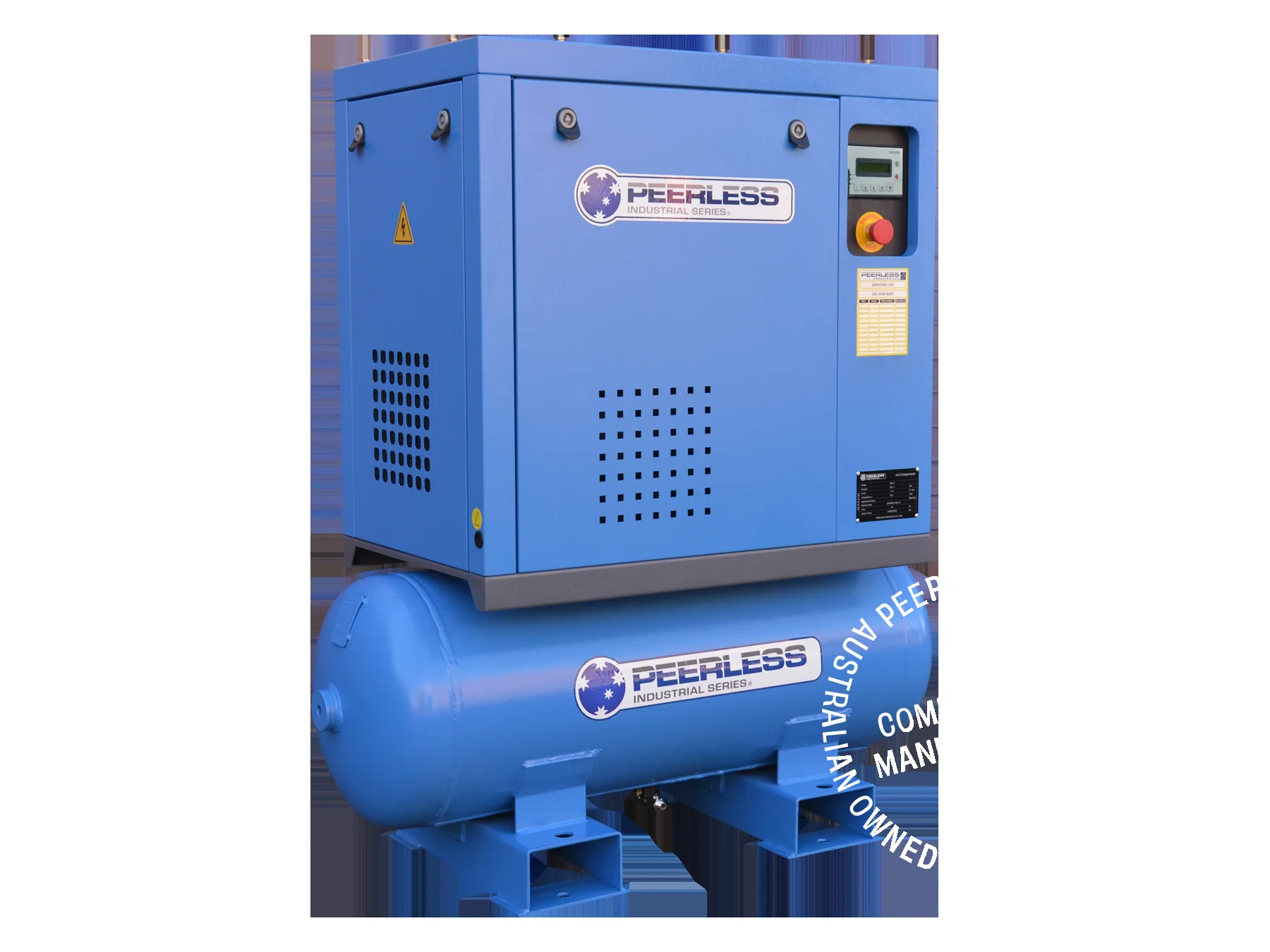

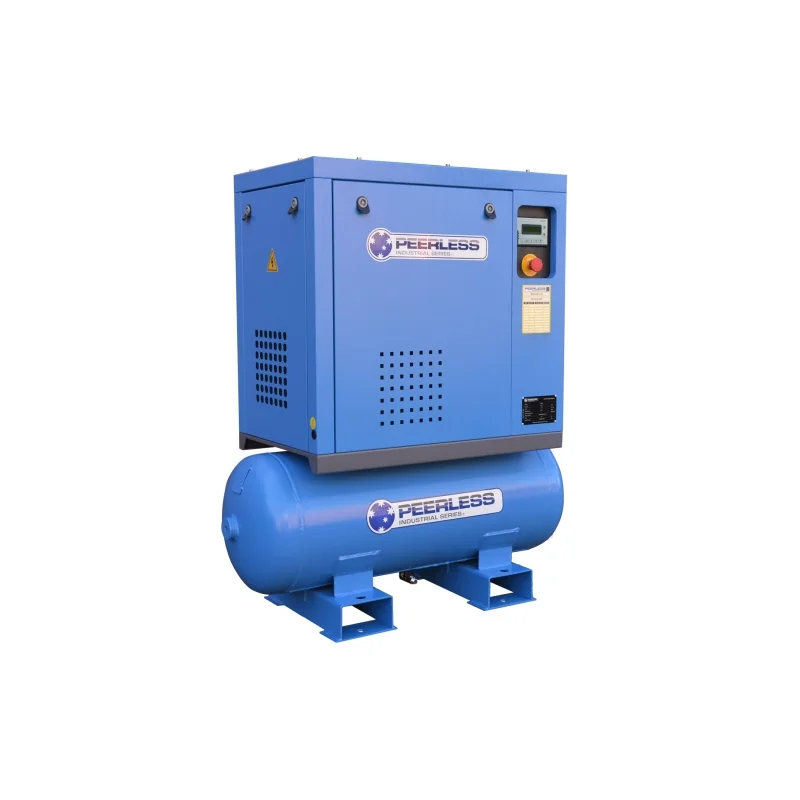

Peerless HQE5.5VSHP-110 Variable Speed Rotary Screw Compressor — 5.5HP 3-Phase
Part No: HQE5.5VSHP-110
The Peerless HQE5.5VSHP-110 is a variable speed rotary screw compressor delivering 500 LPM of free air at 8 Bar (116 PSI) from a 5.5HP three-phase motor. Its variable speed drive matches air output to demand, saving up to 35% in energy costs compared to fixed-speed units, while the oil-injected air-end provides a 99% duty cycle for near-continuous operation.
500 LPM FAD
5.5 HP / 4 kW
3-Phase
Variable Speed
99% Duty Cycle
110L Tank
8 Bar / 116 PSI
Suitable For
CNC Machines
Panel Shops
Spray Booths
Manufacturing
Automotive Workshops
Continuous Duty Applications
Key Features & Benefits
- Variable speed drive — automatically adjusts motor speed to match air demand, reducing energy consumption by up to 35% compared to fixed-speed compressors.
- 99% duty cycle — oil-injected rotary screw air-end allows near-continuous operation without the duty cycle limitations of piston compressors.
- Electronic controller with live feedback — displays real-time operating data including pressure, temperature, and motor speed, plus service interval monitoring with automatic alerts.
- Compact tank-mount design — 110L receiver tank integrated with the compressor unit, saving floor space in the workshop.
- Quiet operation — rotary screw mechanism produces significantly less noise and vibration than equivalent piston compressors.
- Factory tested minimum 4 hours — every unit is run-tested before shipping to verify performance and reliability.
When to Use This Compressor
Choose the HQE5.5VSHP-110 for workshops and production environments that need high-volume, continuous air supply from a three-phase power connection. The variable speed drive makes it ideal for operations with fluctuating air demand — it ramps down during quiet periods and scales up under load, keeping energy costs proportional to actual use. Suited to 1–2 person workshops running CNC machines, spray booths, panel shops, and automotive hoists simultaneously.
Authorised Australian Dealer — This product is sourced directly from Peerless Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Free Air Delivery (FAD) | 500 LPM (17.7 CFM) |
| Motor Power | 5.5 HP / 4 kW |
| Power Supply | Three-Phase / 15A |
| Working Pressure | 8 Bar / 116 PSI |
| Drive Type | Direct Drive, Oil-Injected |
| Duty Cycle | 99% |
| Tank Capacity | 110 Litres |
| Dimensions (L×W×H) | 1100 × 530 × 1230 mm |
| Weight | 210 kg |
