Description
Kincrome

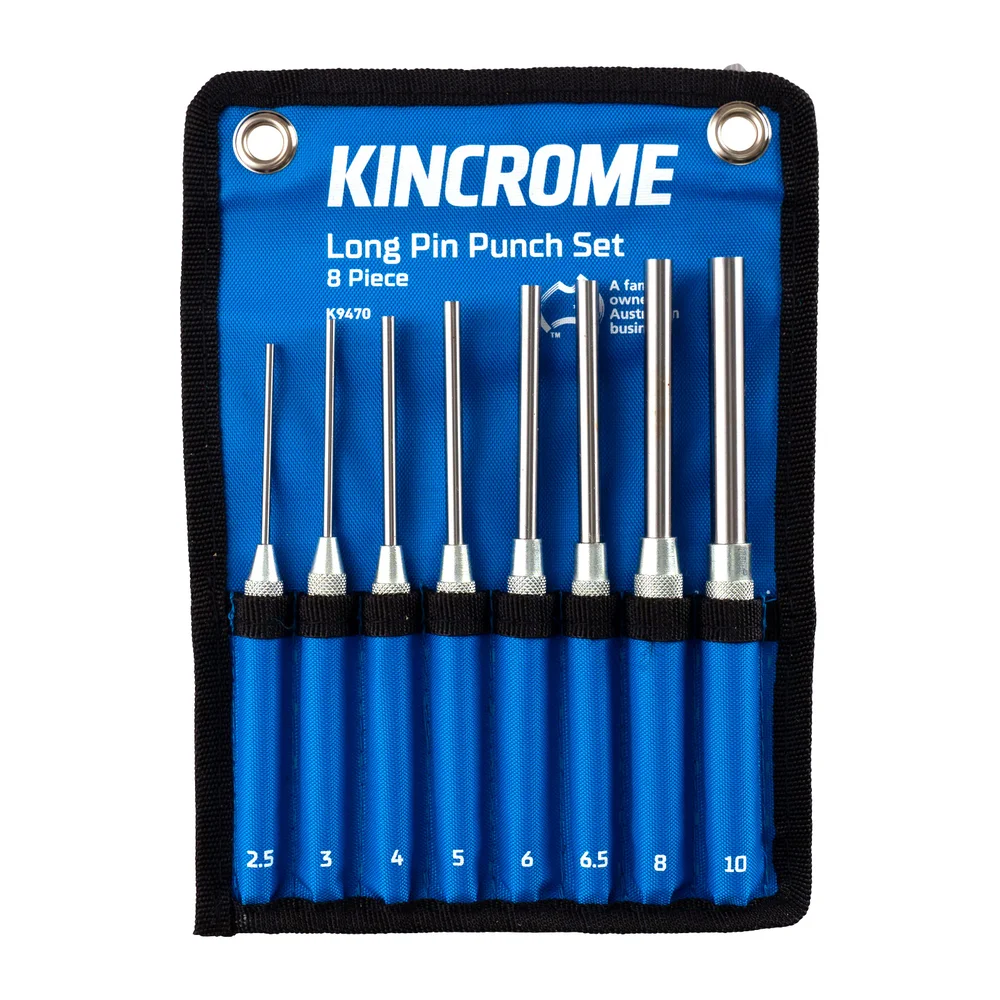

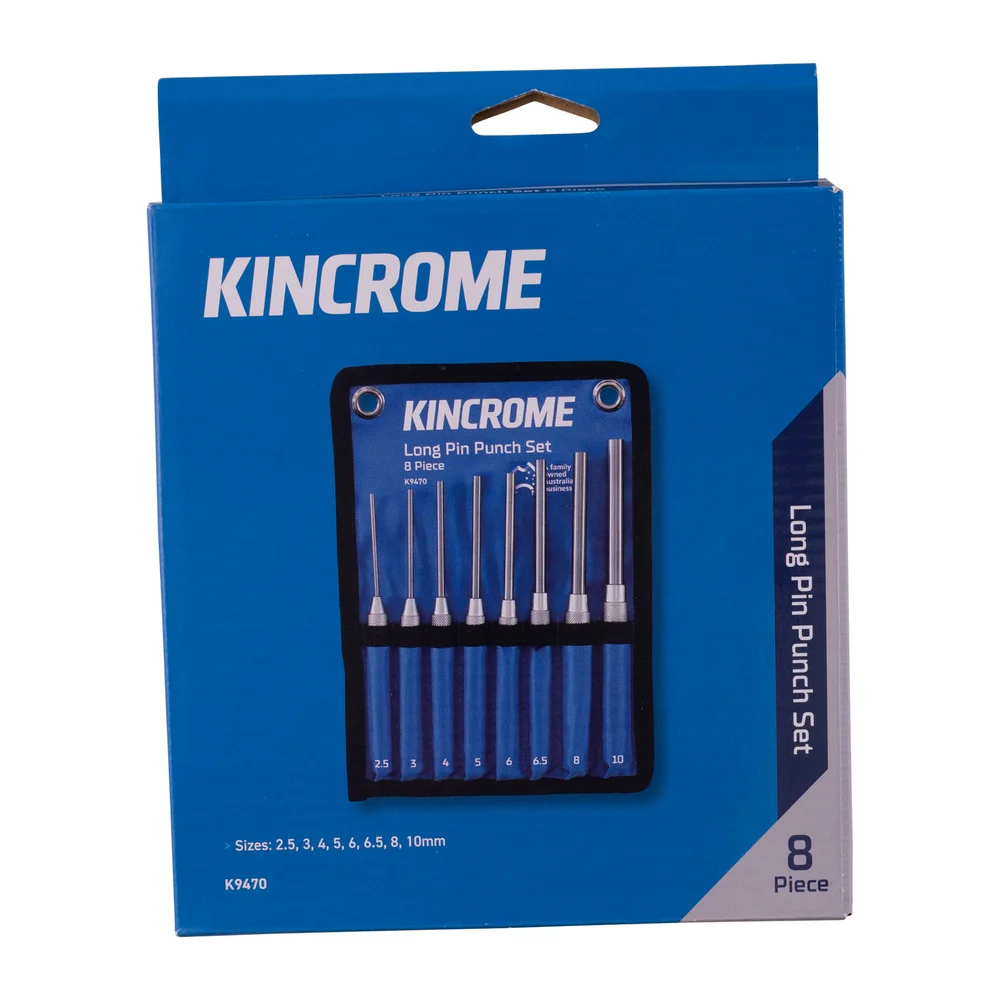

Kincrome Long Pin Punch Set 8 Piece
Part No: K9470 | Barcode: 9312753096188 | Brand: Kincrome
The Kincrome K9470 is an 8-piece long pin punch set in hardened and tempered Chrome Vanadium steel. The two-piece construction gives high bending resilience to drive out pins and fasteners from deep bores, supplied in a storage wallet.
8 Piece Set
Chrome Vanadium Steel
Long Reach
2-Piece Construction
Storage Wallet
Key Features & Benefits
- Two-piece construction — high bending resilience; far less prone to breaking or bending than one-piece punches.
- Hardened & tempered Chrome Vanadium steel (Cr-V) — tough but not brittle for repeated driving.
- Parallel pin tip — drives pins, rivets and fasteners straight through where larger punches can’t reach.
- Knurled finish — maximises grip and avoids movement while the punch is being struck.
When to Use This Long Pin Punch Set
Choose the K9470 set when you regularly drive out pins and fasteners across a range of sizes from deep bores and want a graduated set in one wallet. Pick individual long pin punches if you only need one or two sizes.
Pro Tip: Start the pin moving with a taper or starter punch first, then switch to the matching pin punch to drive it the rest of the way — the parallel pin won’t wedge or mushroom in the bore.
Authorised Australian Dealer — This product is sourced directly from Kincrome Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Pin Size | Overall Length |
|---|---|---|
| K9462 | 2.5mm | 148mm |
| K9463 | 3mm | 152mm |
| K9464 | 4mm | 155mm |
| K9465 | 5mm | 159mm |
| K9466 | 6mm | 161mm |
| K9467 | 6.5mm | 164mm |
| K9468 | 8mm | 168mm |
| K9469 | 10mm | 170mm |
| K9470 ★ | Set — 8 Piece (2.5-10mm) | — |
★ You are viewing the highlighted variant. Other sizes/variants in this series are also available.
