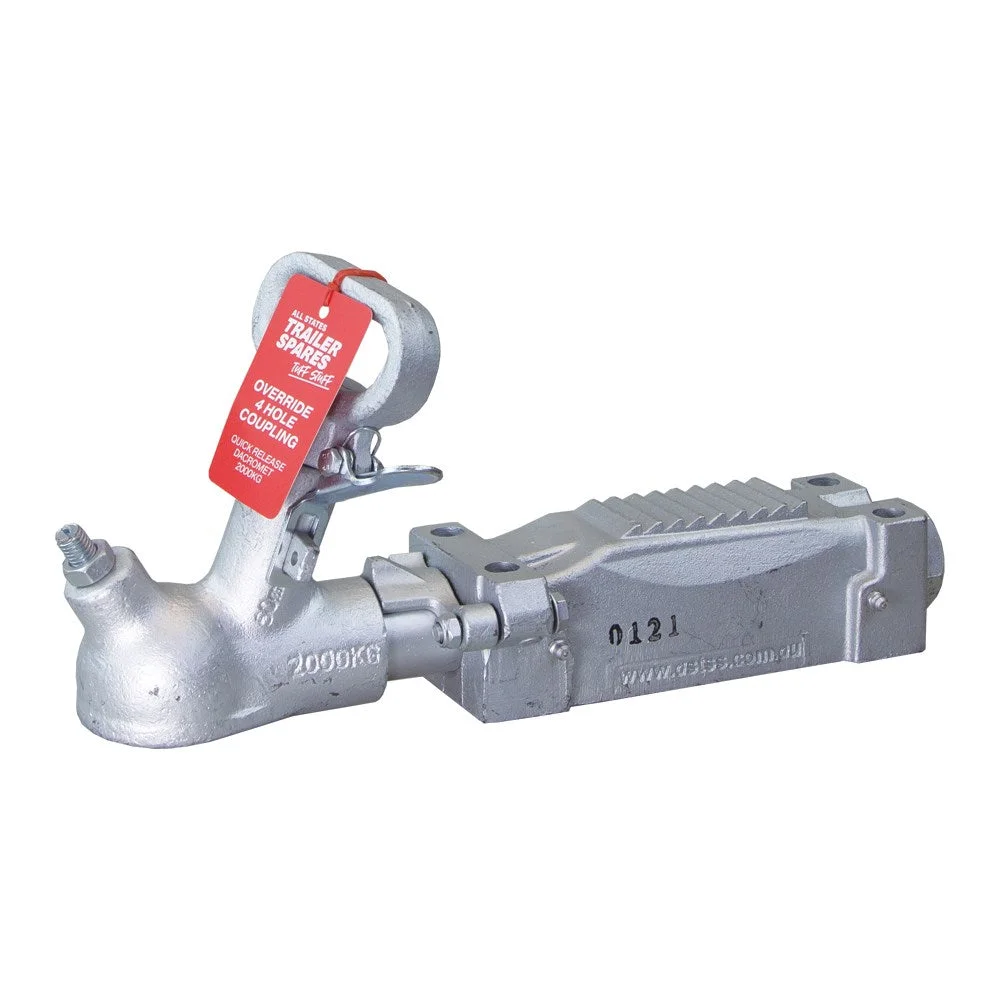

50mm Override Coupling — 4 Hole, 2 Tonne Rated, Dacromet Finish

Part No: R1809A  |  Barcode: 9343965000113  |  Series: ASTSS Couplings

Override (surge brake) coupling for 50mm tow ball rated to 2 tonnes. Features a solid shaft and 4 bolt hole mounting pattern with Dacromet corrosion-resistant finish. Designed for trailers with hydraulic surge brake systems.

Suitable For

Key Features & Benefits

• Override (surge) brake mechanism — when the tow vehicle brakes, the trailer pushes forward on the coupling which activates the hydraulic master cylinder, applying the trailer brakes proportionally to deceleration force.
• Solid shaft construction — heavy-duty solid shaft transfers the surge force reliably to the brake master cylinder for consistent, predictable braking.
• 2 tonne rated — rated to 2,000kg gross trailer mass (GTM), suitable for medium duty trailers including boat trailers and car carriers with hydraulic disc brakes.
• Dacromet finish — superior corrosion resistance compared to standard zinc plating, especially important for boat trailer couplings exposed to salt water.
• 4 hole mounting — four-bolt pattern provides a stronger, more secure mounting to the drawbar than 2 or 3 hole patterns.

When to Use This Coupling

Product Specifications

★ You are viewing the highlighted variant. Standard couplings for non-surge-brake trailers are also available.
