Allstate Trailer Spares

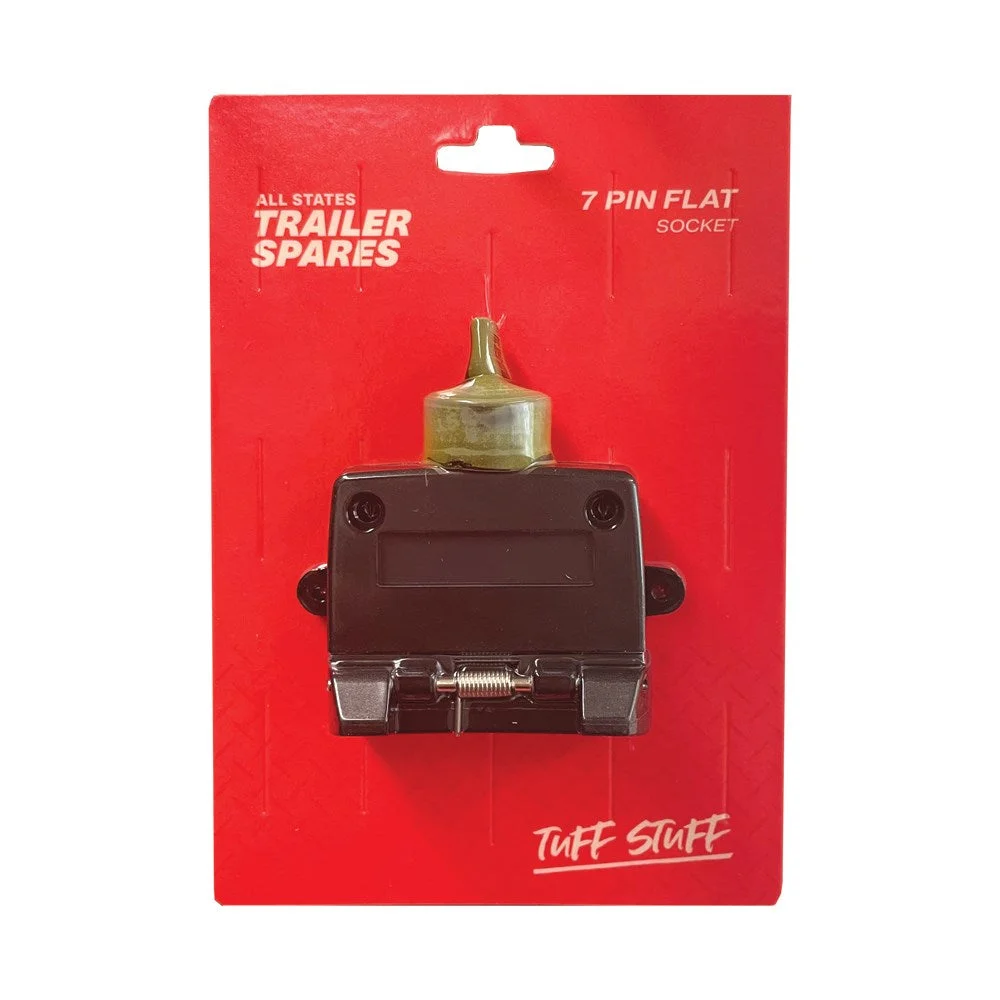

7 Pin Flat Trailer Socket (Female)
Part No: R4130 | Barcode: 9343965000014 | Series: ASTSS Electrical
Standard Australian 7 pin flat trailer socket (female connector) for mounting on the trailer. Connects to the matching 7 pin flat plug on the tow vehicle to provide power for trailer lights, indicators, brakes and number plate illumination.
7 Pin Flat
Female Socket
Trailer Mount
Australian Standard
Suitable For
Trailers
Caravans
Boat Trailers
Box Trailers
Key Features & Benefits
- Australian standard 7 pin flat — the most common trailer connector type in Australia, providing connections for left indicator, right indicator, tail lights, brake lights, earth, reverse lights and number plate light.
- Female socket (trailer side) — mounts on the trailer drawbar and mates with the R4129 male plug from the tow vehicle wiring harness.
- Heavy duty construction — designed to withstand vibration, road spray and the mechanical stress of repeated coupling and uncoupling.
- Screw terminal connections — wires connect to clearly labelled screw terminals inside the socket for easy installation and fault-finding.
When to Use This Socket
Fit the R4130 socket when wiring a new trailer or replacing a damaged connector. The 7 pin flat is the standard for light trailers in Australia. If you also need the matching vehicle-side plug, see the R4129. For heavier trailers requiring electric brakes, a 12 pin connector may be needed instead.
Authorised Australian Dealer — This product is sourced directly from Allstate Tooling Solutions Australia and is backed by full Australian manufacturer warranty and local support.
