Alpha
Alpha SC-1AL Ball Nose Aluminium Cut Carbide Burr — 1/4″ Aluminium Cut
Part No: SC-1AL | Barcode: 9342386017793 | Shape: SC-AL — Ball Nose (Aluminium Cut)

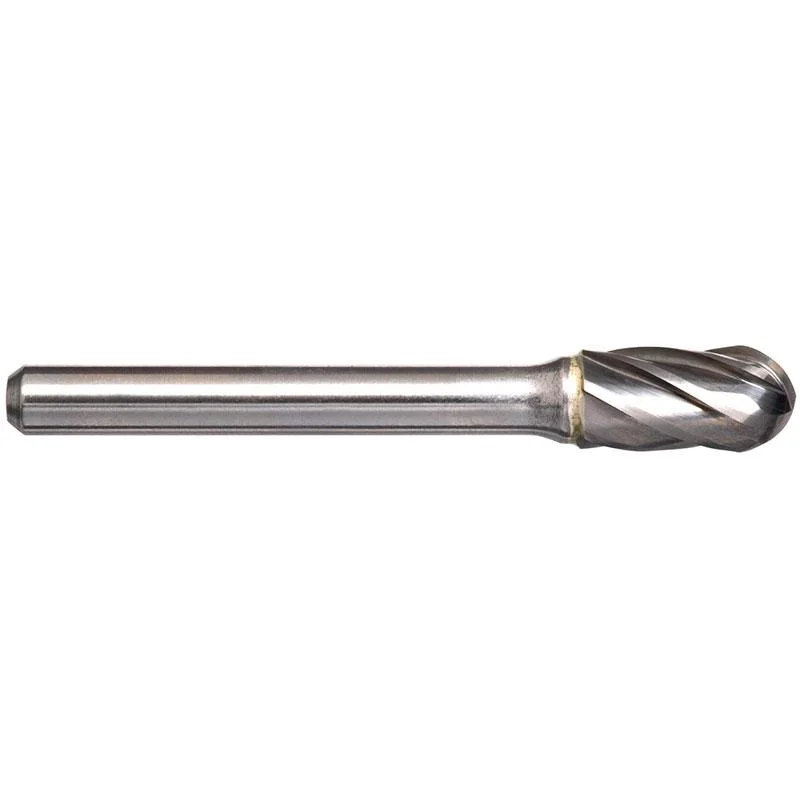

The Alpha SC-1AL is a 1/4″ (6.35mm) ball nose (cylindrical ball end) aluminium cut carbide burr with a 5/8″ flute length and 1/4″ shank. CNC precision-ground from premium tungsten carbide for chatter-free material removalon aluminium, brass, and soft non-ferrous metals.
1/4″ Head Dia.
Aluminium Cut
1/4″ Shank
5/8″ Flute Length
Tungsten Carbide
66,000 RPM Max
Suitable For
Aluminium
Brass
Copper
Zinc Die Cast
Soft Non-Ferrous Metals
Key Features & Benefits
- CNC precision-ground flutes — delivers consistent cutting performance with reduced vibration and longer tool life across repeated use.
- Aluminium Cut flute pattern — single-cut aluminium-specific flute pattern that clears chips rapidly without clogging, designed specifically for aluminium, brass, copper, and soft non-ferrous metals.
- Aluminium-cut flute geometry — wider chip gullets and positive rake angles prevent material build-up and clogging on soft metals.
- Ball nose radius tip — produces smooth concave surfaces and rounded internal corners without sharp edge marks.
- Premium tungsten carbide head — maintains cutting edge hardness at high temperatures, outlasting HSS burrs significantly.
- High-quality alloy steel shank (HRC 45–49) — resists deflection and breakage under load, ensuring safe operation at full RPM in die grinders and rotary tools.
When to Use This Burr
Choose the SC-1AL (1/4″ head) for concave surfaces, fillet radii, rounded channels, and contour blending. The radius tip produces smooth transitions and prevents sharp inside corners. The 1/4″ size is suited for fine detail work and tight clearances. Use with a 1/4″ collet die grinder at speeds up to 66,000 RPM — reduce speed for larger diameters and harder materials for best results.
Authorised Australian Dealer — This product is sourced directly from Alpha Australia and is backed by full Australian manufacturer warranty and local support.
Alpha Ball Nose Aluminium Cut Carbide Burrs — SC-AL Series Aluminium Cut
| Part No. | Head Dia. (in) | Head Dia. (mm) | Flute Length | Overall Length | Shank |
|---|---|---|---|---|---|
| SC-1AL ★ | 1/4″ | 6.35mm | 5/8″ | 2″ | 1/4″ |
| SC-3AL | 3/8″ | 9.53mm | 3/4″ | 2-1/2″ | 1/4″ |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
