Alpha SG-3DC Tree Pointed Carbide Burr — 3/8″ Double Cut
Part No: SG-3DC | Barcode: 9342386017151 | Shape: SG — Tree (Pointed End)

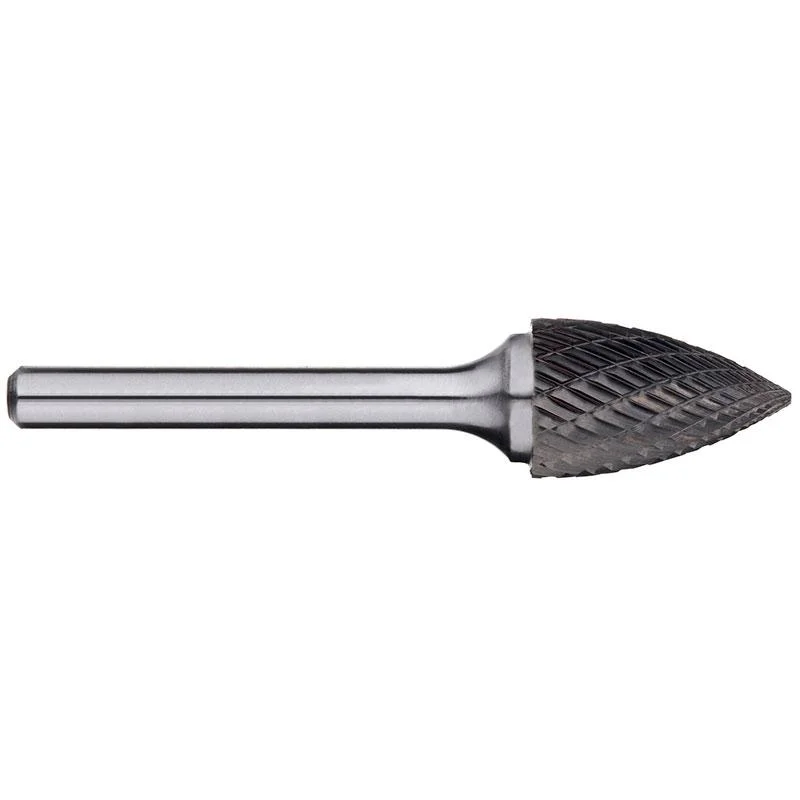

The Alpha SG-3DC is a 3/8″ (9.53mm) tree (pointed end) double cut carbide burr with a 3/4″ flute length and 1/4″ shank. CNC precision-ground from premium tungsten carbide for chatter-free material removal on steel, stainless steel, cast iron, and non-ferrous metals.
3/8″ Head Dia.
Double Cut
1/4″ Shank
3/4″ Flute Length
Tungsten Carbide
66,000 RPM Max
Suitable For
Mild Steel
Stainless Steel
Cast Iron
Tool Steel
Non-Ferrous Metals
Hard Facing Alloys
Key Features & Benefits
- CNC precision-ground flutes — delivers consistent cutting performance with reduced vibration and longer tool life across repeated use.
- Double Cut flute pattern — double-cut cross-flute pattern that produces finer chips than single-cut, resulting in a smoother surface finish with less chatter on ferrous metals.
- Tree shape with pointed end — tapered body for cavity access with a sharp tip that reaches into acute internal corners and V-grooves.
- Premium tungsten carbide head — maintains cutting edge hardness at high temperatures, outlasting HSS burrs significantly.
- High-quality alloy steel shank (HRC 45–49) — resists deflection and breakage under load, ensuring safe operation at full RPM in die grinders and rotary tools.
When to Use This Burr
Choose the SG-3DC (3/8″ head) for die work, mould cavities, and accessing sharp internal corners. The pointed tip reaches into tight V-grooves and acute angles that radius-end burrs cannot access. The 3/8″ size is suited for medium-duty shaping and edge preparation. Use with a 1/4″ collet die grinder at speeds up to 66,000 RPM — reduce speed for larger diameters and harder materials for best results.
Authorised Australian Dealer — This product is sourced directly from Alpha Australia and is backed by full Australian manufacturer warranty and local support.
Alpha Tree Pointed Carbide Burrs — SG Series Double Cut
| Part No. | Head Dia. (in) | Head Dia. (mm) | Flute Length | Overall Length | Shank |
|---|---|---|---|---|---|
| SG-1DC | 1/4″ | 6.35mm | 5/8″ | 2″ | 1/4″ |
| SG-3DC ★ | 3/8″ | 9.53mm | 3/4″ | 2-1/2″ | 1/4″ |
| SG-5DC | 1/2″ | 12.70mm | 1″ | 2-3/4″ | 1/4″ |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
