Carbitool

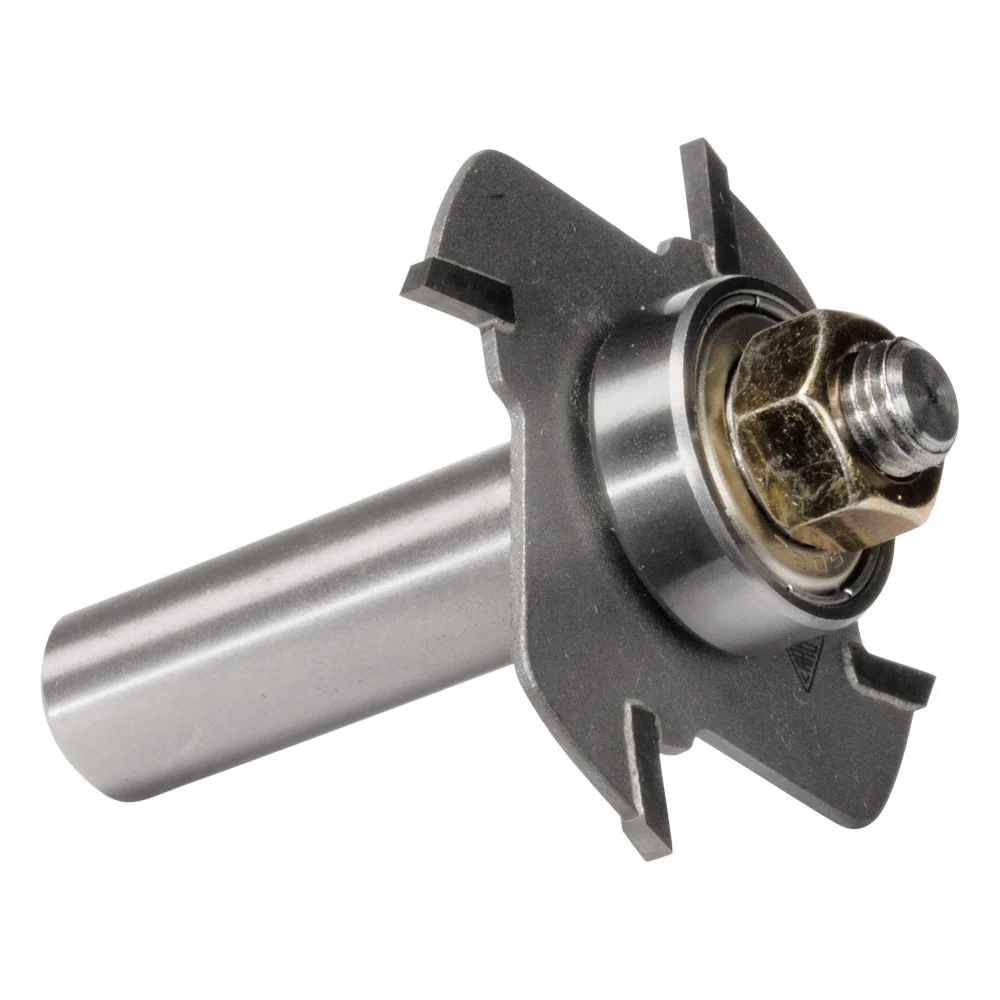

Carbitool TA700-4.8MB Slotting Cutter Assembly — 3/16″ (4.8mm) Kerf, 1/2″ Shank
Part No: TA700-4.8MB | Barcode: 9314350005761
Carbitool TA700-4.8MB is a 4-flute carbide-tipped slotting cutter assembly with an integrated top-mounted ball bearing guide. The 4.8mm kerf cuts clean, consistent slots in timber and sheet material for biscuit joinery, T-slot tracks, splines, and panel grooves. Supplied fully assembled on a 1/2″ shank arbor with the bearing pre-fitted.
4 Flute Carbide Tipped
3/16″ (4.8mm) Kerf
Ball Bearing Guide
1/2″ Shank
Pre-Assembled
Made in Australia
Suitable For
Solid Timber
Plywood & MDF
Particleboard
Laminated Panels
Key Features & Benefits
- 4-flute carbide-tipped cutter — ground with alternating tooth geometry for clean, chip-free slot walls at full depth of cut.
- Integrated ball bearing guide — the top-mounted bearing rides against the workpiece edge, controlling depth of cut and eliminating guide-fence setup on profile work.
- 4.8mm kerf — precision-ground to industrial tolerance for consistent slot width across the run, critical for biscuit and spline fits.
- 1/2″ shank arbor — heavy-duty TA-series arbor resists deflection under load, keeping the cutter true through dense hardwoods and sheet stacks.
- Pre-assembled — arbor, cutter, bearing, and shim washers supplied fitted and ready to run — no separate components to order.
- Australian-made — manufactured by Carbitool in Victoria to strict dimensional tolerances, backed by full manufacturer support.
Common Applications
Use the 4.8mm cutter for T-track grooves, biscuit slots, panel-backing rebates, drawer-bottom grooves, and spline joinery. The bearing guide lets you profile curved edges without a template, and the 1/2″ shank handles full-depth passes in hardwood without chatter. Pair with a variable-speed router set between 18,000–22,000 RPM and feed steadily from left-to-right against the workpiece edge.
Authorised Australian Dealer — This product is sourced directly from Carbitool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Manufacturer Part | TA700-4.8MB |
| Construction | 4-Flute Carbide Tipped |
| Kerf Width (Slot Width) | 3/16″ (4.8mm) |
| Cutter Diameter | 2″ (50.8mm) |
| Shank Diameter | 1/2″ (12.7mm) |
| Guide | Top-Mounted Ball Bearing |
| Rotation | Right Hand |
| Max RPM | 22,000 |
| Made In | Australia |
Full Slot Cutter Range — Compare Kerf Widths
Carbitool TA700-MB slotting cutter assemblies — all available kerf widths. The highlighted row marks the variant you are viewing.
| Part No. | Kerf Width | Shank | Guide |
|---|---|---|---|
| TA700-3.2MB | 1/8″ (3.2mm) | 1/2″ (12.7mm) | Ball Bearing |
| TA700-4.0MB | 5/32″ (4.0mm) | 1/2″ (12.7mm) | Ball Bearing |
| TA700-4.8MB ★ | 3/16″ (4.8mm) | 1/2″ (12.7mm) | Ball Bearing |
| TA700-5.5MB | 7/32″ (5.5mm) | 1/2″ (12.7mm) | Ball Bearing |
| TA700-6.4MB | 1/4″ (6.4mm) | 1/2″ (12.7mm) | Ball Bearing |
★ You are viewing the highlighted variant. All TA700-MB assemblies share the same 2″ cutter diameter and 1/2″ shank arbor.
