Description
Hafco

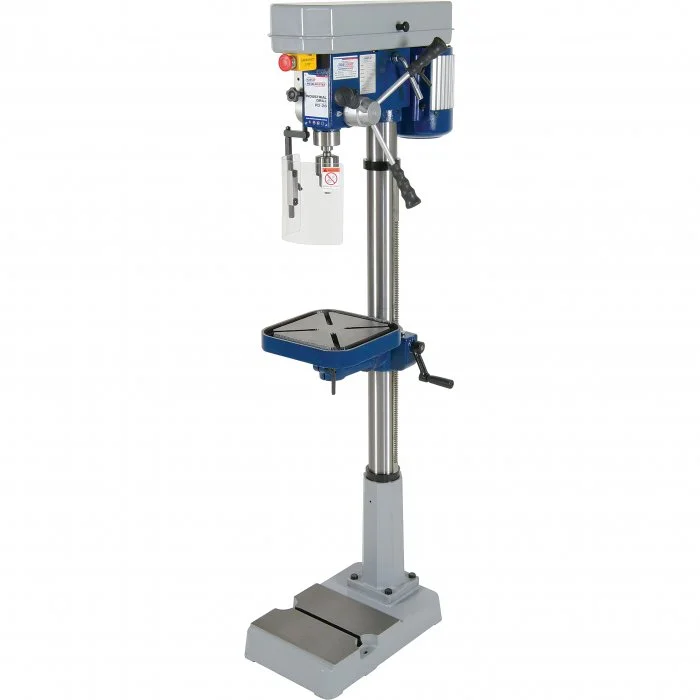

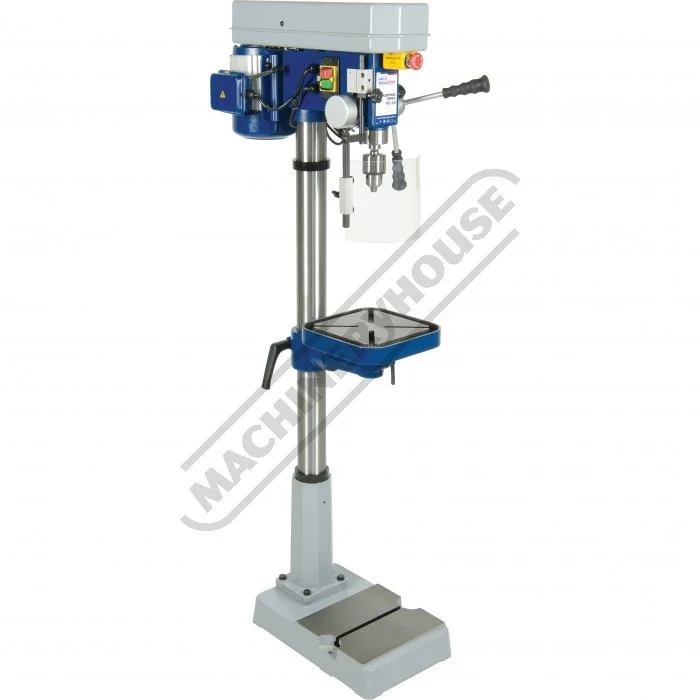

Hafco D160 Industrial Pedestal Drill — PD-28, 23mm
Part No: D160 | Barcode: 9344195165719 | Model: PD-28
The Hafco D160 PD-28 is an industrial-duty pedestal drill with a 23mm drilling capacity and 2MT spindle. Twelve belt-driven speeds and a heavy 98kg cast frame make it the most capable drill in the Hafco belt-drive range for engineering and fabrication work.
23mm Capacity
2MT Spindle
12 Speeds 300–2360rpm
185mm Throat
0.75kW / 1hp
98kg
Key Features & Benefits
- 23mm drilling capacity — the largest in the Hafco belt-drive range, for big holes in solid steel.
- 2MT spindle taper — accepts Morse taper tooling for heavy, accurate drilling.
- 12 spindle speeds (300–2360 rpm) — match speed to material and bit diameter for clean, efficient holes.
- 185mm throat depth — reach further into the workpiece than bench-class machines.
- 98kg cast-iron build — mass and rigidity that absorb vibration during heavy drilling.
- Micro-switch pulley guard — the machine will not start with the belt cover open.
When to Use This Drill Press
The D160 PD-28 is built for fabrication and engineering shops that drill large-diameter holes in steel all day. Choose it over the lighter D592 or D596 when you need maximum 23mm capacity, the deepest throat and the most rigid frame in the range.
Authorised Australian Dealer — This product is sourced directly from Machinery House (Hafco) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Model | Type | Duty | Drill Capacity | Spindle Taper | Speeds | Motor | Weight |
|---|---|---|---|---|---|---|---|---|
| D590 | BD-325 | Bench | Medium | 16mm | 2MT | 12 (280–2380rpm) | 0.75kW / 1hp | 42kg |
| D592 | PD-325 | Pedestal | Medium | 16mm | 2MT | 12 (280–2380rpm) | 0.75kW / 1hp | 55kg |
| D596 | PD-360 | Pedestal | Heavy | 20mm | 2MT | 12 (280–2380rpm) | 0.75kW / 1hp | 66kg |
| D160 ★ | PD-28 | Pedestal | Industrial | 23mm | 2MT | 12 (300–2360rpm) | 0.75kW / 1hp | 98kg |
★ You are viewing the highlighted variant. Other models in this series are also available.
