Scheppach

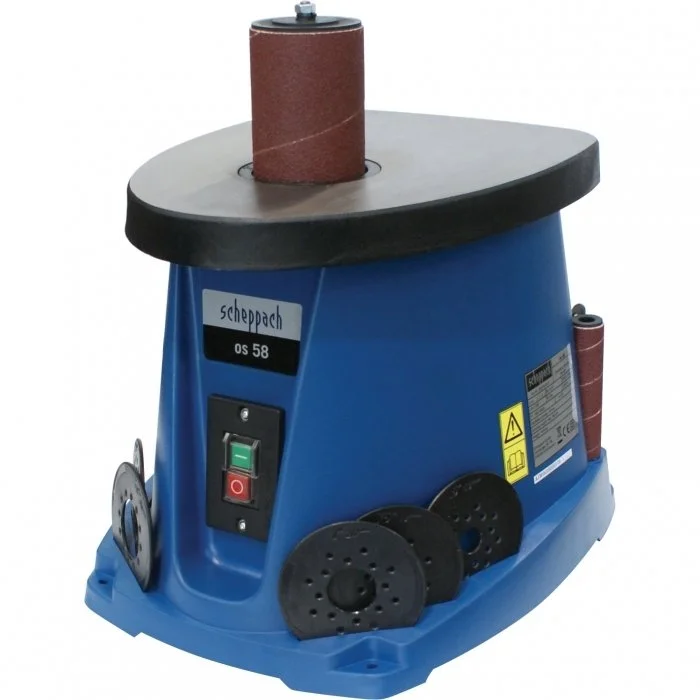

Scheppach W843 Vertical Oscillating Bobbin Sander — OS-58
Part No: W843 | Barcode: 4046664005575 | Model: OS-58
The Scheppach W843 OS-58 is a benchtop oscillating bobbin sander that smooths curves and contours without burning. The 16mm vertical oscillation spreads wear across the full sleeve length for a finer finish and longer abrasive life. Six sleeve sizes cover everything from tight inside curves to broad sweeps.
6 Sleeve Sizes
16mm Oscillation
2000 rpm
370 x 290mm Table
40mm Dust Port
17.3kg
Sanding Sleeve Sizes
1/2″
3/4″
1″
1-1/2″
2″
3″
Key Features & Benefits
- 16mm vertical oscillation — the spindle moves up and down as it spins, spreading wear and preventing burn marks for a smoother finish.
- Six sleeve sizes (1/2″ to 3″) — match the bobbin to the curve, from tight inside radii to gentle contours.
- Cast 370 x 290mm table — flat, stable support for accurate edge sanding.
- 2000 rpm spindle — consistent sanding speed across the sleeve range.
- 40mm dust port — connects to a shop vac or extractor to keep the work area clean.
- Compact 17.3kg benchtop design — easy to store and move in a small workshop.
When to Use This Bobbin Sander
The W843 OS-58 is ideal for woodworkers, cabinetmakers and hobbyists who shape curved and contoured edges. The oscillating action makes it the go-to tool for fairing tight inside curves, scrollwork and template-sanded parts that a flat sander cannot reach.
Authorised Australian Dealer — This product is sourced through Machinery House, the Australian Scheppach distributor, and is backed by full Australian warranty and local support.
Product Specifications
| Specification | Detail |
|---|---|
| Sanding Spindle Sleeve Sizes | 1/2″, 3/4″, 1″, 1-1/2″, 2″ & 3″ |
| Table Size | 370 x 290mm |
| Table Height | 330mm |
| Oscillating Stroke | 16mm |
| Sanding Spindle Speed | 2000 rpm |
| Dust Port Size | 40mm |
| Motor Power | 0.45kW / 0.6hp |
| Voltage | 240V / 10A |
| Floor Space (W x D x H) | 370 x 450 x 440mm |
| Nett Weight | 17.3kg |
