Description
Nitto Kohki

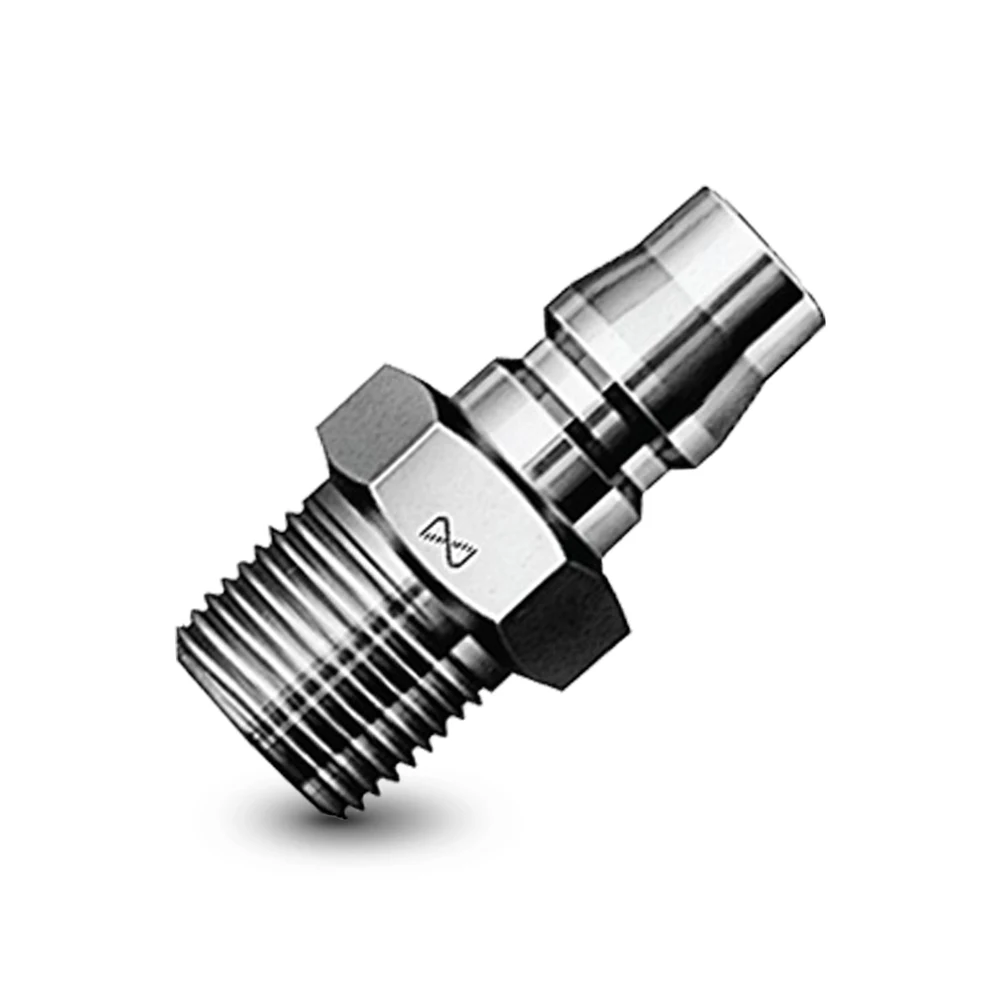

Nitto Hi-Cupla Air Coupling Plug — 3/8″ Male Thread (30PM)
Part No: 30PM | Barcode: 26825 | Series: Hi-Cupla
The Nitto 30PM is a genuine Nitto Kohki Hi-Cupla air coupling plug that threads into a 3/8″ female port on an air tool or manifold and plugs into a matching Hi-Cupla socket. The plug is the male half that clicks into any matching Hi-Cupla socket for safe, one-hand connect and disconnect. Built from heat-treated steel for long workshop life.
Genuine Nitto Kohki
Hi-Cupla
3/8″ Size (30 Series)
3/8″ Male Thread
Heat-Treated Steel
Working Pressure 1.5 MPa
Suitable For
Compressed Air Lines
Air Tools & Nailers
Workshop Air Reticulation
Blow Guns & Tyre Inflators
Key Features & Benefits
- Genuine Nitto Kohki Hi-Cupla — the industry-standard one-touch air coupling used across Australian workshops, so it interchanges with the Nitto-pattern fittings you already own.
- One-hand connect and disconnect — the plug clicks straight into the socket and releases with a single sleeve pull, no spanner or thread tape needed.
- 3/8″ BSPT male thread — threads directly to 3/8″ air outlets, tools and manifolds for a permanent leak-free joint (use thread tape on the parallel face).
- Heat-treated steel construction — critical wear parts are hardened for long service life on busy compressed-air systems.
- 1.5 MPa working pressure — rated to 215 psi, well above typical 100–120 psi shop air, with a generous safety margin.
When to Use This Fitting
Reach for the Nitto 30PM when you need the male half of an air connection — it threads into a 3/8″ female port on an air tool or manifold and plugs into a matching Hi-Cupla socket. Plugs are the parts that travel: fit one to each air tool, blow gun or hose whip so any of them drops into a shared 30-series socket. Pair it with the matching halves in the table below — every Nitto 30-series plug and socket inter-connects regardless of whether the back end is a thread or a hose tail.
Pro Tip: Nitto-pattern is one of several incompatible quick-coupler standards (Nitto, ARO, CEJN and Euro all look similar but will not seat together). Standardising your whole shop on the Nitto Hi-Cupla pattern shown here means any plug mates with any socket across the 20, 30 and 40 sizes.
Authorised Australian Dealer — This product is a genuine Nitto Kohki coupling, backed by full Australian manufacturer warranty and local support from Nitto Kohki Australia.
Product Specifications
| Part No. | Type | Size / Connection |
|---|---|---|
| 20PF | Plug | 1/4″ — 1/4″ Female Thread |
| 20PM | Plug | 1/4″ — 1/4″ Male Thread |
| 20SF | Coupler (Socket) | 1/4″ — 1/4″ Female Thread |
| 20SM | Coupler (Socket) | 1/4″ — 1/4″ Male Thread |
| 30PH | Plug | 3/8″ — 3/8″ Hose Tail |
| 30PM ★ | Plug | 3/8″ — 3/8″ Male Thread |
| 30SH | Coupler (Socket) | 3/8″ — 3/8″ Hose Tail |
| 40PH | Plug | 1/2″ — 1/2″ Hose Tail |
| 40SH | Coupler (Socket) | 1/2″ — 1/2″ Hose Tail |
| 40SM | Coupler (Socket) | 1/2″ — 1/2″ Male Thread |
| RL20PM | Rotary Plug | 1/4″ — 1/4″ Male Thread |
| RL20PFF | Rotary Plug | 1/4″ — 1/4″ Female Thread |
| NC200-30SH | Coupler (Socket) | 3/8″ — 3/8″ Hose Tail |
| L200-30SH | Lock Coupler (Socket) | 3/8″ — 3/8″ Hose Tail |
★ You are viewing the highlighted item. Other plugs, sockets and sizes in the Nitto range are also available — mix and match to suit your compressor, hose and tools.
Browse our wide range of air fittings & piping at Alltools Geelong.
