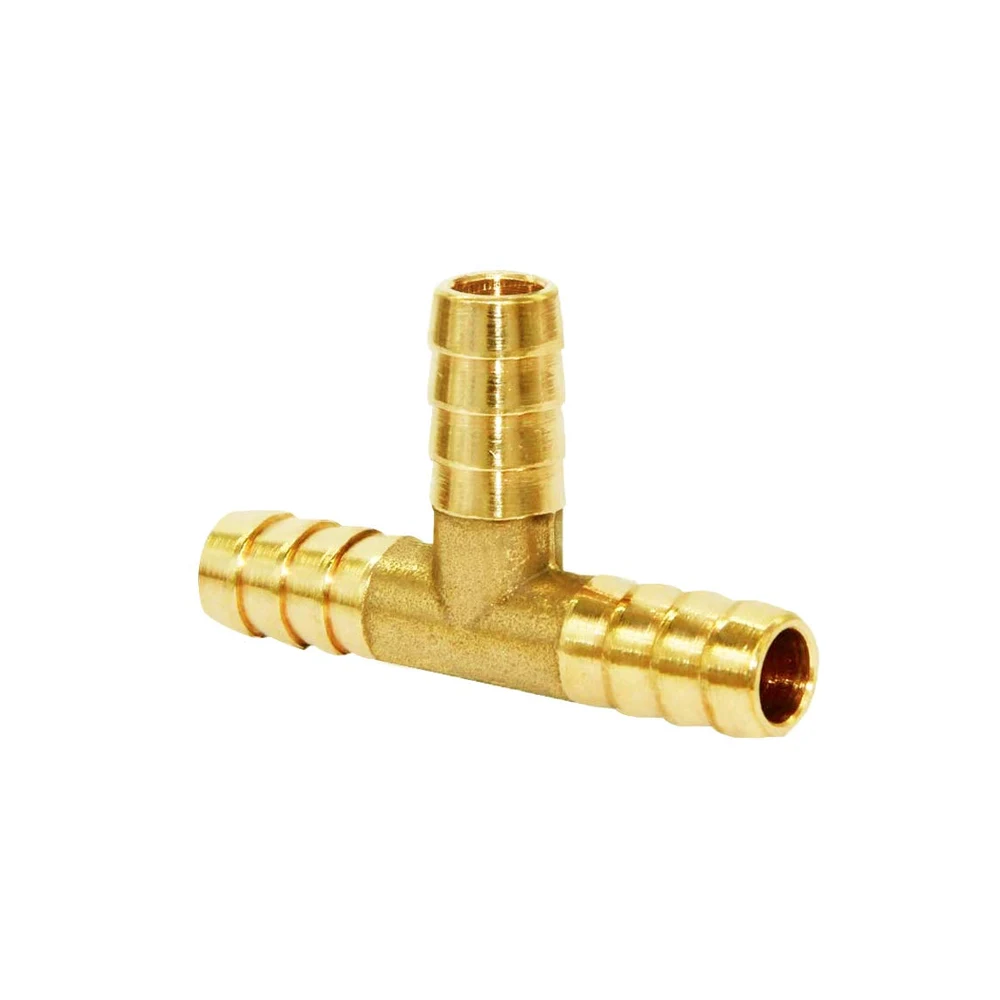

Brass Air Hose Barbed T-Piece — 3/8″ Hose
Part No: 06-014-06 | Barcode: 16956 | Range: Air Fittings & Piping
This brass barbed T-piece joins three runs of 3/8″ push-on air hose, letting you branch or tee a compressed-air line to feed an extra tool or drop. The barbed tail grips the hose under a clamp or ferrule for a firm, leak-resistant joint, and the solid brass body stands up to shop air pressure and general pneumatic work.
3/8″ Hose
T-Piece
Barbed
Brass
Push-On Air Hose
Compressed Air
Suitable For
Compressed Air Lines
Air Tool Plumbing
Compressor & Coupler Connections
Workshop Air Reticulation
Key Features & Benefits
- Three-way barbed tee — splits one air-hose run into two so you can feed an extra tool, drop or coupler without re-plumbing the line.
- Solid brass construction — corrosion resistant and hard wearing for long service life on shop air and general pneumatic work.
- Barbed (ribbed) tail — multiple barbs bite into the hose wall so a hose clamp seals the joint against air pressure and resists pull-off.
When to Use This Fitting
Reach for part 06-014-06 when you need to branch a 3/8″ air-hose run into two — for example to feed a second air tool or an extra drop from one supply line.

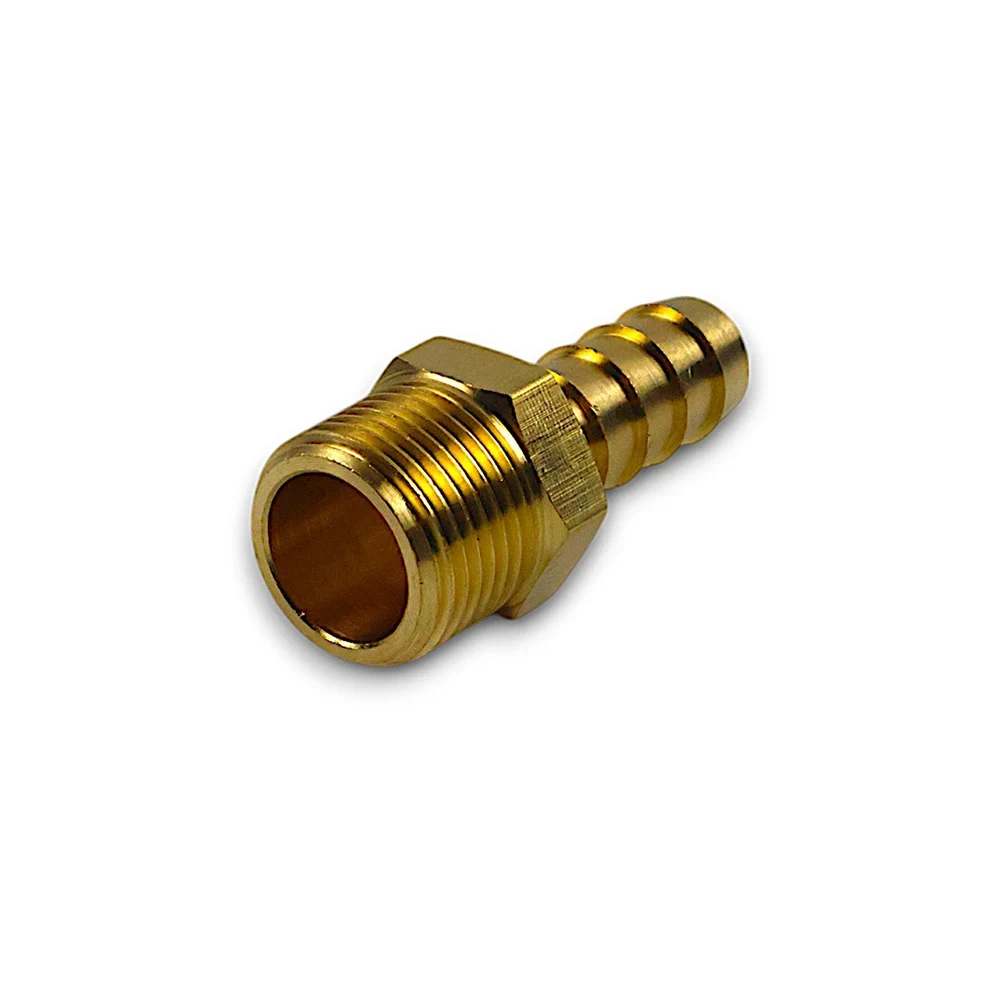

Hose Tail Range — Sizes Available
| Part No. | Hose Size | Thread |
|---|---|---|
| 06-003-0404 | 1/4″ | 1/4″ BSP Male |
| 06-003-0504 | 5/16″ | 1/4″ BSP Male |
| 06-003-0604 | 3/8″ | 1/4″ BSP Male |
| 06-003-0606 | 3/8″ | 3/8″ BSP Male |
| 06-003-0608 | 3/8″ | 1/2″ BSP Male |
| 06-003-0804 | 1/2″ | 1/4″ BSP Male |
| 06-003-0806 | 1/2″ | 3/8″ BSP Male |
| 06-003-0808 | 1/2″ | 1/2″ BSP Male |
| 06-003-1212 | 3/4″ | 3/4″ BSP Male |
| 06-007-06 | 3/8″ | Barbed (no thread) |
| 06-007-08 | 1/2″ | Barbed (no thread) |
| 06-010-0404 | 1/4″ | 1/4″ BSP Male |
| 06-010-0604 | 3/8″ | 1/4″ BSP Male |
| 06-014-06 ★ | 3/8″ | Barbed (no thread) |
| 29-1259 | 1/2″ | 1/2″ BSP Male |
| 29-1262 | 3/8″ | 3/8″ BSP Female |
| 31-1119 | 3/8″ | 3/8″ BSP Male |
★ You are viewing the highlighted fitting. Other hose sizes and thread combinations in this range are also available.
