Description
Ryco

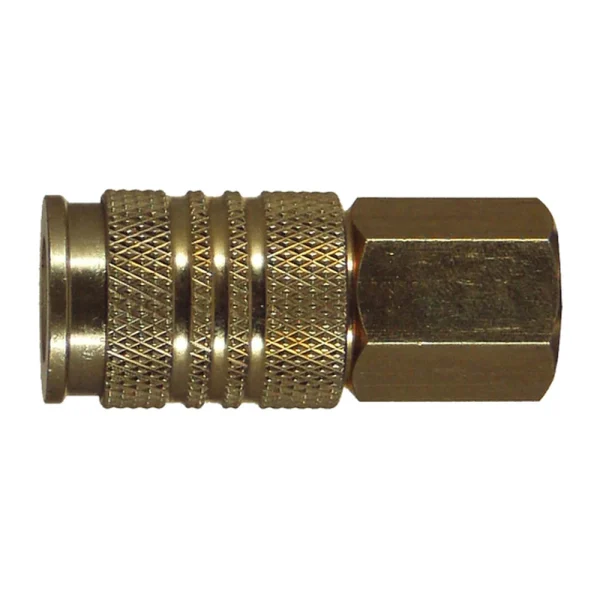

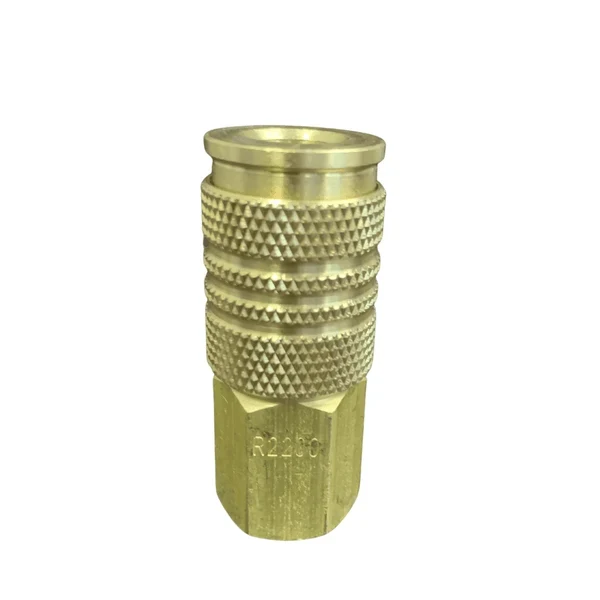

Ryco Air Coupler Socket — 1/4″ BSP Female (08-SR200F4)
Part No: 08-SR200F4 | Barcode: 16928 | Profile: Ryco
The Ryco 08-SR200F4 is a Ryco air coupler (the valved socket half of a quick-connect air line) with a 1/4″ BSP Female back end, used to connect and disconnect air tools, hoses and blow guns in one hand on compressed-air systems. The socket carries the automatic shut-off valve, so air stops the instant a plug is pulled — no air loss and no whipping hose. Profile: Ryco.
Ryco
Coupler (Socket)
1/4″ BSP Female
1/4″ Size
Auto Shut-Off Valve
One-Hand Connect
Suitable For
Compressed Air Lines
Air Tools & Nailers
Workshop Air Reticulation
Blow Guns & Tyre Inflators
Key Features & Benefits
- Ryco profile — Ryco is the long-established Australian airline coupling pattern, so this fitting interchanges with the Ryco-pattern plugs, couplers and adaptors already running in most Australian workshops — dropping straight into your existing air system.
- Automatic shut-off valve — air is cut off the moment a plug disconnects, stopping pressure loss and dangerous hose whip.
- One-hand quick connect — push a matching plug in to lock, pull the sleeve back to release, so tools swap over in seconds.
- 1/4″ BSP Female thread — screws directly to compressor outlets, manifolds, FRLs and air-tool inlets.
- Genuine air-line componentry — matched to the rest of the Ryco airline coupling range for reliable sealing under shop air pressure.
When to Use This Fitting
Reach for the Ryco 08-SR200F4 when you need the valved socket half of a Ryco air connection — fit it to your fixed points (compressor outlet, wall reticulation, hose reels and FRL units) so any matching Ryco plug can be connected one-handed. Pair it with the matching Ryco-pattern plugs and adaptors in the range below; the 1/4″ BSP Female back end lets you tie it into your existing thread or hose run.
Pro Tip: Air-coupler profiles are not interchangeable — Ryco, Cejn/Euro, Nitto and ARO patterns all look similar but will not seat together. Keep your whole shop on the one Ryco pattern so every plug mates with every socket; if you run mixed profiles, use a clearly labelled adaptor at the change-over point.
Authorised Australian Dealer — This is a genuine Ryco air-line fitting, backed by Australian supply and local support from Ryco Australia.
Product Specifications
| Part No. | Brand / System | Type | Connection |
|---|---|---|---|
| 08-SR20M4 | Ryco / Ryco SR | Adaptor | 1/4″ BSP Male |
| 08-SR20F4 | Ryco / Ryco SR | Adaptor | 1/4″ BSP Female |
| 08-SR20T6 | Ryco / Ryco SR | Adaptor | 3/8″ Hose Tail |
| 08-SR200F4 ★ | Ryco / Ryco SR200 | Coupler (Socket) | 1/4″ BSP Female |
| 08-SR500F4 | Ryco / Ryco SR500 | Coupler (Socket) | 1/4″ BSP Female |
| 08-J310T6 | Ryco / Ryco 310 | Coupler (Socket) | 3/8″ Hose Tail |
| 08-J31M | Ryco / Ryco 310 | Adaptor | 1/4″ BSP Male |
| 09.0815 | Ryco / Ryco | Coupler (Socket) | 1/4″ BSP Male |
| 09.0845 | Ryco / Ryco | Coupler (Socket) | 3/8″ Hose Tail |
| 13.0965 | Ryco / Ryco 310 | Coupler (Socket) | 1/4″ BSP |
| 13.0980 | Ryco / Ryco | Coupler (Socket) | 1/4″ BSP Male |
| 31-1111 | Ryco / Ryco 310 | Adaptor (Plug) | 1/4″ BSP |
★ You are viewing the highlighted item. Other Ryco-pattern couplers, plugs and adaptors are also available — mix and match within the same profile.
Browse our wide range of air fittings & piping at Alltools Geelong.
