Bahco

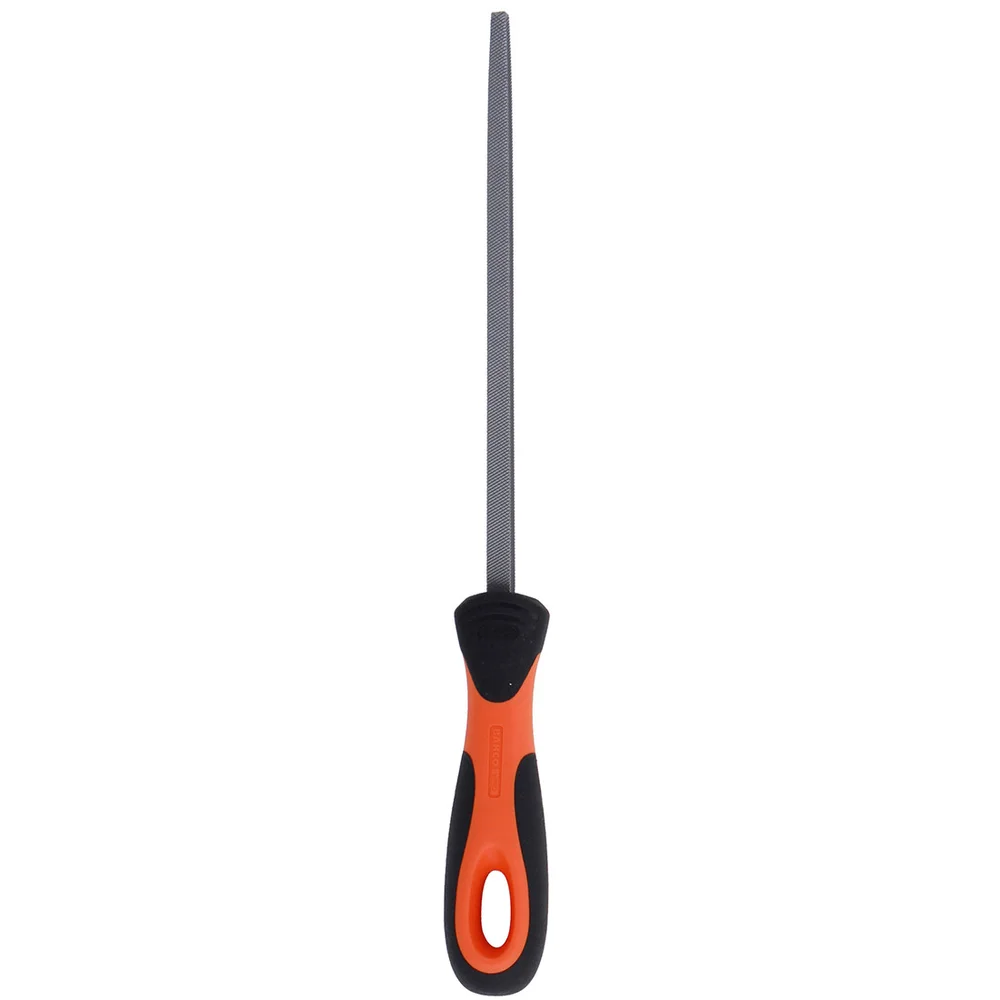

Bahco Square Hand File 200mm Bastard 1-160-08-1-2
Part No: 1-160-08-1-2 | Barcode: 7311518000394 | Range: Bahco ERGO Engineering Files
Bahco 1-160-08-1-2 square hand file in bastard cut (~26 TPI per 25mm (coarse)) for filing square holes, keyways and slots. Double-cut on all four faces with soft-grip ERGO handle for long filing sessions.
200mm Bastard Cut ~26 TPI per 25mm (coarse) ERGO Handle Hardened Steel
Key Features & Benefits
- 4 double-cut faces — files accurate square holes, slots and keyways that a flat file can’t reach without rocking.
- Bastard cut (~26 TPI per 25mm (coarse)) — suited to rapid stock removal on fresh workpieces before finer finishing.
- Bahco ERGO™ soft-grip handle — reduces fatigue during the repeated short strokes typical of keyway and slot work.
- Tapered profile — tip is narrower than the butt so the file enters tight pilot holes and opens them up progressively.
- 200mm working length — the most popular 200mm size for general workshop filing on small to medium parts.
When to Use
The right file for squaring up rectangular holes in steel plate, cleaning up broached keyways on shafts and opening up square mounting holes in fabrication work. Millwrights, fitters and locksmiths use square files where any rounded profile would ruin the corner detail.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Bahco Australia, with local support and service.
Technical Specifications & Range
| Part No. | Length | Cut |
|---|---|---|
| 1-160-06-1-2 | 150 mm | Bastard |
| 1-160-08-1-2 ★ | 200 mm | Bastard |
| 1-160-10-1-2 | 250 mm | Bastard |
★ You are viewing this variant.
