Harlingen

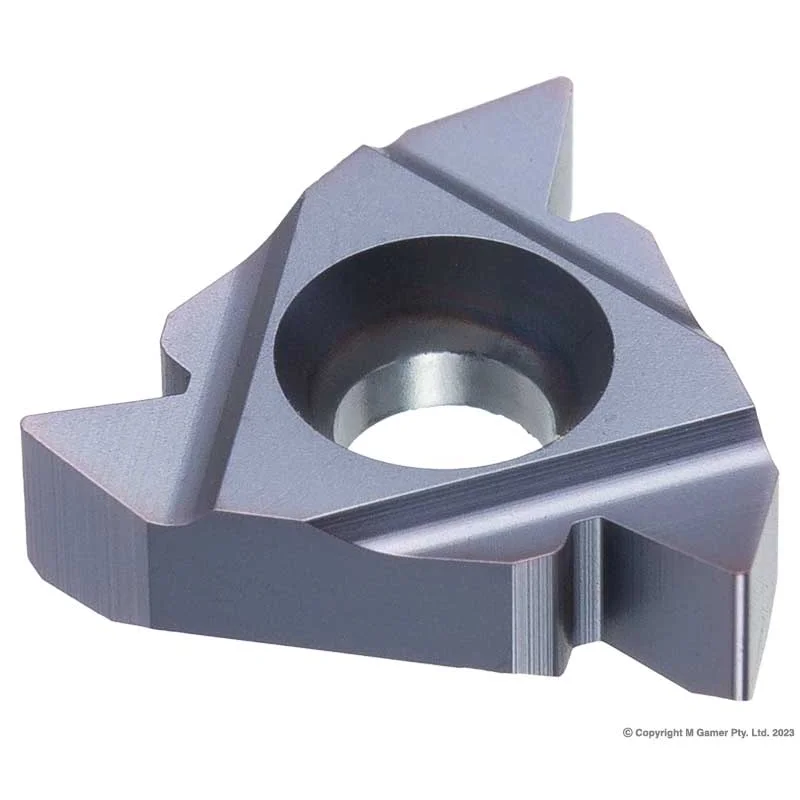

Harlingen 16ERAG60 60° External Threading Insert — Pack of 10
Part No: 16ERAG60 | Barcode: 9346967106661 | Brand: Harlingen
Pack of 10 carbide external threading inserts cut to a 60° thread profile (Unified, Metric, BSP) in TiAlN-coated micro-grain carbide. Right-handed for use on standard external threading bars, covering 0.5-3.0mm pitch.
60° External Thread
0.5-3.0mm Pitch
Right Handed
TiAlN Coated
9.525mm IC
Pack of 10
Suited For
Cast Iron
General Purpose Steel
Stainless Steel
Key Features & Benefits
- 60° external thread profile — Cuts standard 60° threads — UN/UNF, ISO Metric and BSP all share the same 60° angle, so one insert covers most thread types.
- 0.5 to 3.0mm pitch range — Single insert handles fine through to coarse pitches — no need for separate inserts per thread.
- Right-handed cutting direction — Standard configuration for external threading bars; matches the spindle direction on every standard lathe.
- TiAlN-coated micro-grain carbide — Hard coating extends edge life when threading abrasive stainless and hardened steels.
- 9.525mm inscribed circle — Standard 16-size insert seat — fits any holder rated for 16ER (external) or 16IR (internal) format.
When to Use This Insert
Choose 16ERAG60 when threading on the lathe at any standard 60° pitch (external threads) in steel, stainless or cast iron. External-only — pair with the correct threading bar (16ER for external, 16IR for internal).
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Part No. | Threading | Pitch Range | Pack Qty |
|---|---|---|---|
| 16ERAG60 ★ | External 60° | 0.5–3.0 mm | 10 |
| 16IRAG60 | Internal 60° | 0.5–3.0 mm | 10 |
