Industrial Fittings Sales

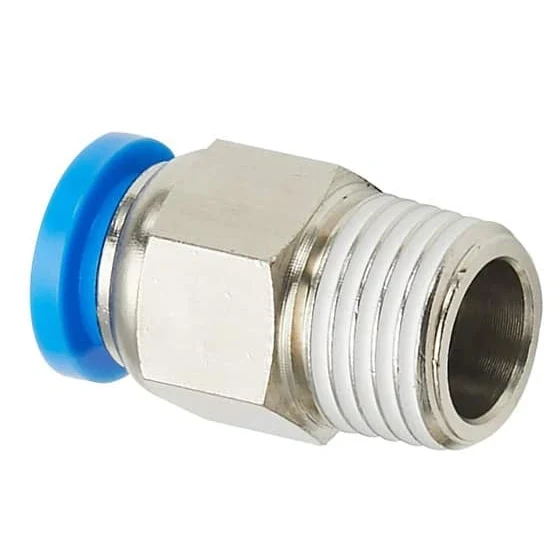

Push-In Male Straight Connector 12mm to 1/4″ BSP
Part No: 20-M003-1204 | Range: Air Fittings & Piping
This push-in male straight connector joins 12mm OD nylon or polyurethane air tube to a 1/4″ BSP male threaded port in a straight line. The tube pushes into the collet by hand for an instant, tool-free seal, making it a fast way to plumb air tools, cylinders and manifolds in a compressed-air line.
12mm Push-In
1/4″ BSP Male
One-Touch
Tool-Free
Compressed Air
Suitable For
Compressed Air Lines
Air Tools & Cylinders
Manifolds & Valves
Automation Plumbing
Key Features & Benefits
- One-touch push-in connection — the 12mm tube pushes straight into the collet and locks instantly — no spanners, no clamps, no thread tape on the tube side.
- 1/4″ BSP male thread — screws into a matching female port; wrap the thread with PTFE tape for a leak-free seal under air pressure.
- Collet release — press the collar to release the tube, so lines can be re-routed or serviced without cutting the tube.
- Workshop air rated — suited to general shop air, pneumatic tools and automation lines running on clean, dry compressed air.
When to Use This Fitting
Reach for part 20-M003-1204 when you need to take 12mm air tube straight onto a 1/4″ BSP male port — at a tool inlet, manifold or valve. Push the tube fully home until it seats past the O-ring, and PTFE-tape the male thread before screwing it in.
Push-In Male Straight Connector Range — Sizes Available
| Part No. | Tube OD | Thread / Type |
|---|---|---|
| 21-M003-0604 | 6mm | 1/4″ BSP |
| 21-M003-0602 | 6mm | 1/8″ BSP |
| 21-M003-0804 | 8mm | 1/4″ BSP |
| 21-M003-1004 | 10mm | 1/4″ BSP |
| 20-M003-1204 ★ | 12mm | 1/4″ BSP |
★ You are viewing the highlighted fitting. Other sizes in this push-in range are also available.
