Knipex

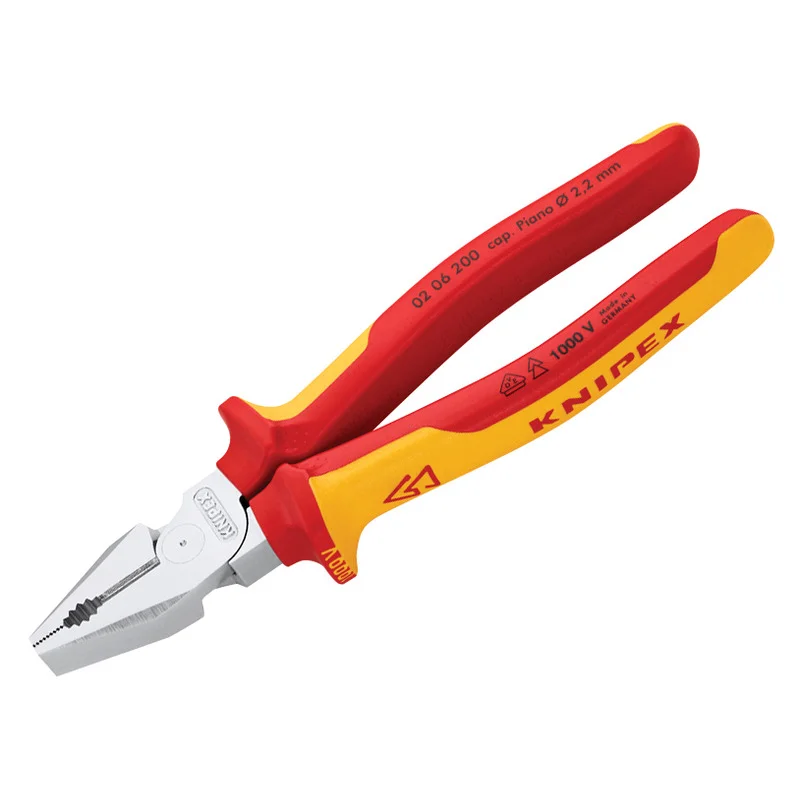

High Leverage Combination Pliers 200mm — 1000V VDE Insulated
Part No: 02 06 200 | Barcode: 4003773029496
Professional 200mm VDE-insulated high-leverage combination pliers requiring 35% less effort. Chrome-plated special tool steel with 63 HRC cutting edges, gripping zones for flat and round material, and long cutting edges for thick cable up to 13mm diameter.
1000V VDE
200mm Length
35% Less Effort
63 HRC Edges
343g
Made in Germany
Key Features & Benefits
- VDE tested to 10,000V — individually tested and certified safe for live electrical work up to 1,000V to DIN EN/IEC 60900.
- 35% less effort — high-leverage joint design provides significantly more force with the same grip pressure.
- 63 HRC cutting edges — cuts hard wire up to 2.8mm and piano wire up to 2.2mm.
- Cable capacity up to 13mm / 25mm² — long cutting edges handle thick multi-core cables.
- Versatile gripping zones — separate zones for flat and round material.
When to Use These Pliers
The 02 06 200 combines the versatility of combination pliers with 1000V VDE safety certification and high-leverage cutting power. Essential for electricians who need a single all-round plier rated for live work. For dedicated cutting-only tasks, the 74 06 200 diagonal cutter offers even higher cutting capacity.
Product Specifications
| Part No. | Type | Length | Insulation | Cutting Capacity |
|---|---|---|---|---|
| 74 06 200 | High Leverage Diagonal Cutter | 200mm | 1000V VDE | 4.2mm med / 3.0mm piano |
| 02 06 200 ★ | High Leverage Combination | 200mm | 1000V VDE | 2.8mm hard / 2.2mm piano |
★ You are viewing the highlighted variant. Other models in this range are also available.
