Beaver

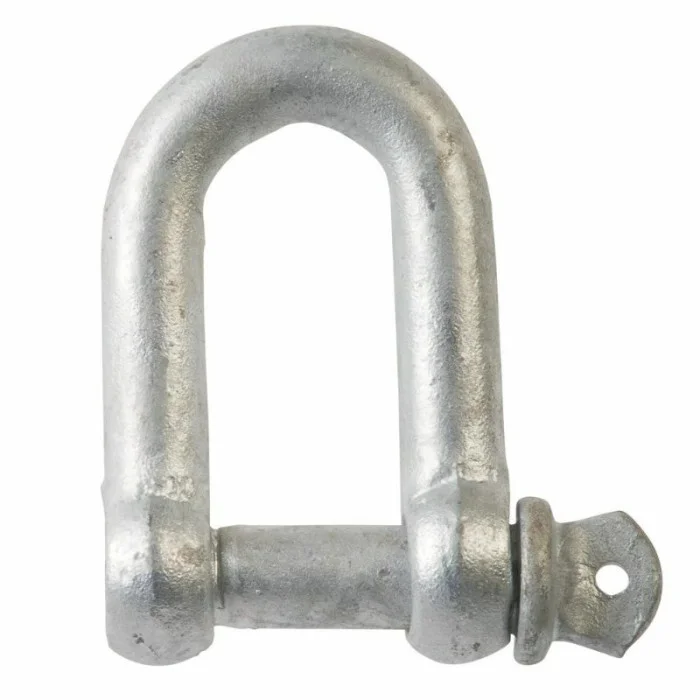

Beaver Galvanised D-Shackle — 16 x 19mm WLL 3.2t
Part No: 242316 / Barcode: 9322297008301 / Galvanised D-Shackles
The Beaver 242-series Galvanised D-Shackle in 16 x 19mm provides 3.2t working load capacity in a hot dipped galvanised finish. Rated to AS 2741 for lifting and rigging, these shackles combine corrosion resistance with certified load performance.
WLL 3.2tSize 16 x 19mmGrade SAS 2741Hot Dipped GalvScrew Pin
Suitable For:
Lifting
Rigging
Marine
Construction
General Industry
Key Features & Benefits
- AS 2741 rated — Certified working load limit for overhead lifting and rigging applications
- Hot dipped galvanised — Heavy-duty corrosion protection for outdoor, coastal, and wet environments
- Dee shape profile — Inline connection point ideal for single-leg sling attachments
- Screw pin closure — Tool-free installation and removal for quick rigging changes
- Forged steel body — High strength-to-weight ratio with consistent quality throughout the range
When to Use This Shackle: Select this 16 x 19mm galvanised D-shackle for rated lifting and rigging connections up to 3.2t. The galvanised finish makes it well-suited to outdoor and corrosive environments where a standard painted finish would deteriorate.
Authorised Australian Dealer — This product is sourced directly from Beaver Australia and is backed by full Australian manufacturer warranty and local support.
| Part No. | Size (mm) | WLL |
|---|---|---|
| 242306 | 6 x 8mm | 0.5t |
| 242308 | 8 x 10mm | 0.75t |
| 242310 | 10 x 11mm | 1.0t |
| 242311 | 11 x 13mm | 1.5t |
| 242313 | 13 x 16mm | 2.0t |
| 242316 ★ | 16 x 19mm | 3.2t |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
