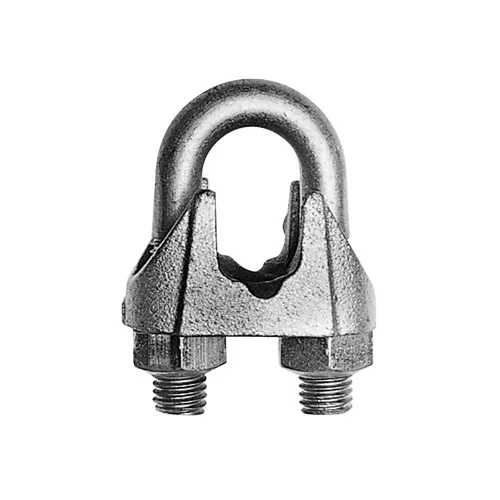

Beaver Commercial Wire Rope Grip — 6mm Galvanised
Part No: 301206P | Barcode: 301206P
Beaver commercial electro-galvanised wire rope grip for 6mm wire rope. Used to form secure loops and terminations in wire rope assemblies. Supplied in a pail of 50 for trade and commercial use. Not suitable for lifting applications.
6mm Wire Rope
Electro Galvanised
Commercial Grade
Pail of 50
W 24mm
Suitable For
Wire Rope Termination
Guy Wire Anchoring
Fencing
General Rigging
Key Features & Benefits
- Electro-galvanised finish — provides corrosion resistance for outdoor and exposed environments, extending the working life of each grip.
- U-bolt and saddle design — clamps securely around wire rope to form reliable loops, eyes, and terminations without splicing.
- Commercial grade construction — suitable for general-purpose wire rope applications including fencing, guy wires, and non-lifting rigging.
- Bulk pail packaging — supplied in pails of 50 for efficient trade use, reducing packaging waste and per-unit cost.
When to Use This Grip
The 301206P wire rope grip is used to clamp 6mm wire rope to form secure loops, eyes, and end terminations. Apply at least three grips per termination, spaced evenly, with the saddle (curved plate) on the live side of the rope and the U-bolt on the dead end. Tighten nuts evenly and re-torque after initial loading. This is a commercial-grade product and is not suitable for overhead lifting — use forged wire rope clips to AS 2076 for lifting applications.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Wire Dia. (mm) | W (mm) | C (mm) | H (mm) | Pail Qty |
|---|---|---|---|---|---|
| 301203P | 3 | 19.5 | 9 | 17 | 100 |
| 301205P | 5 | 22.5 | 11 | 19 | 100 |
| 301206P ★ | 6 | 24 | 13 | 23 | 50 |
| 301208P | 8 | 28 | 15 | 28 | 80 |
| 301210P | 10 | 33 | 18.5 | 34 | 50 |
| 301213P | 13 | 41 | 23 | 45 | 20 |
| 301216P | 16 | 49 | 29.5 | 52 | 15 |
| 301220P | 20 | 52 | 32 | 62 | 10 |
| 301222P | 22 | 61 | 37 | 68 | 5 |
| 301225P | 25 | 70 | 41 | 78 | 5 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
