Description
Beaver 310313 — commercial wire rope thimble galvanised available at Alltools Geelong. Shop our full commercial wire rope thimble galvanised range in Geelong.
Beaver

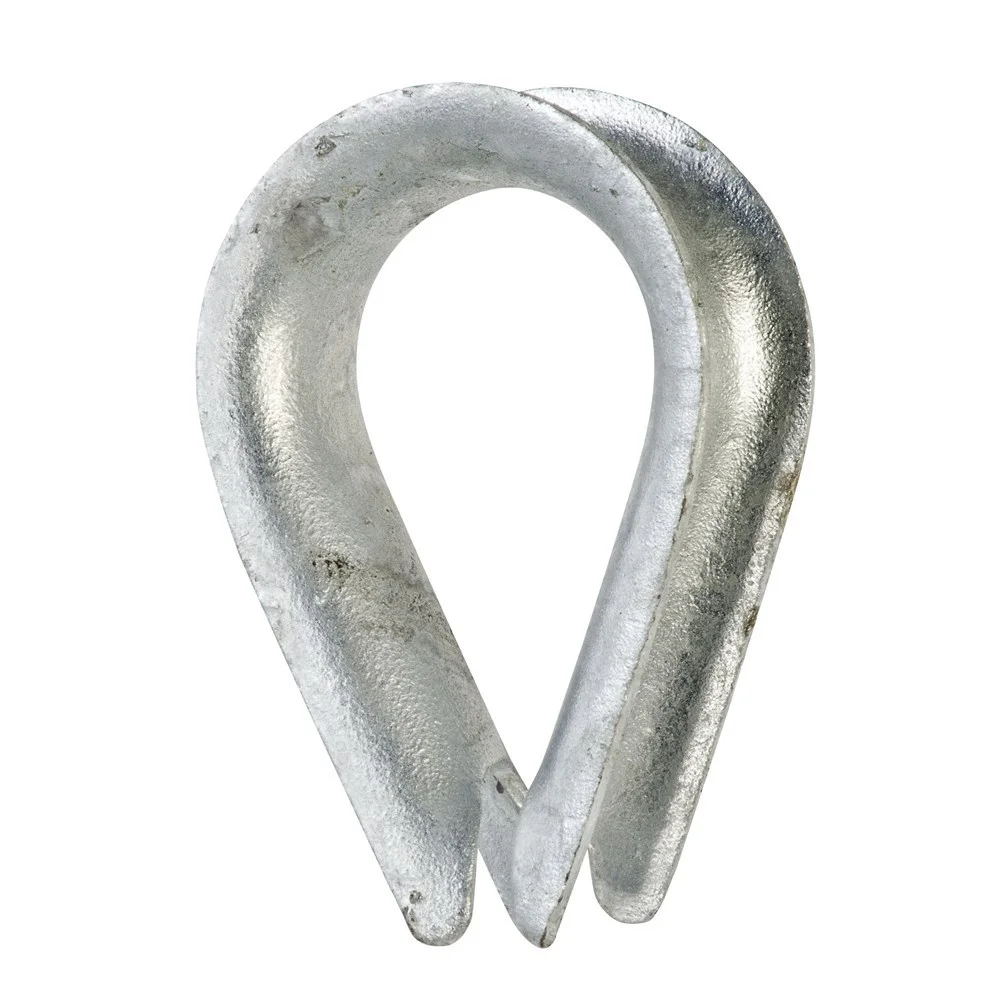

Beaver Commercial Wire Rope Thimble — 13mm Galvanised
Part No: 310313 | Barcode: 310313
Beaver commercial galvanised wire rope thimble for 13mm wire rope. Protects the rope from wear and deformation at loop terminations by providing a smooth, curved bearing surface inside the eye. Not suitable for lifting.
13mm Wire Rope
Galvanised
Commercial Grade
Rope Protection
Suitable For
Wire Rope Termination
Eye Protection
Guy Wires
Fencing
Key Features & Benefits
- Galvanised steel construction — corrosion-resistant finish for long service life in outdoor and marine-adjacent environments.
- Grooved bearing surface — guides the wire rope around a smooth curve, preventing kinking and sharp-angle stress at the loop.
- Prevents rope wear — shields the inner surface of the eye from abrasion against shackles, hooks, and other hardware.
- Commercial grade — suitable for general-purpose rigging, fencing, guy wires, and non-lifting wire rope applications.
When to Use This Thimble
Insert the 310313 thimble inside the wire rope eye before applying wire rope grips or swaging. The thimble prevents the rope from collapsing under load and protects against internal abrasion where the eye wraps around connecting hardware. Always match the thimble size to the wire rope diameter. This is a commercial-grade product and is not suitable for overhead lifting.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Wire Dia. (mm) |
|---|---|
| 310304 | 4 |
| 310305 | 5 |
| 310306 | 6 |
| 310308 | 8 |
| 310310 | 10 |
| 310313 ★ | 13 |
| 310316 | 16 |
| 310320 | 20 |
| 310323 | 23 |
| 310325 | 25 |
| 310328 | 28 |
| 310332 | 32 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
