Beaver

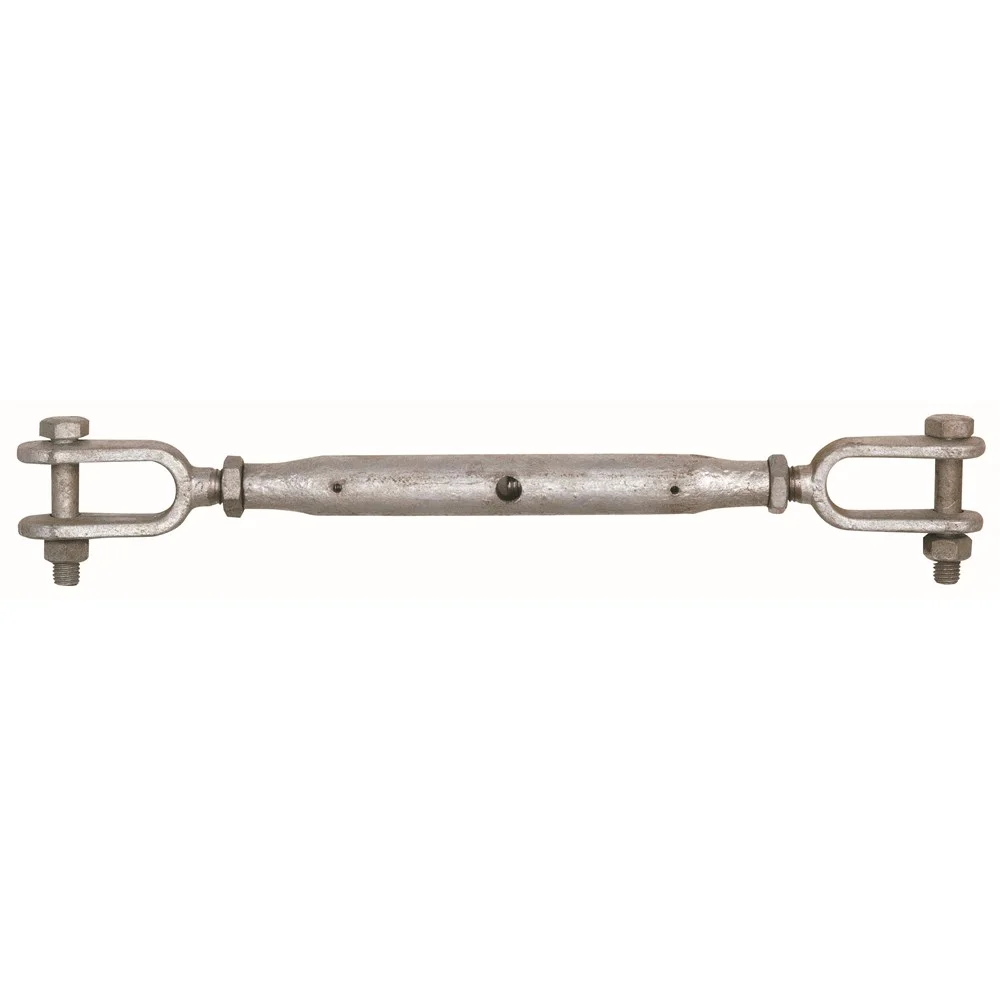

Beaver Jaw/Jaw Rigging Screw with Locknut — 10mm
Part No: 328310 | Barcode: 328310
Beaver rated jaw and jaw rigging screw with locknuts in 10mm size. WLL 0.3 tonnes. Manufactured from Grade L high-tensile quenched and tempered steel with hot-dipped galvanised finish. Compliant with BS 4429 for heavy-duty straining and lifting applications.
10mm
WLL 0.3t
Grade L Steel
Hot Dip Galvanised
BS 4429
0.44 kg
Suitable For
Heavy Duty Tensioning
Structural Rigging
Wire Rope Assembly
Lifting Applications
Key Features & Benefits
- Grade L high-tensile steel — quenched and tempered for superior strength in heavy-duty straining and lifting applications.
- Jaw and jaw ends — clevis-style forks on both ends accept pins for secure attachment to eye bolts, chain links, and structural fittings.
- Locknuts included — prevent the screw body from rotating under vibration, maintaining set tension without drift.
- Hot-dipped galvanised finish — heavy-duty corrosion protection suitable for permanent outdoor installations.
- BS 4429 compliant — meets British Standard for rated rigging screws used in structural and lifting applications.
When to Use This Rigging Screw
The 328310 rigging screw is a rated tensioning device for 10mm applications requiring a WLL of 0.3 tonnes. Unlike commercial turnbuckles, this rigging screw is rated and suitable for structural and lifting use. The jaw ends accept standard clevis pins for positive connection. Open length 349mm, closed length 235mm. Use the locknuts to secure the body once tensioned.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Beaver Australia, with local support and service.
Product Specifications
| Part No. | Size (mm) | WLL (t) | Open (mm) | Closed (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 328310 ★ | 10 | 0.3 | 349 | 235 | 0.44 |
| 328313 | 13 | 0.5 | 524 | 343 | 0.85 |
| 328316 | 16 | 0.75 | 550 | 361 | 1.40 |
| 328320 | 20 | 1.25 | 550 | 387 | 2.20 |
| 328324 | 24 | 2.5 | 822 | 556 | 4.50 |
| 328333 | 33 | 5.0 | 872 | 604 | 6.40 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
