Beaver

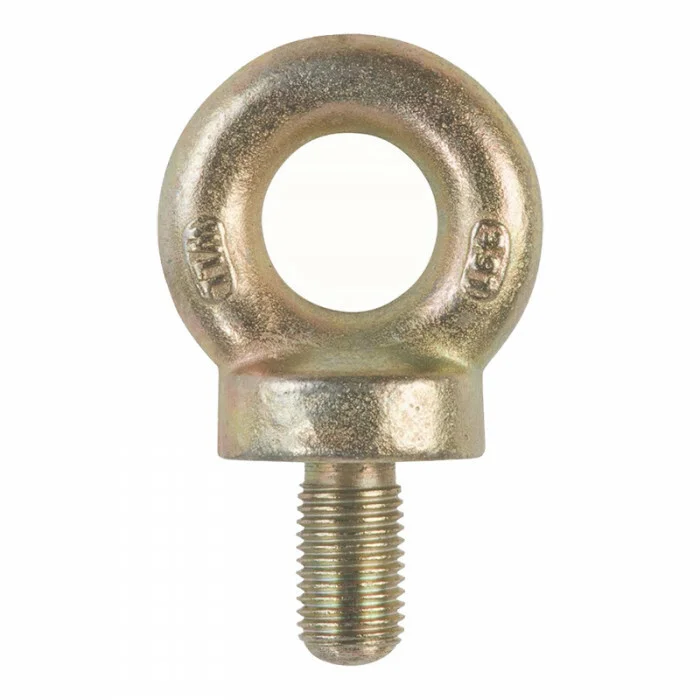

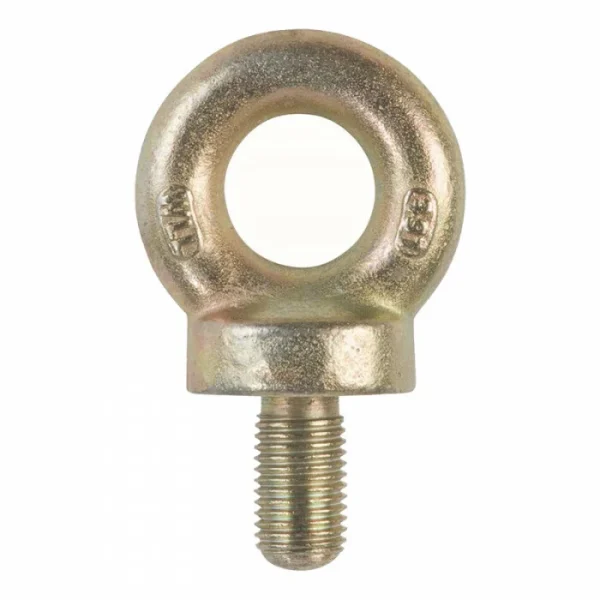

Beaver Collared Eye Bolt — Small Eye 8mm Metric
Part No: 359008 / Barcode: 359008 / Collared Eye Bolts
The Beaver 359008 Collared Eye Bolt features a small eye with 8mm metric thread and a 0.15t vertical working load limit. The forged steel collar provides stability under angled loads, preventing the reduced capacity that occurs with unshouldered eye bolts.
WLL 0.15t8mm MetricSmall EyeCollaredAS 2317Zinc Dichromate
Suitable For:
Overhead Lifting
Rigging Points
Anchoring
Machinery Mounting
Key Features & Benefits
- Forged steel collar — Shoulder prevents bolt rotation under angled loads, maintaining rated capacity
- AS 2317 compliant — Certified 0.15t working load limit for overhead lifting applications
- Zinc dichromate finish — Corrosion-resistant plating for indoor and sheltered outdoor use
- Metric thread — Standard metric sizing for direct compatibility with metric fastener systems
- Small eye design — Compact profile suits confined spaces and lighter rigging hardware
When to Use This Eye Bolt: Install this 8mm collared eye bolt as a permanent or semi-permanent lifting point rated to 0.15t. The collar is essential — unshouldered eye bolts lose significant capacity when loaded at angles. For higher WLL requirements at the same thread size, consider the large eye lifting variant.
Authorised Australian Dealer — This product is sourced directly from Beaver Australia and is backed by full Australian manufacturer warranty and local support.
| Part No. | Thread | WLL (Vertical) | WLL (45°) | Weight |
|---|---|---|---|---|
| 359008 ★ | 8mm | 0.15t | 0.04t | 0.06kg |
| 359010 | 10mm | 0.25t | 0.06t | 0.06kg |
| 359012 | 12mm | 0.4t | 0.1t | 0.06kg |
| 359016 | 16mm | 0.8t | 0.2t | 0.15kg |
| 359020 | 20mm | 1.2t | 0.3t | 0.38kg |
| 359022 | 22mm | 1.5t | 0.37t | 0.54kg |
| 359024 | 24mm | 2.5t | 0.62t | 0.85kg |
| 359030 | 30mm | 4.0t | 1.0t | 1.62kg |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
