Beaver Lifting Eye Nut — 20mm Metric DIN 582
Part No: 359220 / Barcode: 20997 / Lifting Eye Nuts

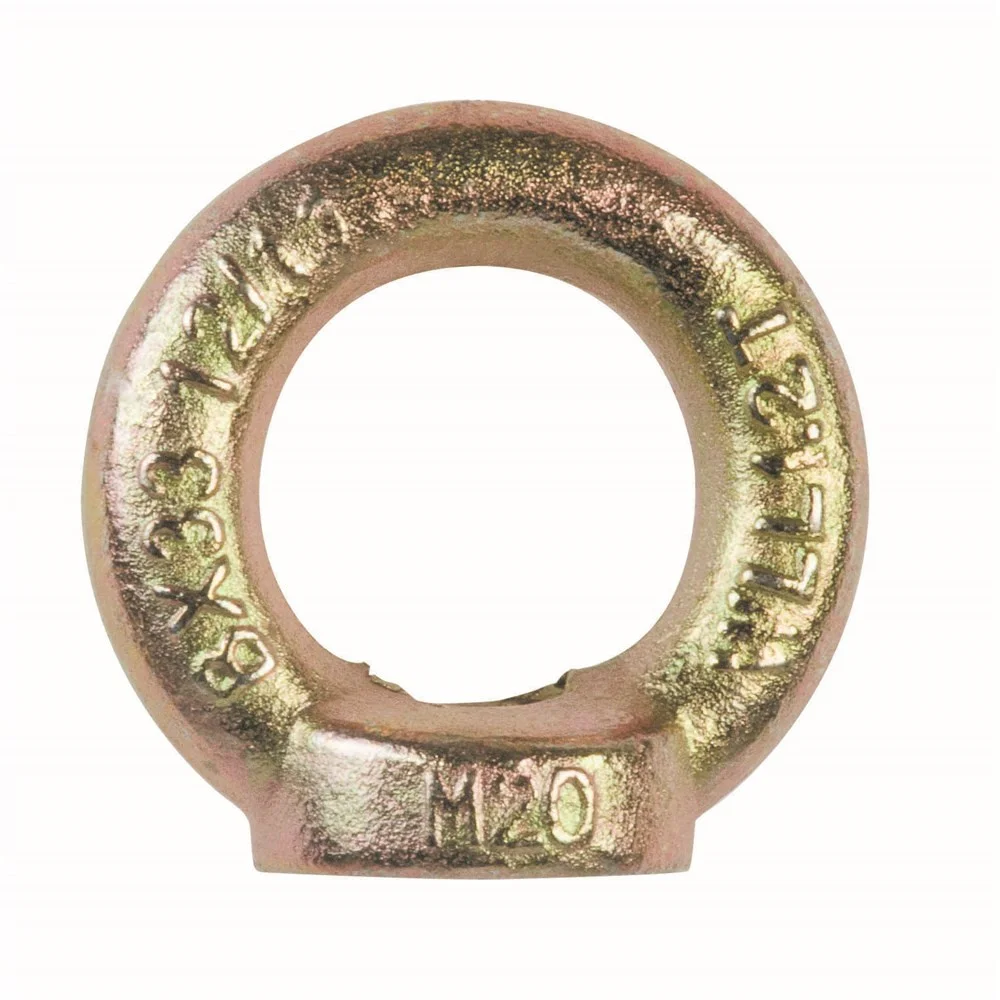

The Beaver 359220 Lifting Eye Nut threads onto 20mm metric studs or bolts to create a rated lifting point with 1.2t vertical capacity. The shouldered design to DIN 582 ensures stable performance under angled loads.
WLL 1.2t20mm MetricDIN 582ShoulderedZinc Dichromate0.36kg
Suitable For:
Overhead Lifting
Rigging Points
Machinery
Mould Handling
Key Features & Benefits
- DIN 582 rated — Certified 1.2t vertical working load limit with tested transverse capacity
- Shouldered design — Prevents rotation under angled loads, maintaining rated capacity in real-world rigging
- Female thread — Screws onto existing studs or bolts, making it easy to add lifting points to machinery and moulds
- Zinc dichromate finish — Industrial-grade corrosion protection for workshop and factory environments
- Forged steel — Consistent quality and strength from the compact {size_mm} through to the heavy-duty 24mm
When to Use This Eye Nut: Thread this 20mm eye nut onto an existing stud or bolt to create a rated lifting point at 1.2t capacity. Eye nuts are ideal where you need a removable lifting point — install for the lift, remove afterward. Always use with a shoulder to prevent rotation under load.
Authorised Australian Dealer — This product is sourced directly from Beaver Australia and is backed by full Australian manufacturer warranty and local support.
| Part No. | Thread | WLL (Vertical) | WLL (45°) | Weight |
|---|---|---|---|---|
| 359208 | 8mm | 0.14t | 0.03t | 0.05kg |
| 359210 | 10mm | 0.23t | 0.06t | 0.09kg |
| 359212 | 12mm | 0.3t | 0.07t | 0.16kg |
| 359216 | 16mm | 0.7t | 0.17t | 0.24kg |
| 359220 ★ | 20mm | 1.2t | 0.3t | 0.36kg |
| 359222 | 22mm | 1.5t | 0.37t | 0.58kg |
| 359224 | 24mm | 1.8t | 0.45t | 0.72kg |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
