Description
Beaver 506320 — 3s lever block yellow available at Alltools Geelong. Shop our full 3s lever block yellow range in Geelong.
Beaver

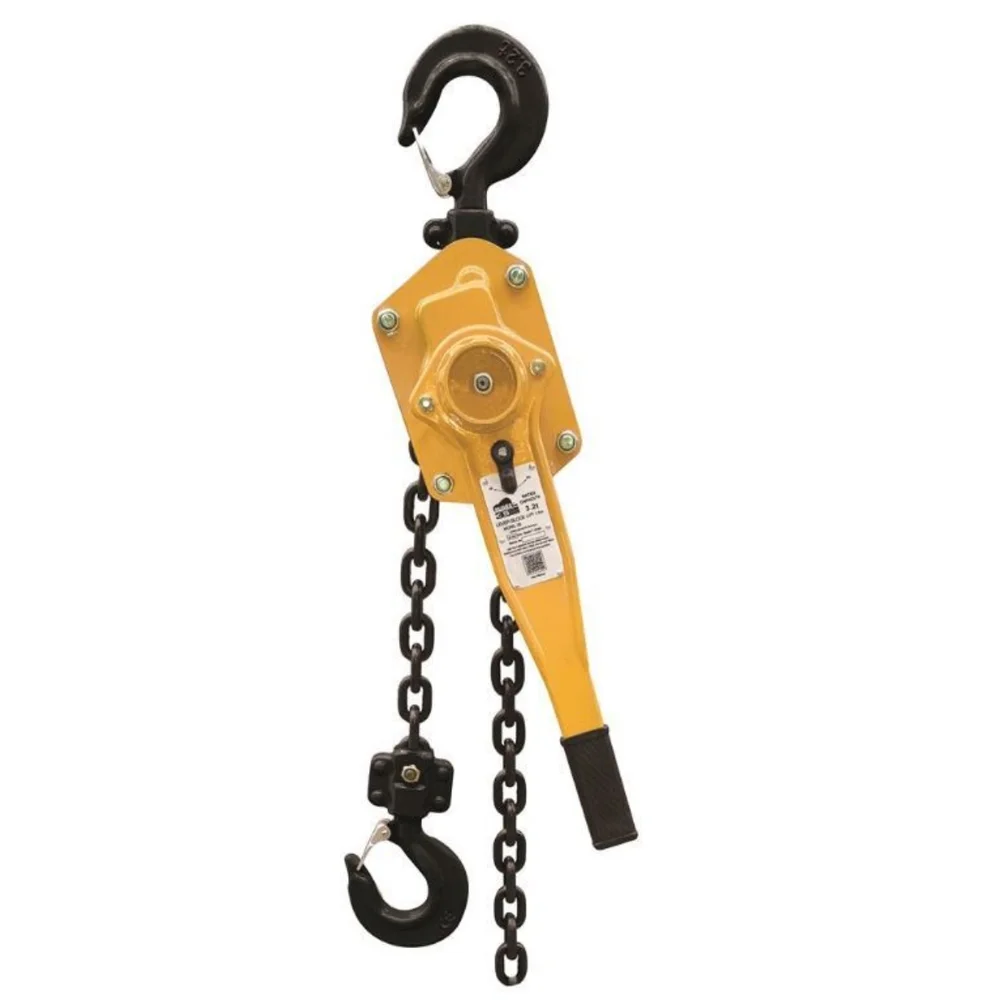

Beaver 3S Lever Block 3200kg — Yellow
Part No: 506320
Beaver 3S lever block rated at 3200kg with 1.5m standard lift height. Compact and versatile design for lifting, pulling, and tensioning applications. Built with G80 calibrated load chain and tested to AS 1418.2.
3200kg WLL
1.5m Lift
G80 Chain
AS 1418.2
21kg
Yellow Coded
Suitable For
Lifting
Pulling
Tensioning
Rigging
Construction
Key Features & Benefits
- G80 zinc-plated load chain — calibrated to ISO 3077 and ISO 1834 for consistent performance and corrosion resistance.
- Compact design — lightweight at 21kg for easy handling in confined spaces and overhead work.
- Lifting and pulling — versatile lever action suits horizontal pulling and tensioning as well as vertical lifting.
- Stainless steel ID plates — spark-resistant identification suitable for mining environments.
- Individual test certificates — each unit operationally tested to rated capacity with full documentation.
- International colour coding — Yellow for quick 3200kg WLL identification.
When to Use This Lever Block
The 506320 lever block is rated at 3200kg with 320N effort required at full load. Lever blocks excel where chain blocks cannot reach — horizontal pulling, angled tensioning, and confined space lifting. The lever mechanism provides precise load control without needing overhead mounting. Choose this capacity for loads up to 3200kg.
Authorised Australian Dealer — This product is sourced directly from Beaver Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Capacity | Lift Height | Effort |
|---|---|---|---|
| 506025 | 250kg | 1.5m | 210N |
| 506050 | 500kg | 1.5m | 320N |
| 506080 | 800kg | 1.5m | 140N |
| 506160 | 1600kg | 1.5m | 240N |
| 506320 ★ | 3200kg | 1.5m | 320N |
| 506630 | 6300kg | 1.5m | 340N |
★ You are viewing the highlighted variant. Other capacities in this series are also available.
