Impact Socket 11/16″ — 1/2″ Drive
Part No: 60020022 | Barcode: 9341202003057
Professional-grade impact socket in 11/16″ for 1/2″ drive impact wrenches and air tools. Drop forged from Chrome-Molybdenum Alloy Steel with precision heat treatment for exceptional strength and durability.
11/16″
1/2″ Drive
6-Point
Standard Profile
Chrome-Moly Steel
Drop Forged
ISO 9001:2008
Suitable For
Impact Wrenches
Air Tools
Cordless Impact Drivers
Heavy Duty Fastening
Key Features & Benefits
- Chrome-Molybdenum Alloy Steel — superior toughness and resistance to the high-torque shock loads generated by impact tools.
- Drop forged construction — forging aligns the steel grain structure for maximum strength, unlike cast or machined alternatives.
- Precision heat treated and surface hardened — delivers consistent hardness across the entire socket for long service life.
- 6-point profile — provides maximum contact area with fastener flats, reducing the risk of rounding nuts and bolts under high torque.
- Manufactured to international standards — certified to ISO 9001:2008, GGG-W-660A, DIN3121 and DIN3129 for reliable, repeatable quality.
- Phosphate finish — corrosion-resistant coating protects against rust and provides improved grip.
- Lifetime warranty — backed against defects in material and workmanship.
When to Use This Socket
Choose the 60020022 impact socket for 11/16″ fastener work with 1/2″ drive impact tools. The 6-point design grips fastener flats securely under the repeated hammering action of pneumatic and cordless impact wrenches. Ideal for automotive, industrial, mechanical, and heavy equipment applications where high-torque fastening is required.
Authorised Australian Dealer — This product is sourced directly from Impact Tools Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications

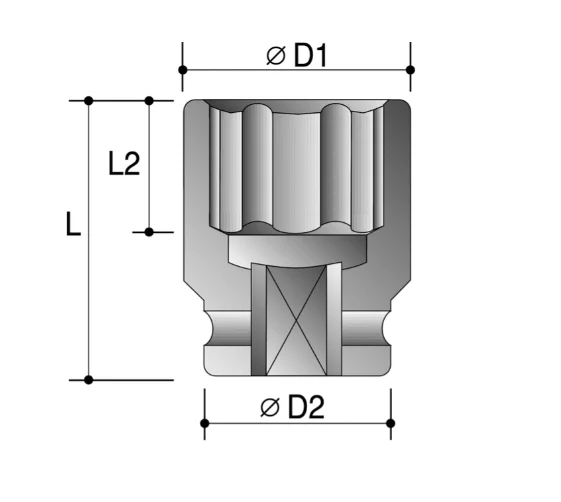

| Size | D2 | D1 | L2 | L | Part No. |
|---|---|---|---|---|---|
| 5/16 | 22 | 15 | 9 | 38 | 60020010 |
| 3/8 | 22 | 16 | 12 | 38 | 60020012 |
| 7/16 | 22 | 18 | 12 | 38 | 60020014 |
| 1/2 | 22 | 20 | 12 | 38 | 60020016 |
| 9/16 | 24 | 22 | 12 | 38 | 60020018 |
| 5/8 | 24 | 22 | 12 | 38 | 60020020 |
| 11/16 | 26 | 26 | 13 | 38 | 60020022 ★ |
| 3/4 | 28 | 28 | 13 | 38 | 60020024 |
| 13/16 | 30 | 30 | 13 | 38 | 60020026 |
| 7/8 | 32 | 32 | 13 | 38 | 60020028 |
| 15/16 | 34 | 34 | 13 | 38 | 60020030 |
| 1 | 36 | 36 | 14 | 38 | 60020100 |
| 1-1/16 | 38 | 38 | 16 | 40 | 60020102 |
| 1-1/8 | 38 | 40 | 16 | 40 | 60020104 |
| 1-3/16 | 38 | 42 | 16 | 40 | 60020106 |
| 1-1/4 | 38 | 44 | 18 | 40 | 60020108 |
| 1-5/16 | 38 | 45 | 21 | 43 | 60020110 |
| 1-3/8 | 38 | 48.5 | 26 | 50 | 60020112 |
| 1-7/16 | 38 | 50.5 | 26 | 50 | 60020114 |
| 1-1/2 | 38 | 52.5 | 26 | 50 | 60020116 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
