Action 60022022 — deep impact socket drive available at Alltools Geelong. Shop our full deep impact socket drive range in Geelong.
Action
Deep Impact Socket 11/16″ — 1/2″ Drive
Part No: 60022022 | Barcode: 9341202004061
Professional-grade deep impact socket in 11/16″ for 1/2″ drive impact wrenches and air tools. Drop forged from Chrome-Molybdenum Alloy Steel with precision heat treatment for exceptional strength and durability. Its extended length provides access to recessed or hard-to-reach fasteners where standard sockets cannot fit.
11/16″
1/2″ Drive
6-Point
Deep Profile
Chrome-Moly Steel
Drop Forged
ISO 9001:2008
Suitable For
Impact Wrenches
Air Tools
Cordless Impact Drivers
Heavy Duty Fastening
Key Features & Benefits
- Chrome-Molybdenum Alloy Steel — superior toughness and resistance to the high-torque shock loads generated by impact tools.
- Drop forged construction — forging aligns the steel grain structure for maximum strength, unlike cast or machined alternatives.
- Precision heat treated and surface hardened — delivers consistent hardness across the entire socket for long service life.
- 6-point profile — provides maximum contact area with fastener flats, reducing the risk of rounding nuts and bolts under high torque.
- Deep socket design — extended length reaches recessed and countersunk fasteners that standard sockets cannot access.
- Manufactured to international standards — certified to ISO 9001:2008, GGG-W-660A, DIN3121 and DIN3129 for reliable, repeatable quality.
- Phosphate finish — corrosion-resistant coating protects against rust and provides improved grip.
- Lifetime warranty — backed against defects in material and workmanship.
When to Use This Socket
Choose the 60022022 deep impact socket for 11/16″ fastener work with 1/2″ drive impact tools. The 6-point design grips fastener flats securely under the repeated hammering action of pneumatic and cordless impact wrenches. The deep profile is essential for reaching nuts on long bolts, threaded rod, and recessed fastener applications. Ideal for automotive, industrial, mechanical, and heavy equipment applications where high-torque fastening is required.
Authorised Australian Dealer — This product is sourced directly from Impact Tools Australia and is backed by full Australian manufacturer warranty and local support.

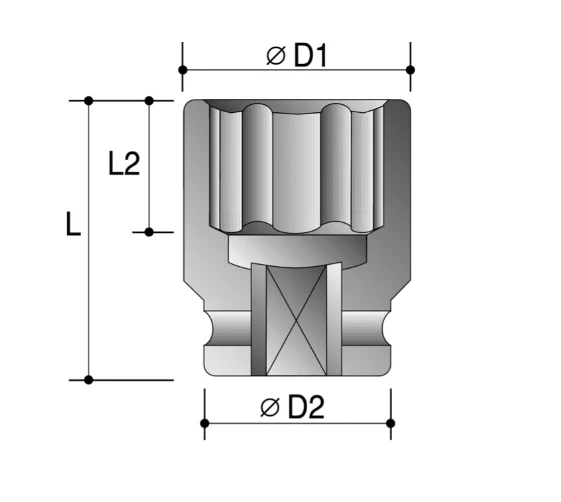

Product Specifications
| Size | D2 | D1 | L2 | L | Part No. |
|---|---|---|---|---|---|
| 5/16 | 22 | 15 | 13 | 78 | 60022010 |
| 3/8 | 22 | 16 | 14 | 78 | 60022012 |
| 7/16 | 22 | 18 | 14 | 78 | 60022014 |
| 1/2 | 22 | 20 | 14 | 78 | 60022016 |
| 9/16 | 24 | 22 | 17 | 78 | 60022018 |
| 5/8 | 24 | 24 | 17 | 78 | 60022020 |
| 11/16 | 26 | 26 | 17 | 78 | 60022022 ★ |
| 3/4 | 28 | 28 | 19 | 78 | 60022024 |
| 13/16 | 30 | 30 | 24 | 78 | 60022026 |
| 7/8 | 32 | 32 | 24 | 78 | 60022028 |
| 15/16 | 34 | 34 | 24 | 78 | 60022030 |
| 1 | 36 | 36 | 24 | 78 | 60022100 |
| 1-1/16 | 38 | 38 | 24 | 78 | 60022102 |
| 1-1/8 | 38 | 40 | 24 | 78 | 60022104 |
| 1-3/16 | 38 | 42 | 24 | 78 | 60022106 |
| 1-1/4 | 38 | 44 | 24 | 78 | 60022108 |
| 1-5/16 | 38 | 45 | 24 | 78 | 60022110 |
| 1-3/8 | 38 | 48.5 | 24 | 78 | 60022112 |
| 1-7/16 | 38 | 50.5 | 24 | 78 | 60022114 |
| 1-1/2 | 38 | 52.5 | 24 | 78 | 60022116 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
