Stabila

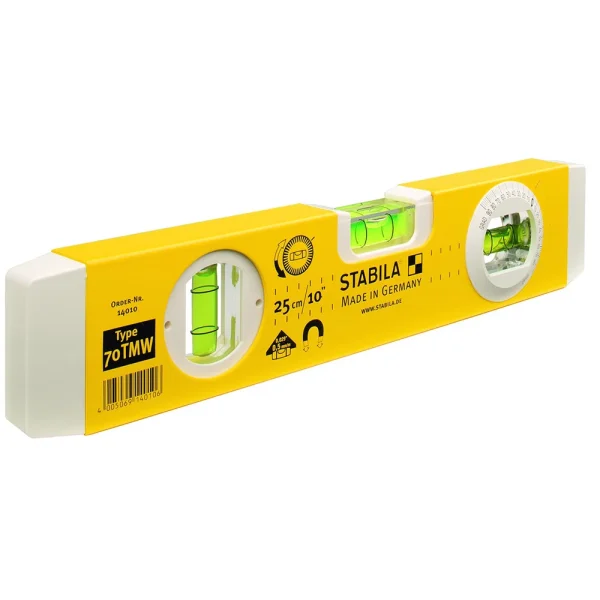

Stabila Type 70 TMW Magnetic Torpedo Spirit Level with Rotating Angle Vial — 250mm
Part No: 70TMW/25 | Barcode: 4005069140106 | Series: Type 70 TMW
The 70 TMW is Stabila’s magnetic-base torpedo level with an added rotatable angle vial — set, lock and check any pitch from 0° to 90° without a digital tool. Perfect for roof pitches, drainage falls and rafter sets where you need a repeatable angle reference, not just plumb and level.
250mm length
±0.5 mm/m accuracy
Rotatable angle vial ±0.3°
Magnetic base strip
Light metal profile
3 vials total
Key Features & Benefits
- Rotatable angle vial — lock in any pitch (0–90°) and transfer it accurately to the next rafter, drain run or solar bracket.
- Magnetic base strip — full-length magnet underside grips steel decking, RSJs and metal roofs so you can both hands free for marking.
- Three vials — fixed horizontal, fixed vertical and the rotatable angle vial; all three locked in an epoxy-bonded frame.
- Light metal profile, epoxy-locked top frame — shockproof construction; survives drops that destroy plastic-bodied torpedo levels.
- ±0.5 mm/m normal accuracy — calibrated to professional DIN tolerances; vials retain accuracy for 10+ years.
- ±0.3° angle tolerance — tight enough for plumbing falls and roof pitches without resorting to a digital inclinometer.
When to Use This Level
Reach for the 70TMW/25 when you need a torpedo level that does more than level and plumb — setting roof pitches on rafters, fall on drainage and waste pipes, angles on solar mounts, or transferring an existing pitch to a replacement member. The magnetic base makes it the natural choice on steel-frame and metal-roof work.
Pro Tip: When matching an existing pitch (e.g. replacing a section of guttering to the same fall), set the rotating vial against the existing run first to capture the angle, then carry the level to the new section — the vial holds the reading so you can match the pitch exactly without doing the maths.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Stabila Australia, with local support and service.
Product Specifications
| Part No. | Length | Vials | Accuracy | Angle Tolerance | Barcode |
|---|---|---|---|---|---|
| 70TMW/25 ★ | 250mm (25 cm) | 1H + 1V + 1 rotating | ±0.5 mm/m | ±0.3° | 4005069140106 |
Browse our full range of spirit levels at Alltools Geelong.
