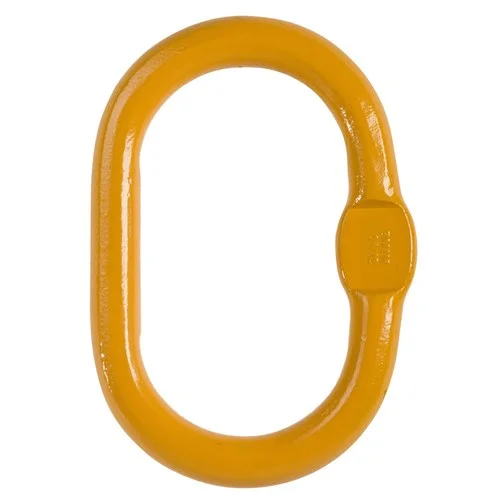

Beaver G80 Master Link — Single 8mm / Double 7mm
Part No: 883508A
Beaver Grade 80 master link rated at 2.6T WLL, suitable for single leg (8mm) and double leg (7mm) chain sling configurations. Heat-treated alloy steel with comprehensive quality testing throughout production. Compliant with AS 3776.
2.6T WLL
Grade 80
Single 8mm
Double 7mm
AS 3776
Suitable For
Chain Slings
Lifting
Rigging
Key Features & Benefits
- Grade 80 alloy steel — heat-treated for maximum strength-to-weight ratio in lifting applications.
- Dual configuration — accepts single leg (8mm) or double leg (7mm) chain sling assemblies.
- AS 3776 compliant — meets Australian lifting component standards for certified sling assemblies.
- Quality tested — stringent testing and inspection throughout production process.
When to Use This Master Link
The 883508A master link is the top connection point for Grade 80 chain slings rated at 2.6T. It connects the sling assembly to the crane hook or lifting point. Use the single (8mm) bore for single leg slings or the double (7mm) bore for two-leg configurations. Always match the master link to the chain grade and diameter.
Authorised Australian Dealer — This product is sourced directly from Beaver Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | 1-Leg Chain | 2-Leg Chain | WLL |
|---|---|---|---|
| 883507A | 7mm | 6mm | 1.9T |
| 883508A ★ | 8mm | 7mm | 2.6T |
| 883510A | 10mm | 8mm | 3.5T |
| 883513A | 13mm | 10mm | 5.5T |
| 883516A | 16mm | 13mm | 9.2T |
| 883520A | 20mm | 16mm | 13.8T |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
