Stabila

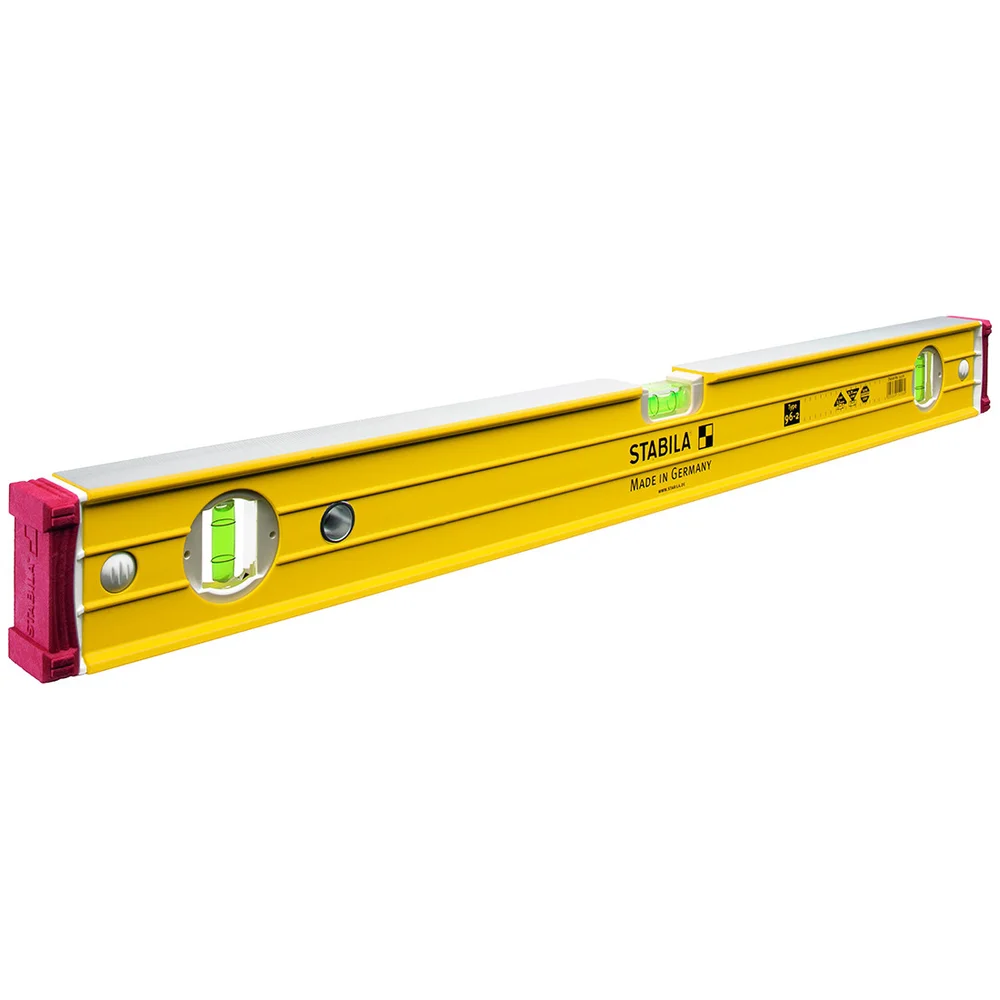

Stabila Type 96-2 Spirit Level — 1200mm (120 cm)
Part No: 96-2/120 | Barcode: 4005069152291 | Series: Type 96-2
The Stabila Type 96-2 is the German-engineered builder’s level trusted by tradespeople across Australia. This 120 cm variant pairs an ultra-rigid ribbed aluminium profile with Stabila’s locked-vial system for accuracy that holds up on tough sites.
1200mm length
±0.5 mm/m accuracy
1 horizontal + 2 vertical vials
Reinforced aluminium
Shock-absorbing end caps
Made in Germany
Key Features & Benefits
- Ultra-rigid ribbed aluminium profile — resists twist and flex on long spans, keeping readings honest under site loads.
- Locked vial system — epoxy-bonded vials stay calibrated for the life of the level; no drift, no recalibration.
- 1 horizontal and 2 vertical vials — level and plumb readable in any orientation, including overhead work.
- Two precision-milled measuring surfaces — flat, parallel reference faces for accurate transfer of level lines onto the work.
- Two-component shock-absorbing end caps — removable for true corner reads, with anti-slip stoppers that grip when marking.
- Electrostatic powder coating — mortar, plaster and paint wipe off cleanly without staining the profile.
- ±0.5 mm/m normal / ±0.75 mm/m reverse accuracy — meets DIN 877 tolerances for professional levelling work.
When to Use This Level
A general-purpose builder’s length — well suited to door frames, cabinetry and wall layouts where a 120 cm span balances reach and handling. The 96-2/120 is the standard 96-2 reference at this length — reach for it on bricklaying, carpentry, concrete formwork, window fitting and landscaping where the level has to take a beating but still read true.
Pro Tip: Pull the rubber end caps off when checking into a corner or against a return wall — the milled aluminium end face reads dead-flush, where the cap would otherwise leave a 2–3 mm gap. Push the caps back on for transport to keep the profile from getting dinged in the ute.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Stabila Australia, with local support and service.
Product Specifications
| Part No. | Length | Vials | Accuracy | Measuring Surfaces | Barcode |
|---|---|---|---|---|---|
| 96-2/40 | 40 cm (400 mm) | 1H + 2V | ±0.5 mm/m | 2 milled | 4005069152253 |
| 96-2/60 | 60 cm (600 mm) | 1H + 2V | ±0.5 mm/m | 2 milled | 4005069152260 |
| 96-2/80 | 80 cm (800 mm) | 1H + 2V | ±0.5 mm/m | 2 milled | 4005069152277 |
| 96-2/100 | 100 cm (1000 mm) | 1H + 2V | ±0.5 mm/m | 2 milled | — |
| 96-2/120 ★ | 120 cm (1200 mm) | 1H + 2V | ±0.5 mm/m | 2 milled | 4005069152291 |
| 96-2/183 | 183 cm (1830 mm) | 1H + 2V | ±0.5 mm/m | 2 coated | — |
| 96-2/200 | 200 cm (2000 mm) | 1H + 2V | ±0.5 mm/m | 2 coated | 4005069152314 |
| 96-2/244 | 244 cm (2440 mm) | 1H + 2V | ±0.5 mm/m | 2 coated | 4005069152321 |
★ You are viewing the highlighted variant. Other lengths in this series are also available.
