Alpha

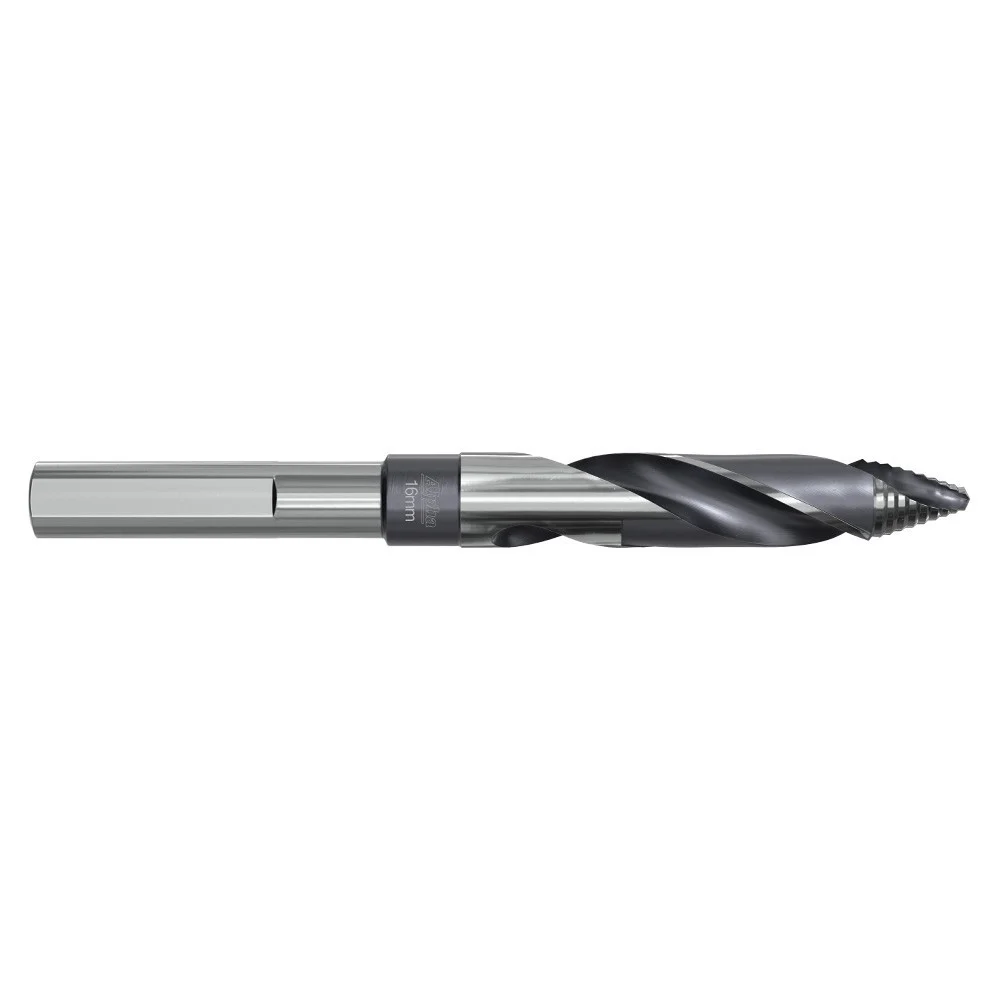

Alpha Onsite+ Step Tip Reduced Shank Drill Bit — 15.0mm
Part No: 9LMST150R | Barcode: 9313601026746 | Range: Onsite+
The Alpha Onsite+ Step Tip Reduced Shank Drill Bit in 15.0mm is purpose-built for metalworkers and fabricators drilling larger holes with standard power drills or drill presses. The patented step tip reduces heat buildup and prevents jamming, while the non-slip 3-flat shank (12.7mm) ensures maximum control. Black oxide treatment enhances lubricant hold for smooth chip flow.
15.0mm
Reduced Shank
3-Flat 12.7mm
Black Oxide
Step Tip
No Pilot Hole
Suitable For
Stainless Steel
Mild Steel
Wood
Plastic
Key Features & Benefits
- Reduced 12.7mm 3-flat shank — fits standard 13mm drill chucks while allowing larger cutting diameters, with three flats preventing slip under heavy load.
- Patented step tip design — reduces heat buildup, prevents jamming, and eliminates the need for pilot holes in steel and stainless.
- Black oxide treatment — enhances lubricant hold and ensures smooth chip flow for cleaner cutting and longer tool life.
- High-speed steel construction — durable HSS body designed to drill hundreds of holes in half the time of conventional bits.
- Burr-free, centred holes — the step tip produces perfectly centred holes without jagged edges, reducing post-drilling cleanup.
- Australian first — the Onsite+ reduced shank range is a market first, engineered specifically for the demands of Australian metalworkers.
When to Use This Drill Bit
The 9LMST150R in 15.0mm is designed for metalworkers and fabricators who need to drill larger-diameter holes using a standard 13mm drill chuck or drill press. The reduced 3-flat shank provides maximum grip and torque transfer while allowing the full cutting diameter of 15.0mm. For smaller diameters (3–13mm), the ¼″ hex shank step tip bits are more convenient for cordless impact driver use.
See the Step Tip in Action
Authorised Australian Dealer — This product is sourced directly from Alpha Tools Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Size | Shank |
|---|---|---|
| C9STQRM030 | 3.0mm | ¼″ Hex |
| C9STQRM032 | 3.2mm | ¼″ Hex |
| C9STQRM033 | 3.3mm | ¼″ Hex |
| C9STQRM035 | 3.5mm | ¼″ Hex |
| C9STQRM040 | 4.0mm | ¼″ Hex |
| C9STQRM042 | 4.2mm | ¼″ Hex |
| C9STQRM045 | 4.5mm | ¼″ Hex |
| C9STQRM048 | 4.8mm | ¼″ Hex |
| C9STQRM050 | 5.0mm | ¼″ Hex |
| C9STQRM055 | 5.5mm | ¼″ Hex |
| C9STQRM060 | 6.0mm | ¼″ Hex |
| C9STQRM065 | 6.5mm | ¼″ Hex |
| C9STQRM068 | 6.8mm | ¼″ Hex |
| C9STQRM070 | 7.0mm | ¼″ Hex |
| C9STQRM075 | 7.5mm | ¼″ Hex |
| C9STQRM080 | 8.0mm | ¼″ Hex |
| C9STQRM085 | 8.5mm | ¼″ Hex |
| C9STQRM090 | 9.0mm | ¼″ Hex |
| C9STQRM095 | 9.5mm | ¼″ Hex |
| C9STQRM100 | 10.0mm | ¼″ Hex |
| C9STQRM102 | 10.2mm | ¼″ Hex |
| C9STQRM105 | 10.5mm | ¼″ Hex |
| C9STQRM110 | 11.0mm | ¼″ Hex |
| C9STQRM115 | 11.5mm | ¼″ Hex |
| C9STQRM120 | 12.0mm | ¼″ Hex |
| C9STQRM125 | 12.5mm | ¼″ Hex |
| C9STQRM130 | 13.0mm | ¼″ Hex |
| 9LMST140R | 14.0mm | Reduced (12.7mm) |
| 9LMST145R | 14.5mm | Reduced (12.7mm) |
| 9LMST150R ★ | 15.0mm | Reduced (12.7mm) |
| 9LMST155R | 15.5mm | Reduced (12.7mm) |
| 9LMST160R | 16.0mm | Reduced (12.7mm) |
| 9LMST165R | 16.5mm | Reduced (12.7mm) |
| 9LMST170R | 17.0mm | Reduced (12.7mm) |
| 9LMST175R | 17.5mm | Reduced (12.7mm) |
| 9LMST180R | 18.0mm | Reduced (12.7mm) |
| 9LMST190R | 19.0mm | Reduced (12.7mm) |
| 9LMST200R | 20.0mm | Reduced (12.7mm) |
| 9LMST210R | 21.0mm | Reduced (12.7mm) |
| 9LMST220R | 22.0mm | Reduced (12.7mm) |
| 9LMST250R | 25.0mm | Reduced (12.7mm) |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
