Description
TOOLMASTER
Air Hammer Chisel – Vibration Damped — ATH-216R, 3000 Blows per Minute 5 x 10.2mm Round Shank 175mm Long Chisels
Part No: A0391 | Barcode: 9344195365010 | Model: ATH-216R

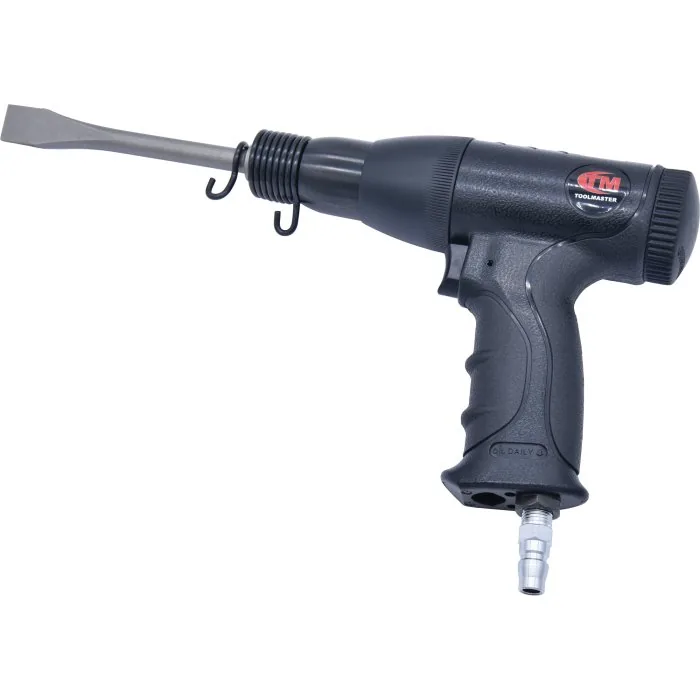

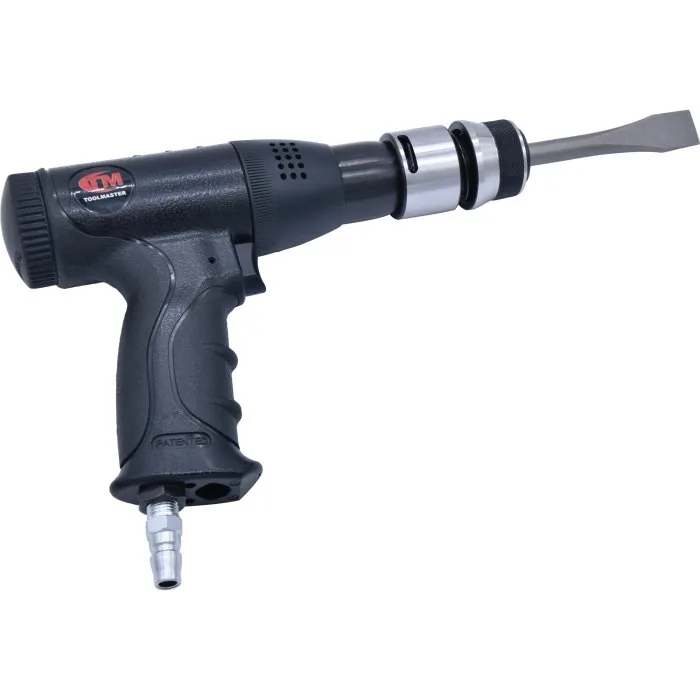

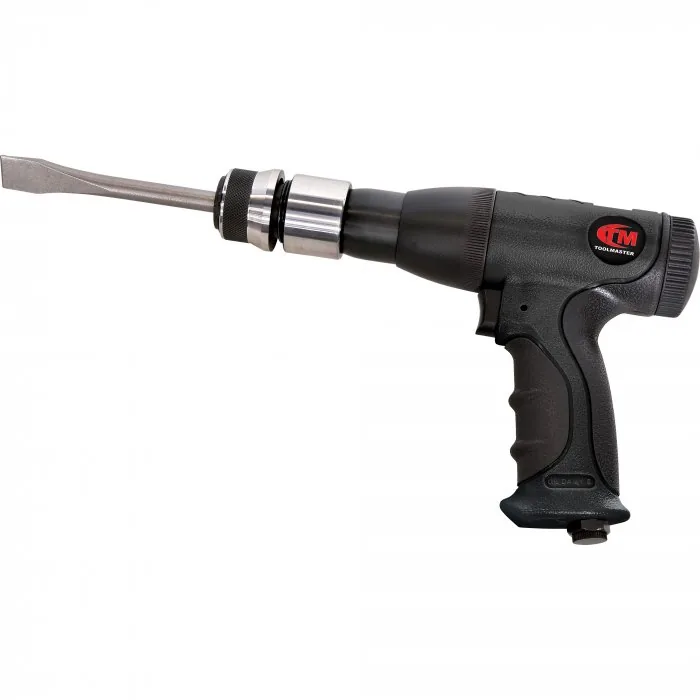

TOOLMASTER ATH-216R Air Hammer Chisel – Vibration Damped (3000 Blows per Minute 5 x 10.2mm Round Shank 175mm Long Chisels). The Toolmaster Vibration Damped Air Hammer is built to industrial standards for the professional user. It features a low weight housing with a rubberised comfort grip.
Model ATH-216R
3000 Blows per Minute
Capacity: 10.2mm Round Shank
Piston Stroke: 62.5 mm
Key Features & Benefits
- Extra length cylinder for harder hitting power
- Lightweight robust aluminium alloy casing with composite body
- Front exhaust designed to clear chips & debris
- Quick action retainer chuck allows user to change chisels quickly
- 10mm Round shank chisels
- 70 degree handle grip designed for user comfort
- High power to weight ratio
About This Product
The Toolmaster Vibration Damped Air Hammer is built to industrial standards for the professional user. It features a low weight housing with a rubberised comfort grip. The unique isolated cylinder design reduces vibration by 50% while the extra length in the cylinder provides harder hitting power. The tool accepts standard 10mm round shank chisels designed for cutting metals, shearing bolts and rivets and driving out pins used on cars, trucks, recreational vehicles and structural maintenance and repair. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code A0391) for collection in store.

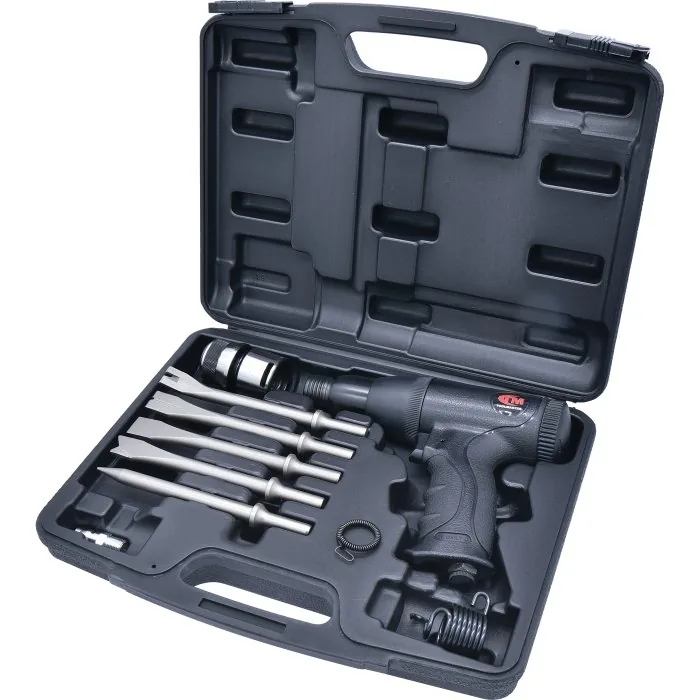

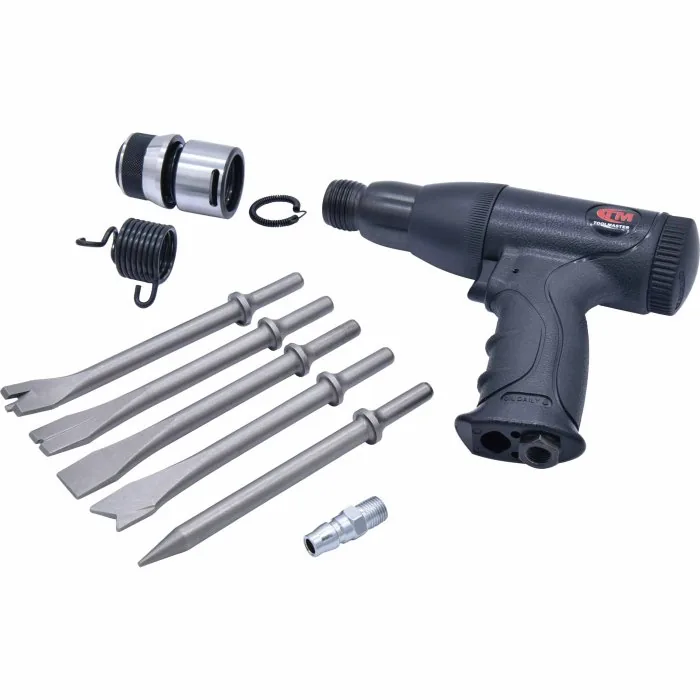

In the Box

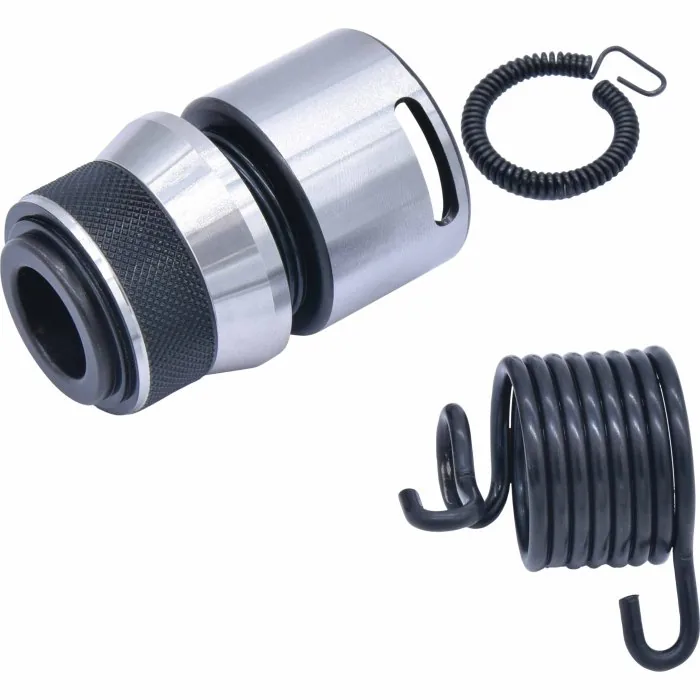

- 1 x Quick action retainer chuck
- 1 x Spring retainer

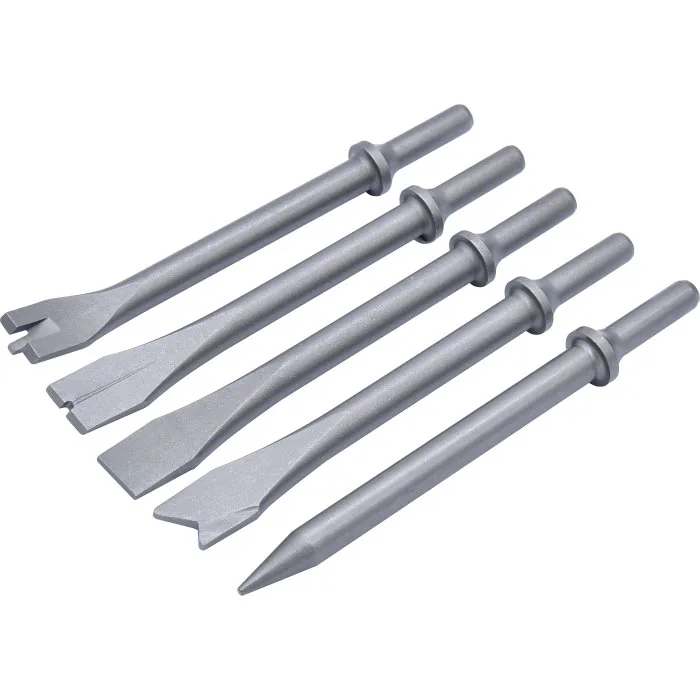

- 5 x Round shank 175mm long chisels
- Claw ripper & panel cutter
- 20mm flat
- Spot weld cutter
- Tapered point
- Single blade panel cutter
- High-Flow 1/4” BSPT air fitting

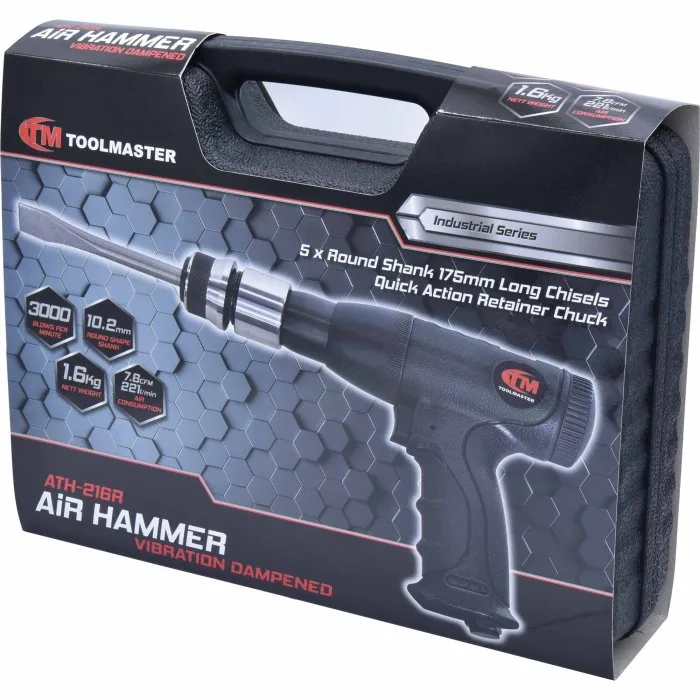

- Blow mould case
Product Specifications
| Specification | Detail |
|---|---|
| Type | Air Hammer Chisel |
| Capacity | 10.2mm Round Shank |
| Piston Stroke (mm) | 62.5 |
| Blows Per Minute (BPM) | 3000 |
| Air Consumption (CFM/ L/min) | 7.8 / 221 |
| Vibration Level (m/s²) | 8.49 |
| Sound Pressure Level (dBA) | 112 |
| Air Pressure (psi) | 90 |
| Air inlet (inch) | 1/4″ BSPT |
| Length (mm) | 216 |
| Weight (Kg) | 1.6 |
