HAFCO

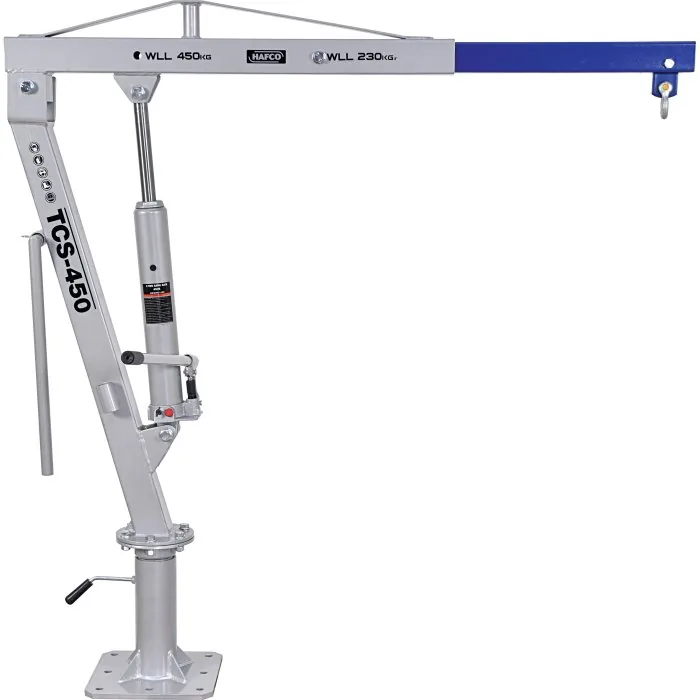

Swivel Crane – Truck or Ute — TCS-450, 450kg Lifting Capacity 2350mm Max. Lift Height
Part No: A353 | Barcode: 9344195008344 | Model: TCS-450
HAFCO TCS-450 Swivel Crane – Truck or Ute (450kg Lifting Capacity 2350mm Max. Lift Height). Keep it in your workshop, or the back of your ute or truck
Model TCS-450
450kg Lifting Capacity
2350mm Max. Lift Height
Single Line Lifting Capacity: 450 kg
Key Features & Benefits
- Heavy duty construction
- 450kg & 230kg lifting positions

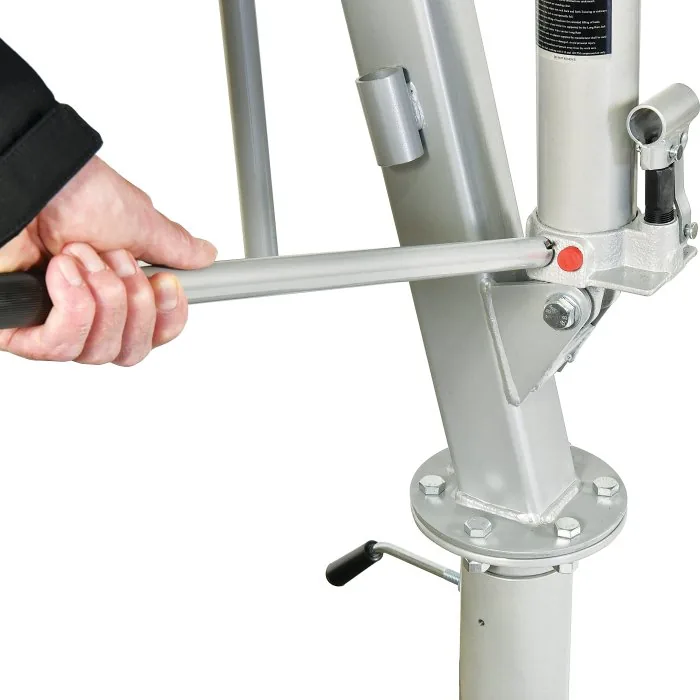

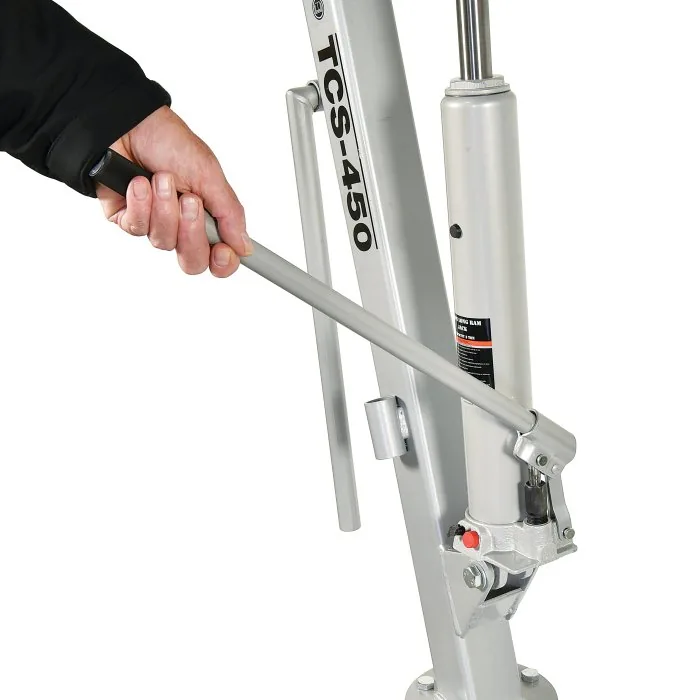

- Manual hydraulic lifting pump
- 360° continuous manual rotation

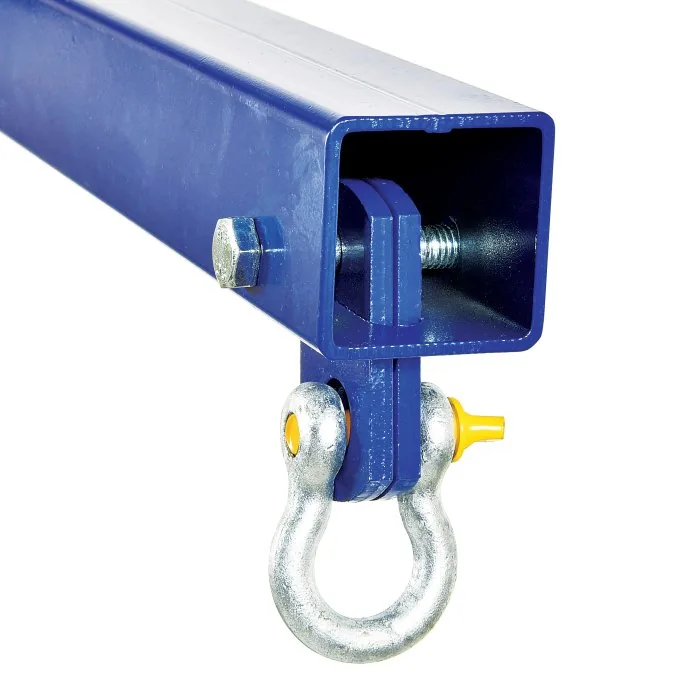

- Supplied with a load rated bow shackle

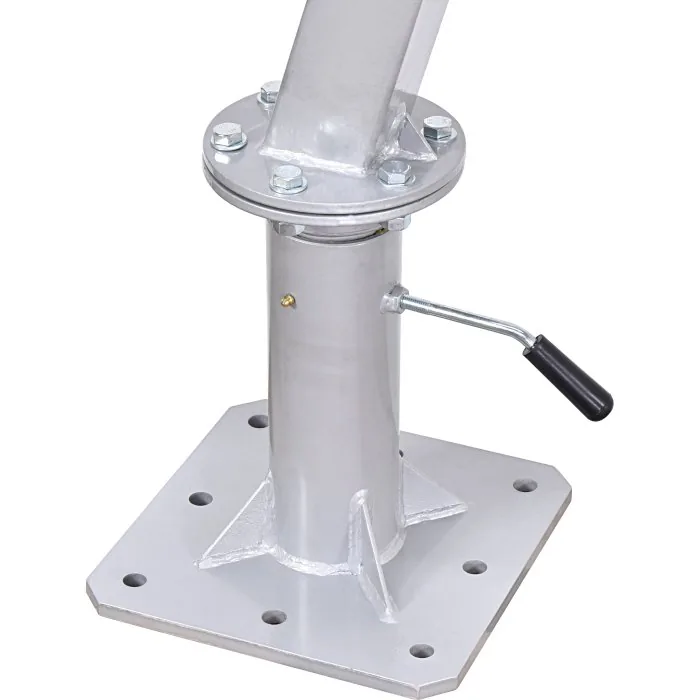

- 268 x 268mm base plate

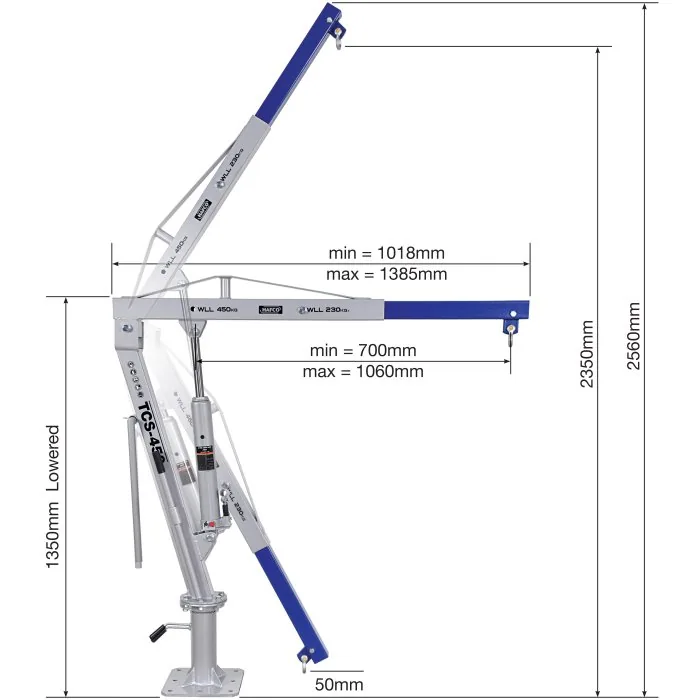

- Lifting height (Base to Lifting Shackle): 2350mm

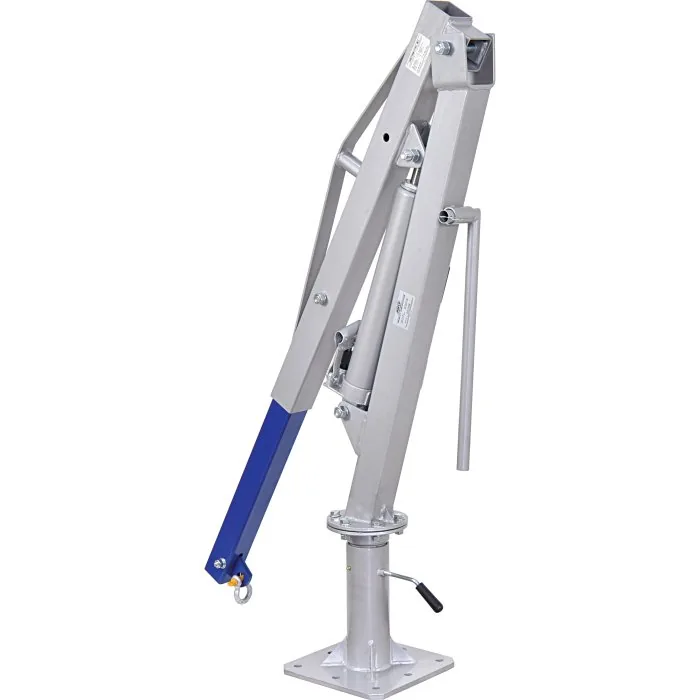

- Storage height folded (from base): 1350mm
- 2 position telescoping boom: 450kg @ 700mm Horizontal Throat, 230kg @ 1060mm Horizontal Throat
About This Product
Keep it in your workshop, or the back of your ute or truck This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code A353) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Hydraulic Ram (Tonne) | 3 |
| Single Line Lifting Capacity (kg) | 450 |
| Lifting System (Type) | Hydraulic – Manual |
| Lift Capacity Pin Locations (Kg) | 450 & 230 |
| Steel Box Section Size – Vertical Support (mm) | 70 x 70 |
| Steel Box Section Size – Extension Arm Support (mm) | 70 x 70 |
| Max. Lift Height (Base to Lifting Shackle) (mm) | 2350 |
| Min. Lift Height (Base to Lifting Shackle) (mm) | 50 |
| Overall Height – Boom at Lowest Position (mm) | 1350 |
| Nett Weight (kg) | 48.5 |
