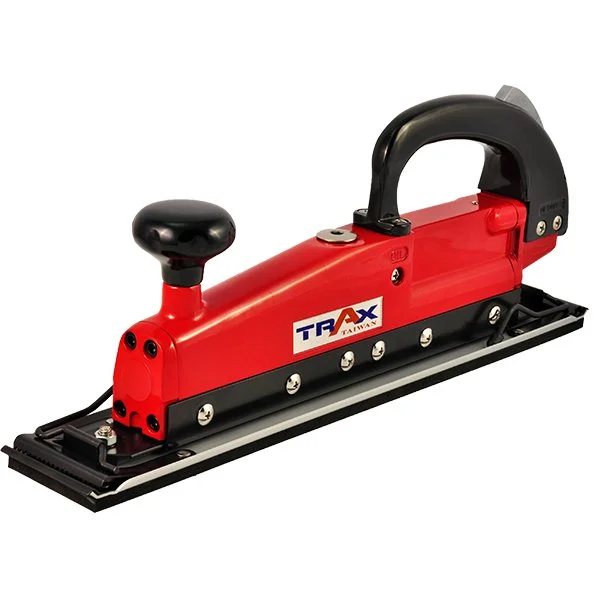

Trax ARX-468 In-Line Dual Piston Air Sander — 420mm
Part No: ARX-468 | Barcode: 4712274861626
The Trax ARX-468 is a straight-line (file board) air sander that levels body filler, primer and panels dead flat. A dual-piston drive gives a smooth 25mm stroke at 2,200 strokes per minute across a long 63 x 406mm pad, so it blocks and feathers large areas evenly instead of chasing high and low spots. It’s a core tool for panel beating and fabrication finishing.
2,200 SPM
25mm Stroke
63 x 406mm Pad
Dual Piston
8 CFM
420mm Length
Suitable For
Body Filler
Primer & Panels
Feathering Edges
Blocking Large Areas
Fabrication Finishing
Key Features & Benefits
- Long 63 x 406mm file pad — spans high and low spots to level filler and panels flat, where a short pad follows the imperfections.
- Dual-piston drive — balanced twin pistons give a smoother straight-line stroke with less vibration and hand fatigue.
- 2,200 SPM at 25mm stroke — fast, long stroke removes material quickly while keeping the finish even for blocking.
- Straight-line action — back-and-forth motion cuts flat rather than swirling, ideal for final leveling before paint.
- Moderate 8 CFM demand — runs from a typical panel-shop compressor without starving other tools.
When to Use This Sander
Use the ARX-468 for the leveling stages of panel work — knocking down body filler, blocking primer and feathering paint edges over large flat and gently curved panels. It suits smash repairers and fabricators. For contoured or small areas a random-orbital sander is more manoeuvrable; the file board is for getting panels flat.
Pro Tip: Keep the board moving in long overlapping passes and let the full pad length ride the panel — short jabbing strokes cut hollows. Change to a finer grit before the previous scratches disappear to avoid loading the paper on high-build filler.
Authorised Australian Dealer — This product is sourced directly from Trax Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | SPM | Stroke | Pad | Air Consumption |
|---|---|---|---|---|
| ARX-468 ★ | 2,200 | 25mm | 63 x 406mm | 8 CFM |
