Description
HAFCO-METALMASTER

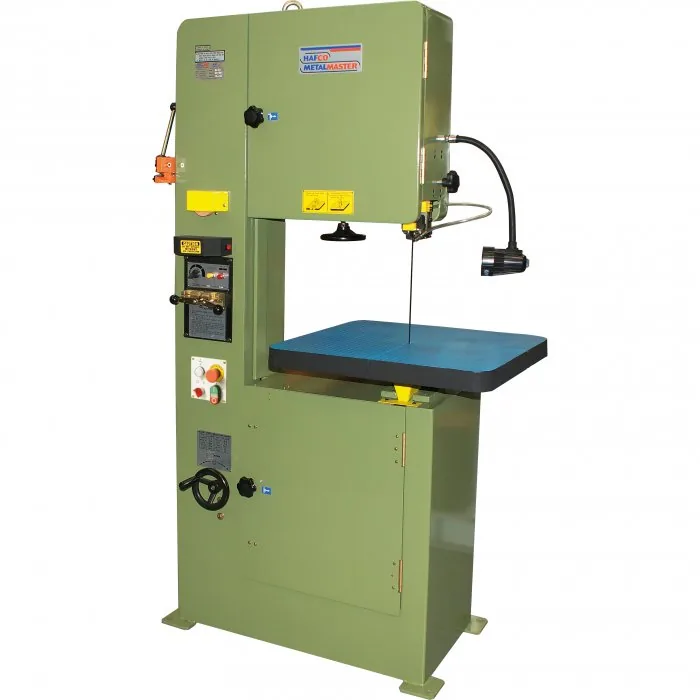

Metal Cutting Vertical Band Saw — VB-450, Includes Blade Welding Station & Work Light 455 x 255mm (W x H) rectangular capacity
Part No: B012 | Barcode: 9344195023743 | Model: VB-450
HAFCO-METALMASTER VB-450 Metal Cutting Vertical Band Saw (Includes Blade Welding Station & Work Light 455 x 255mm (W x H) rectangular capacity). The VB-450 vertical bandsaw is built with a robust steel frame to ensure exceptional rigidity during cutting operations. Its variable blade speed control, conveniently…
Model VB-450
455 x 255mm (W x H) rectangular capacity
Throat Capacity: 455 mm
Height Capacity: 255 mm
Table Size: 500 x 600 mm
Speeds: 25 – 115
Welder Capacity: 3 – 16 mm
Key Features & Benefits
- 455 x 255mm (W x H) rectangular capacity
- Cutting speeds are infinitely variable

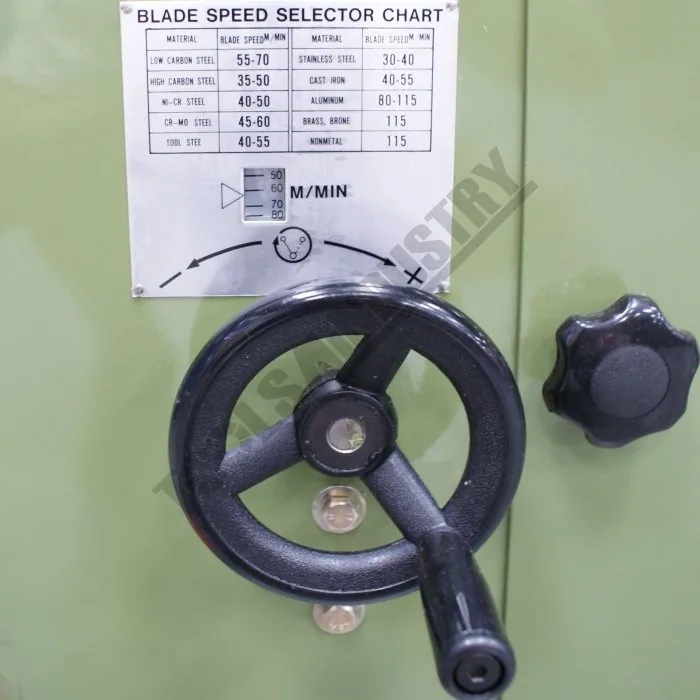

- Variable blade speed is adjusted via hand wheel

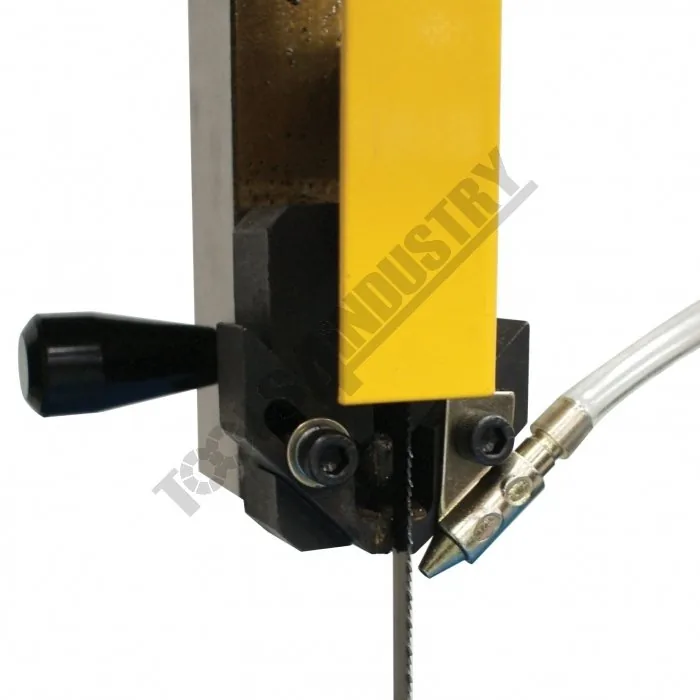

- Adjustable blade guides top & bottom (tungsten tipped)
- Top blade guide is adjustable by hand wheel
- Blade tensioning via hand wheel
- Robust steel frame and cast iron table
- Table tilts ±15º in all four directions

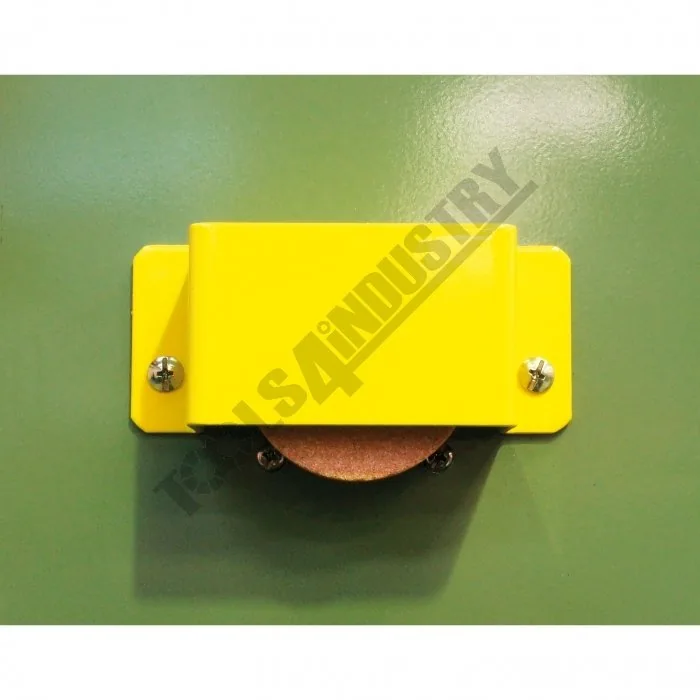

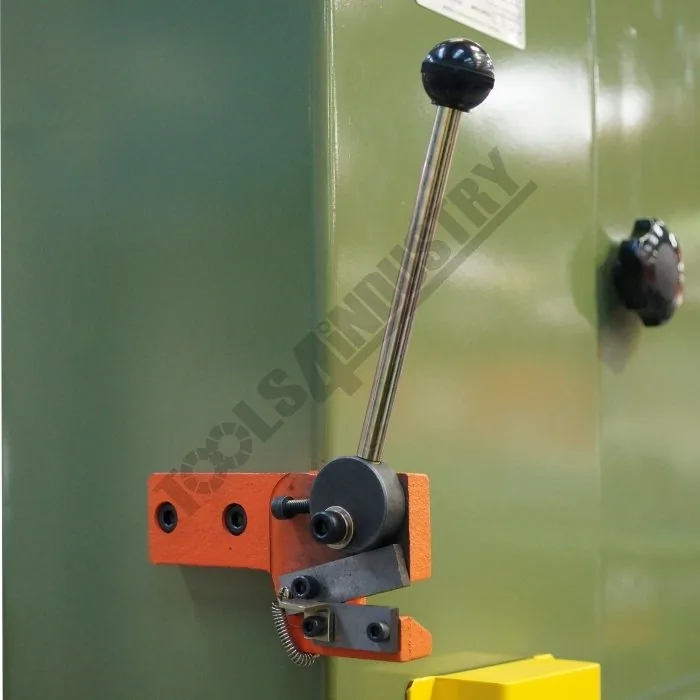

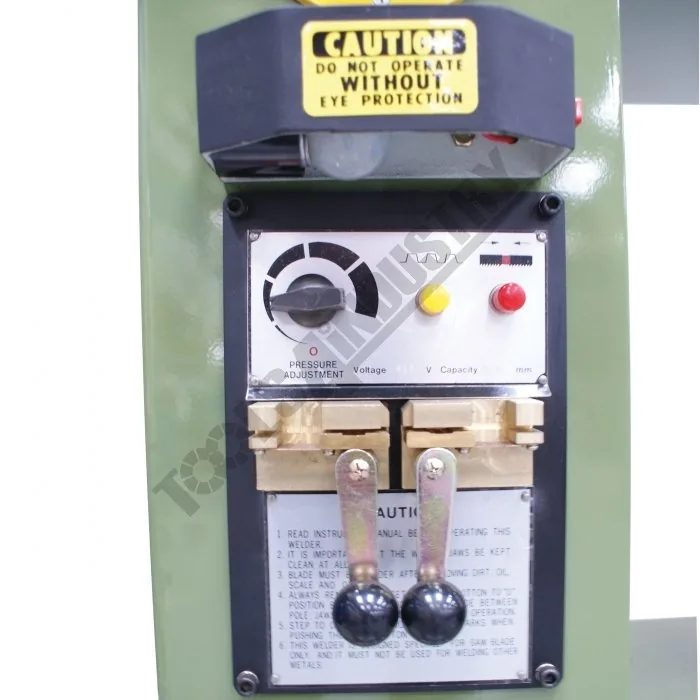

- Blade welding unit with annealing device, blade shear, & grinder fitted to front of machine for convenient blade welding
- Blade air blower clears swarf away

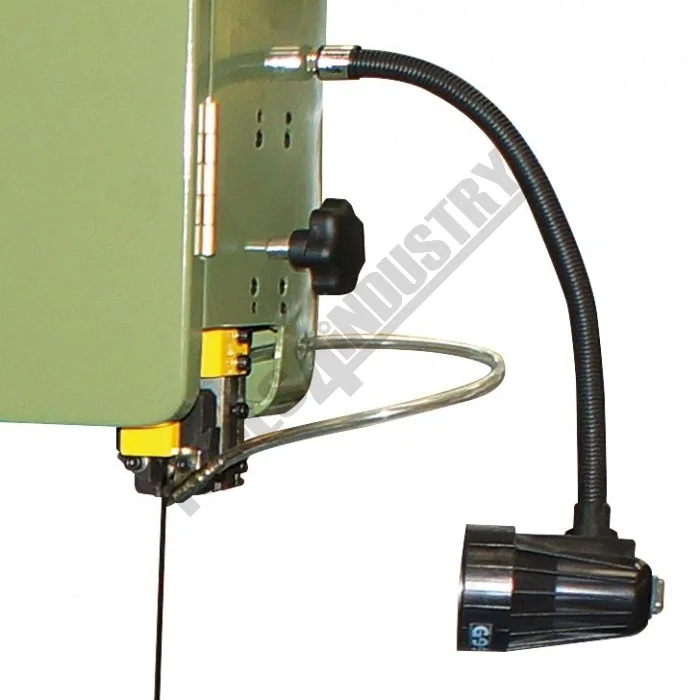

- Includes flexible work light
About This Product
The VB-450 vertical bandsaw is built with a robust steel frame to ensure exceptional rigidity during cutting operations. Its variable blade speed control, conveniently located on the front lower panel, can be easily adjusted with a simple turn of the dial, making it well-equipped to tackle even the toughest cutting tasks. The generously sized, durable cast-iron table tilts left to right and front to back, enabling precise angle cuts of up to 15º and offering flexibility for achieving the squarest cuts possible. This vibration-free table is designed for long-lasting reliability and stability, ensuring optimal performance for years to come. This all-in-one bandsaw package is equipped with a built-in blade shear, welding station, grinder, swarf air blower, and work light. The blade welding station allows you to weld your own blades, saving valuable time and money. Additionally, it enables you to perform inside cuts by welding the blade directly inside the workpiece and then mounting it onto the machine. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code B012) for collection in store.
In the Box
- Blade butt welder
- Grinder
- Shears
- Work light
- Blade air blower
Product Specifications
| Specification | Detail |
|---|---|
| Throat Capacity (mm) | 455 |
| Height Capacity (mm) | 255 |
| Table Size (mm) | 500 x 600 |
| Speeds (m/min) | 25 – 115 |
| Blade Length (mm) | 3525 |
| Welder Capacity (mm) | 3 – 16 |
| Motor (kW / hp) | 0.75 / 1 |
| Voltage / Amperage (V / amp) | 415 |
| Nett Weight (kg) | 350 |
