McDIVEN

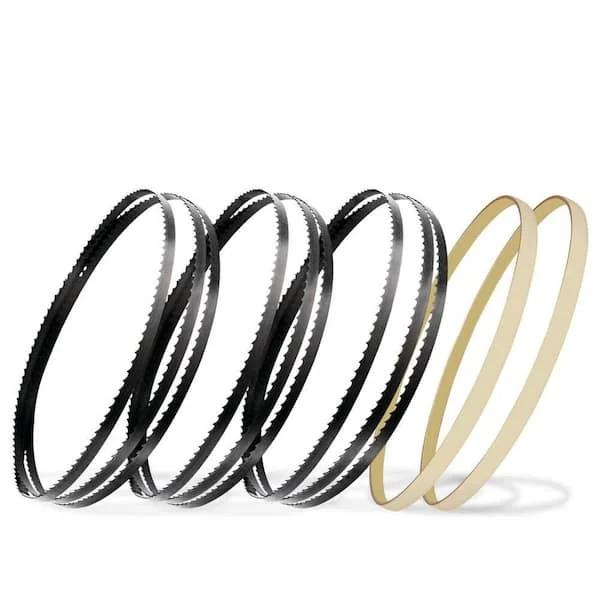

McDIVEN Wood Bandsaw Blade — 1790mm × 6mm × 6 TPI
Size: 1790mm × 6mm × 6 TPI | Barcode: 31372
McDIVEN wood-cutting bandsaw blade welded to order for common Australian bandsaw machines. This 1790mm loop with a 6mm blade width and 6 TPI hook-tooth pattern is ground and set for fast, clean cuts in solid timber, plywood, MDF, and panel stock. Fits a wide range of two-wheel and three-wheel wood bandsaws.
Hardened Spring Steel
Hook Tooth Pattern
1790mm Loop
6mm Width
6 TPI
Welded in Geelong
Suitable For
Solid Timber
Plywood & MDF
Softwood & Hardwood
Particleboard
Key Features & Benefits
- Hook tooth geometry — positive rake angle and deep gullets clear chips fast in timber, preventing blade bind and heat build-up.
- Hardened and tempered spring steel — flexible blade body resists fatigue around the wheels while the heat-treated tooth tips hold a keen edge.
- 6 teeth per inch — tuned for the balance of cutting speed and finish quality expected in general-purpose wood bandsaw work.
- Welded to exact loop length — 1790mm continuous loop sized for common bandsaw models, joined with a precision butt weld and dressed for smooth tracking.
- 6mm blade width — suitable for both straight rip cuts and moderate-radius curves in resawing, scrolling, and general shop use.
- Locally welded — finished and tensioned in Victoria for quick replacement and consistent quality on every loop.
When to Use This Blade
Use this McDIVEN wood blade for everyday timber cutting on joinery, cabinetmaking, and general woodworking bandsaws. The 6 TPI hook tooth is a sweet spot for resawing boards, curve cutting, and breaking down rough stock without burning. If you cut mostly thin stock under 25mm, consider a finer-tooth blade; for deep resawing in hardwood, the coarser variants in the table below clear chips faster.
Full Wood Blade Range — Compare Sizes
McDIVEN wood bandsaw blades — all available loop lengths, widths, and tooth counts. The highlighted row marks the variant you are viewing.
| Part Reference | Loop Length | Blade Width | Tooth Count |
|---|---|---|---|
| MCD-W-4×10-6T | 4mm | 10mm | 6 TPI |
| MCD-W-59-1-4in-6-6T | 59-1/4″ | 6mm | 6 TPI |
| MCD-W-1425×6-6T | 1425mm | 6mm | 6 TPI |
| MCD-W-1425×10-6T | 1425mm | 10mm | 6 TPI |
| MCD-W-1710×6-6T | 1710mm | 6mm | 6 TPI |
| MCD-W-1710×10-14T | 1710mm | 10mm | 14 TPI |
| MCD-W-1710×10-6T | 1710mm | 10mm | 6 TPI |
| MCD-W-1790×6-6T ★ | 1790mm | 6mm | 6 TPI |
| MCD-W-1790×10-14T | 1790mm | 10mm | 14 TPI |
| MCD-W-1790×10-6T | 1790mm | 10mm | 6 TPI |
| MCD-W-1826×6-6T | 1826mm | 6mm | 6 TPI |
| MCD-W-1826×10-6T | 1826mm | 10mm | 6 TPI |
| MCD-W-Blade-Bandsaw-Wood-1826×12-5mm-3Tpi | 1826mm | 12.5mm | 3 TPI |
| MCD-W-2240×6-6T | 2240mm | 6mm | 6 TPI |
| MCD-W-2240×10-6T | 2240mm | 10mm | 6 TPI |
| MCD-W-2240×12-6T | 2240mm | 12mm | 6 TPI |
| MCD-W-2240×13-4T | 2240mm | 13mm | 4 TPI |
| MCD-W-2345×6-6T | 2345mm | 6mm | 6 TPI |
| MCD-W-2345×10-6T | 2345mm | 10mm | 6 TPI |
| MCD-W-2345×12-6T | 2345mm | 12mm | 6 TPI |
| MCD-W-2400×6-6T | 2400mm | 6mm | 6 TPI |
| MCD-W-2400×10-6T | 2400mm | 10mm | 6 TPI |
| MCD-W-2400×12-6T | 2400mm | 12mm | 6 TPI |
| MCD-W-2480×6-6T | 2480mm | 6mm | 6 TPI |
| MCD-W-2480×10-6T | 2480mm | 10mm | 6 TPI |
| MCD-W-2480×12-6T | 2480mm | 12mm | 6 TPI |
| MCD-W-2560×6-6T | 2560mm | 6mm | 6 TPI |
| MCD-W-2560×10-6T | 2560mm | 10mm | 6 TPI |
| MCD-W-2560×13-6T | 2560mm | 13mm | 6 TPI |
★ You are viewing the highlighted variant. All McDIVEN wood blades are welded to loop length on order.
