Description
TOOLMASTER

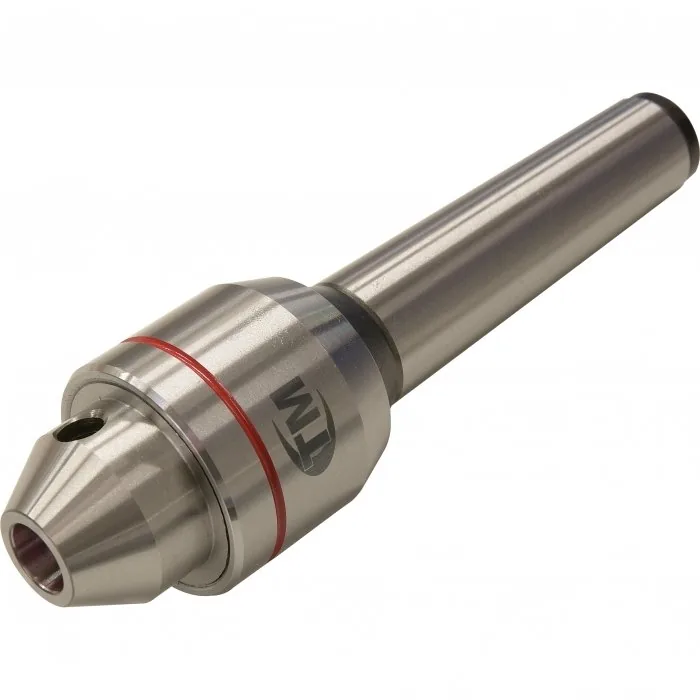

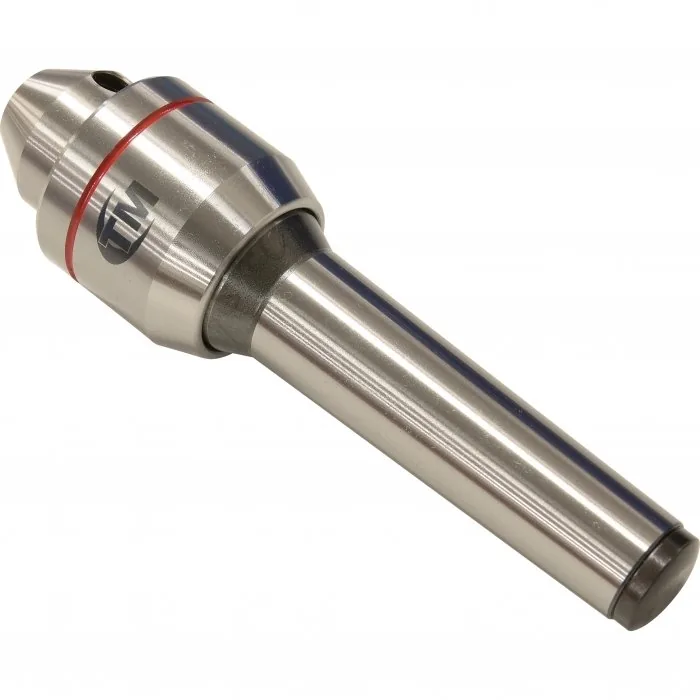

3MT Live Centre Set – Interchangeable Centring Tips — Taiwanese Precision Quality
Part No: C0635 | Barcode: 9344195183362
TOOLMASTER 3MT Live Centre Set – Interchangeable Centring Tips (Taiwanese Precision Quality). Toolmaster live centre sets are fitted with needle thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and…
Taiwanese Precision Quality
Maximum Speed: 3500 rpm
Maximum Load Capacity: 400 kg
Key Features & Benefits

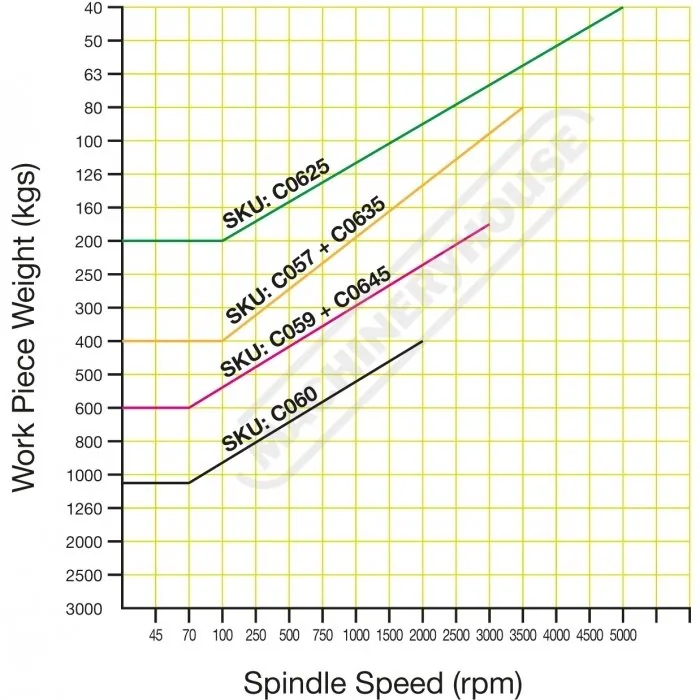

- Maximum Speed: 3500rpm @ 80kg
- Maximum Load: 400kg @ 100rpm
- Hardened to HRC 60°
- Made from alloy steel
- Assembled with thrust, needle & ball bearings

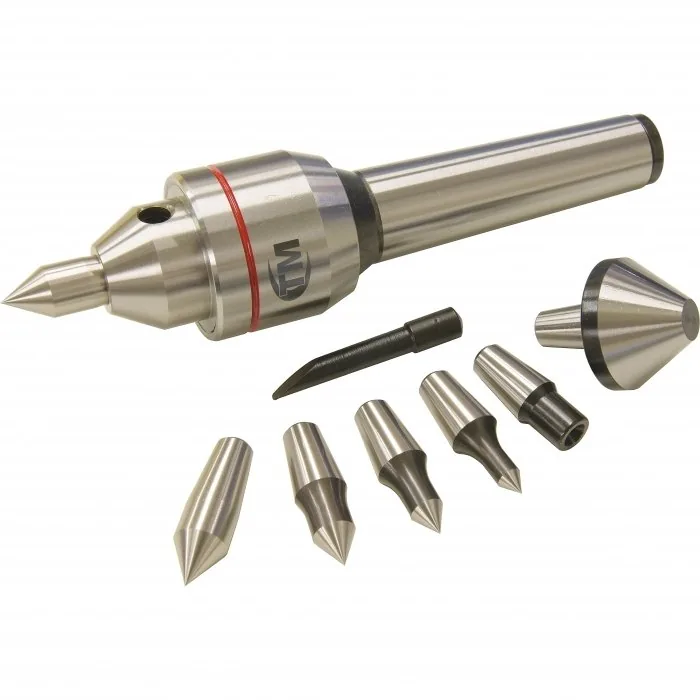

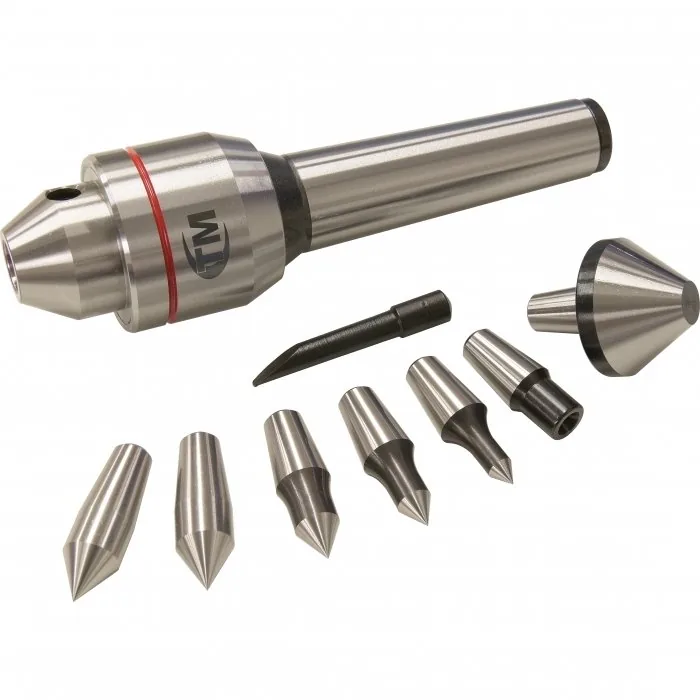

- 7 x interchangeable centre tips
About This Product
Toolmaster live centre sets are fitted with needle thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C0635) for collection in store.
In the Box

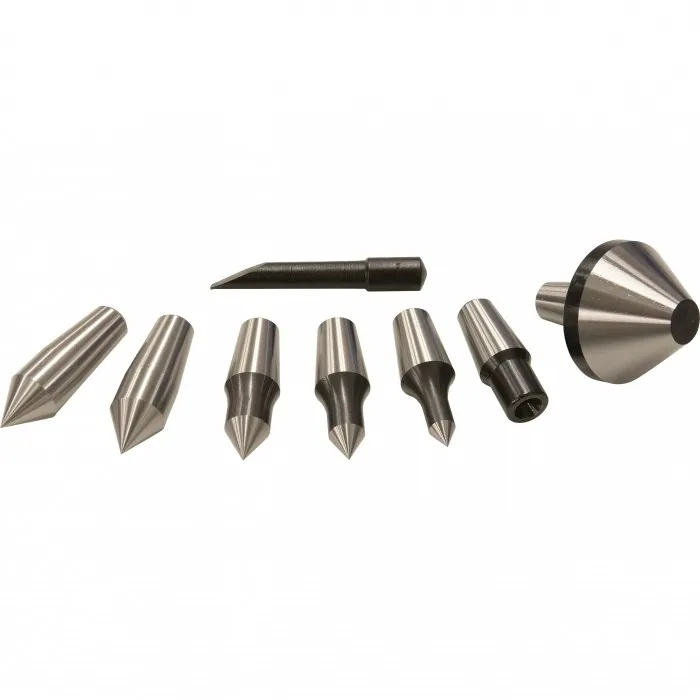

- Interchangeable centre tips:
- 2 x Standard – Ø12.6mm
- 1 x Extended point – Ø6mm
- 1 x Extended point – Ø8mm
- 1 x Extended point – Ø10mm
- 1 x Female cone – Ø6mm
- 1 x Pipe – Ø11 ~ Ø32mm
Product Specifications
| Specification | Detail |
|---|---|
| Taper (MT) | 3MT |
| Maximum Speed (rpm) | 3500 |
| Maximum Load Capacity (kg) | 400 |
| θ Angle | 60 |
| A | 23 |
| B | 44 |
| C | 86 |
| D | 41 |
| D1 | 30 |
| L | 153 |
| Nett Weight (kg) | 1.2 |
