Description
TOOLMASTER

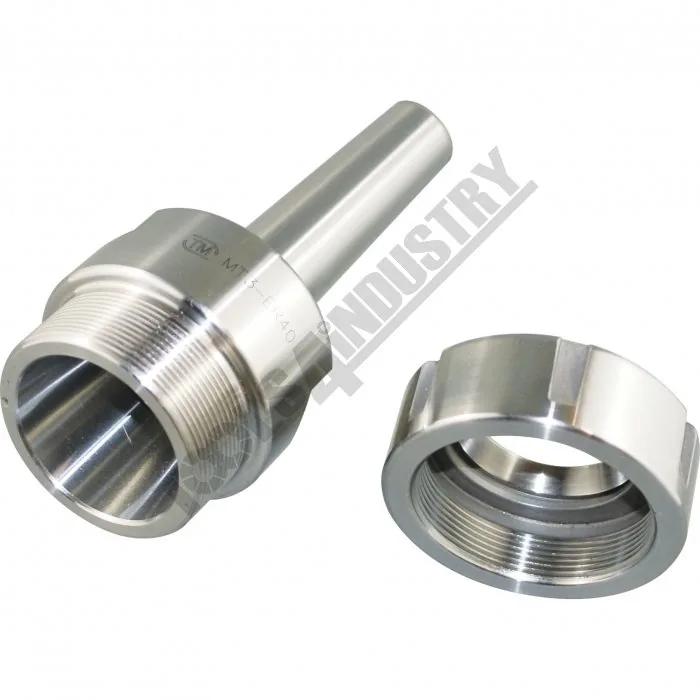

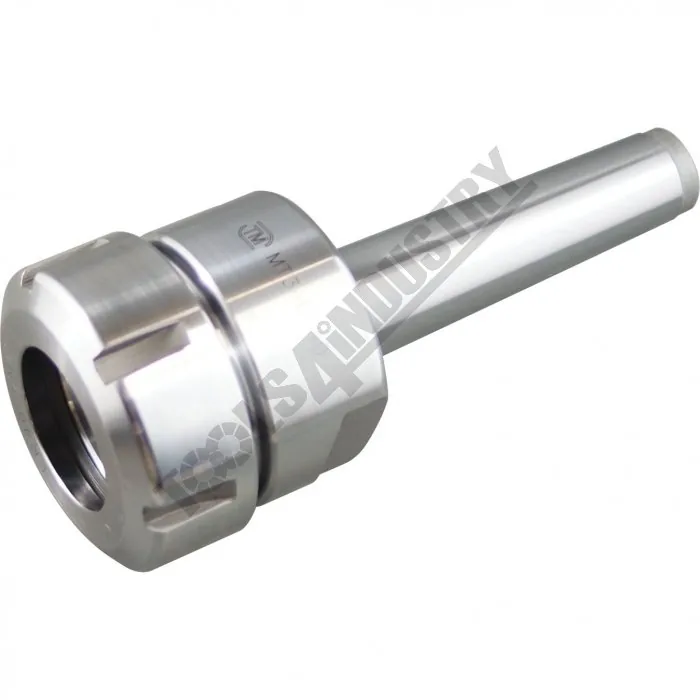

Collet Chuck – 3MT X ER40 — Ø3-Ø26mm
Part No: C1054 | Barcode: 9344195005879 | Model: 3MT x ER40
TOOLMASTER 3MT x ER40 Collet Chuck – 3MT X ER40 (Ø3-Ø26mm). All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact) Maintain a high level of accuracy.
Model 3MT x ER40
Ø3-Ø26mm
Maximum Capacity: 26 mm
Key Features & Benefits
- Precision Ground
- Rated to 10,000rpm
About This Product
All ER collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact) Maintain a high level of accuracy. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C1054) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Collet Type | ER40 |
| Maximum Capacity (mm) | 26 |
| Taper (J) | 3MT |
| Draw Bar (G) | 1/2″ Whitworth |
| L (mm) | 70 |
| ØD (mm) | 63 |
| Nett Weight (kg) | 1.3 |
