Description
HAFCO

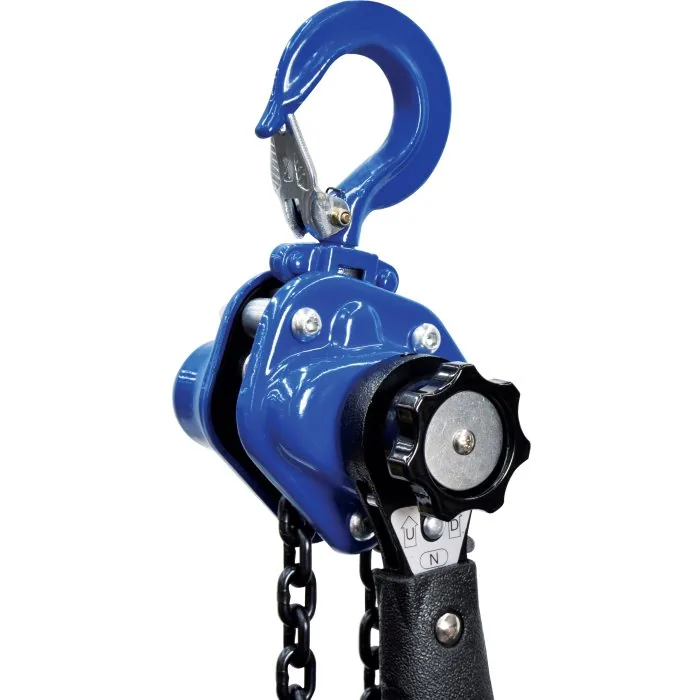

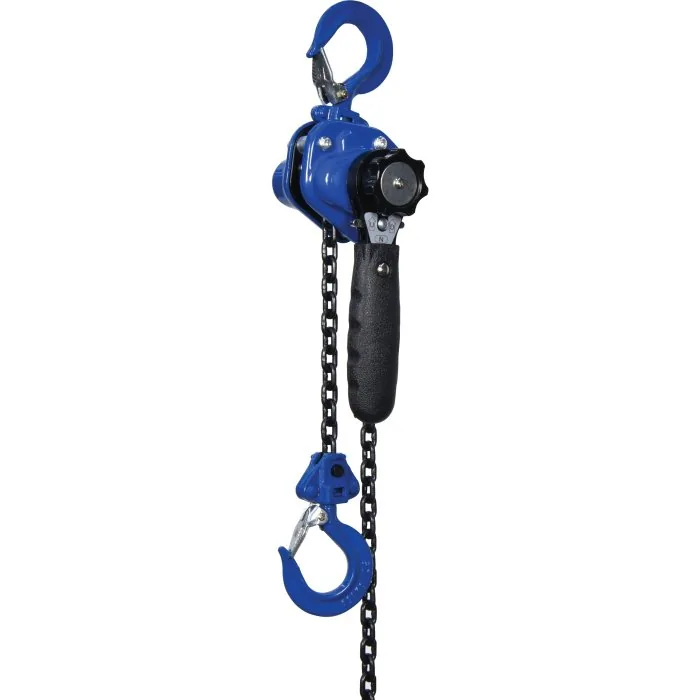

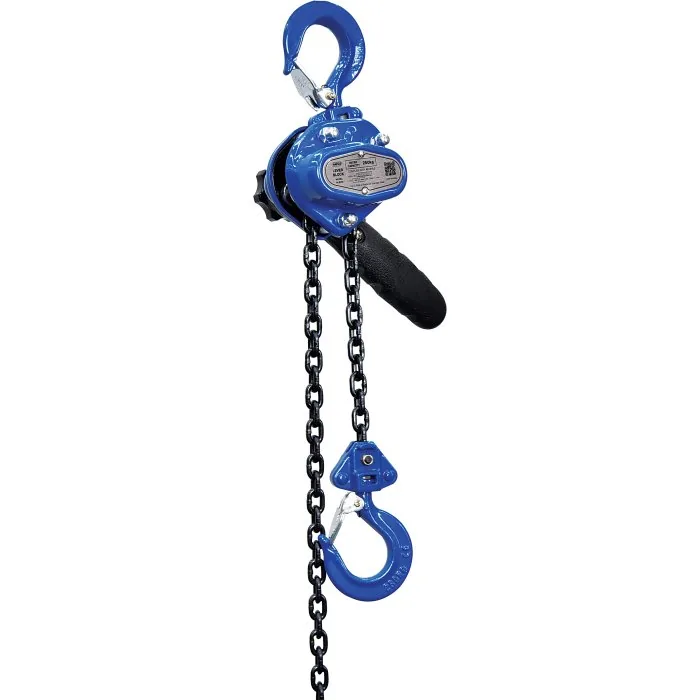

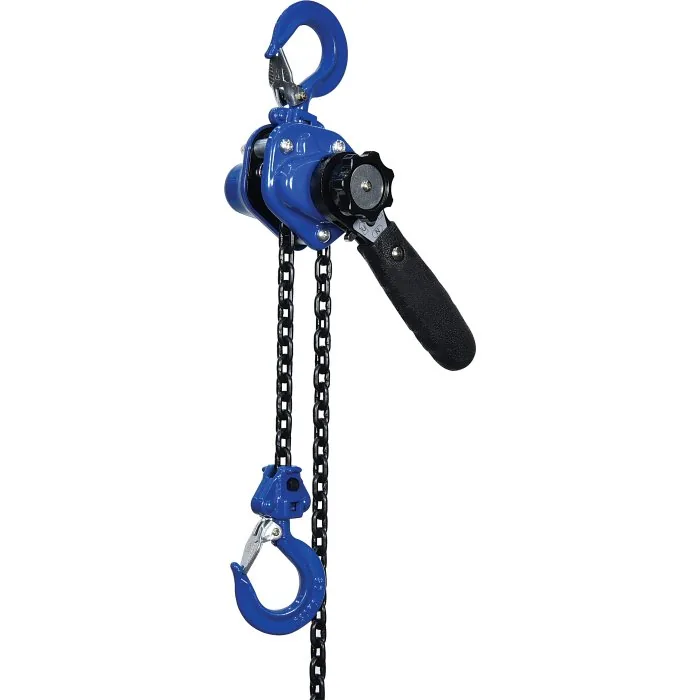

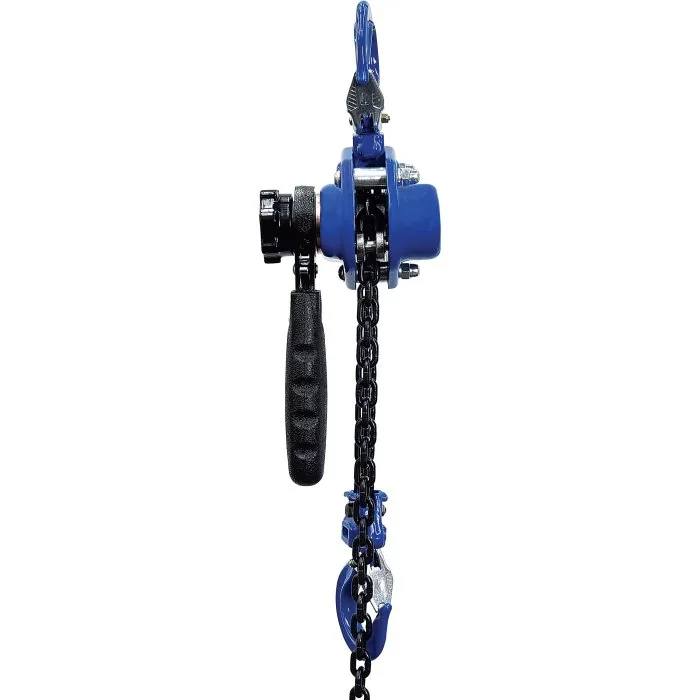

Lever Block — HLB250, 250kg x 1.5 Metre
Part No: C155 | Barcode: 9344195359538 | Model: HLB250
HAFCO HLB250 Lever Block (250kg x 1.5 Metre). HAFCO 250kg Lever Blocks are lightweight, compact, and ideal for rigging, construction, and mining applications. They feature a Grade 80 alloy load chain and a robust, space-saving steel body.
Model HLB250
250kg x 1.5 Metre
Lift Capacity: 250 / 0.25
Key Features & Benefits
- Rated capacity: 250kg
- Ergonomically compact design
- Built for durability in harsh and rugged environments
- Quick and easy chain adjustment for fast load positioning
- Suitable for use in underground mining and heavy-duty applications

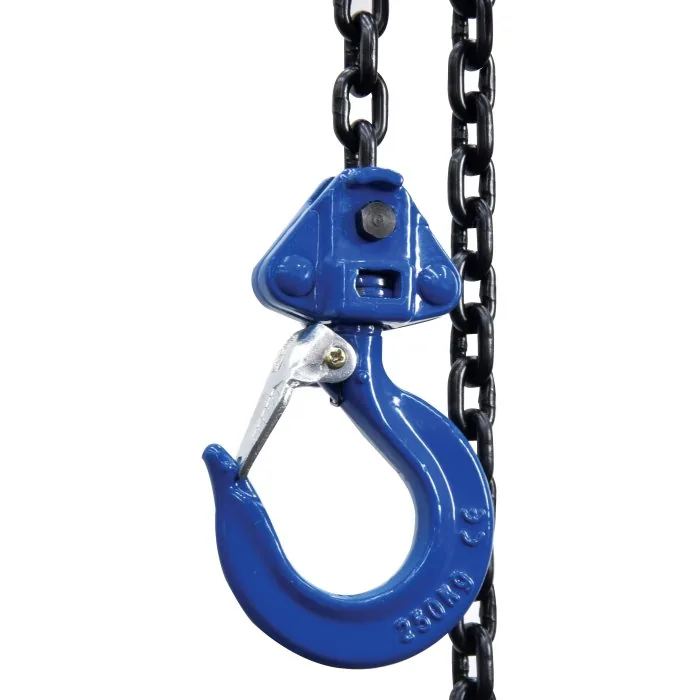

- Ball bearing-mounted to bottom hook enable smooth rotation under load
- Tested at a NATA-accredited facility in accordance with AS 1418.2
- Fully enclosed design with sealed gear and brake systems for superior protection and durability
- The short arm lever and precision gear ratio allow minimal effort to lift heavy loads with maximum
- HAFCO ID plates and rivets are made from stainless steel a non-conductive material for added safety and durability
- Each HAFCO Lever Block is load-tested to its rated capacity and supplied with a HAFCO test certificate, traceable to its stamped identification side plate.
- Standard Lift -(Metres) 1.5
- Test Load – (Tonne) 0.25
- Headroom – (H mm) 230
- Effort on lever to lift full load – (N) 200
- No. of chain falls – 1
- Chain Size (mm) – 4×12
- Length of lever handle – (L) 160mm
About This Product
HAFCO 250kg Lever Blocks are lightweight, compact, and ideal for rigging, construction, and mining applications. They feature a Grade 80 alloy load chain and a robust, space-saving steel body. The ID plates are made from stainless steel, and the unit contains no aluminium components. Each unit is AS 1418.2 compliant and supplied with a test certificate for quality assurance This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C155) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Lift Capacity (kg / Tonne) | 250 / 0.25 |
| Lift Height (Metre) | 1.5 |
| Weight (kg) | 2.3 |
