TOOLMASTER

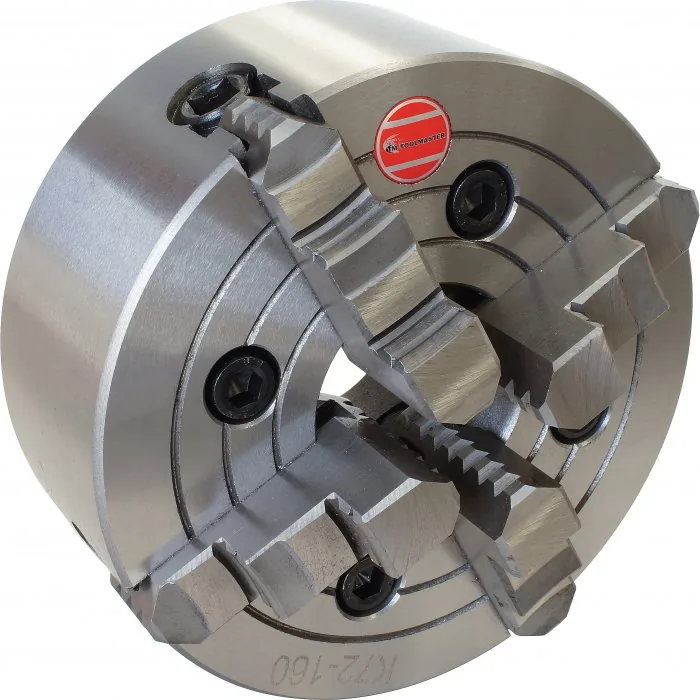

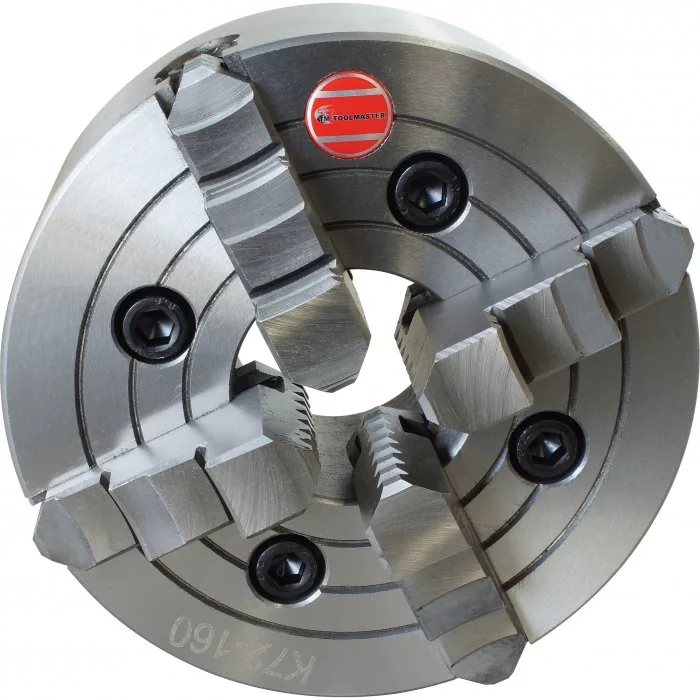

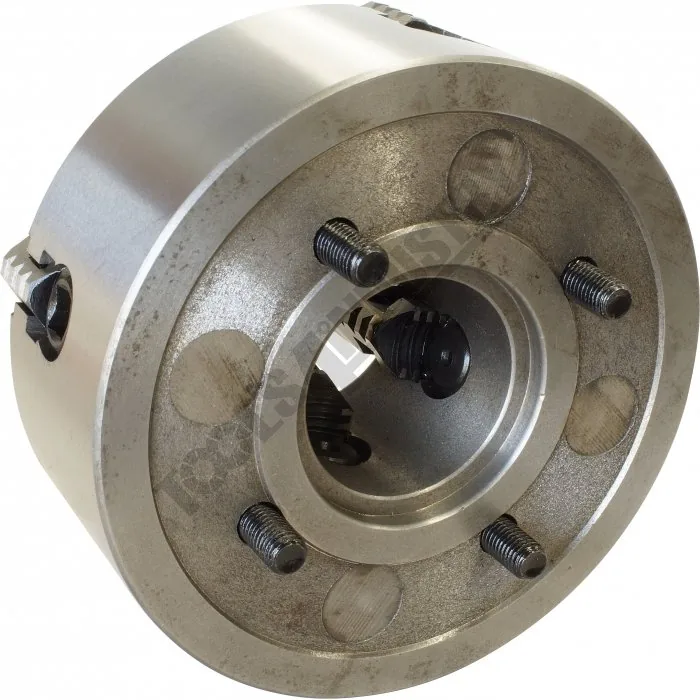

4 Jaw Independent Lathe Chuck — K72-160, Ø160mm Back Plate Mount
Part No: C250 | Barcode: 9344195012495 | Model: K72-160
TOOLMASTER K72-160 4 Jaw Independent Lathe Chuck (Ø160mm Back Plate Mount). Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened
Model K72-160
Ø160mm
Back Plate Mount
Speed: 2500 rpm
Key Features & Benefits
- Front Mounting
About This Product
Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C250) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size | Ø160 |
| External Jaw Range (mm) | 50 – 160 |
| Internal Jaw Range (mm) | 8 – 80 |
| Speed (rpm) | 2500 |
| D1 (mm) | 65 |
| D2 (mm) | 95 |
| D3 (mm) | 55 |
| H1 (mm) | 65 |
| h (mm) | 5 |
| z-d (mm) | 4 – M10 |
| Nett Weight (kg) | 9.2 |
