TOOLMASTER

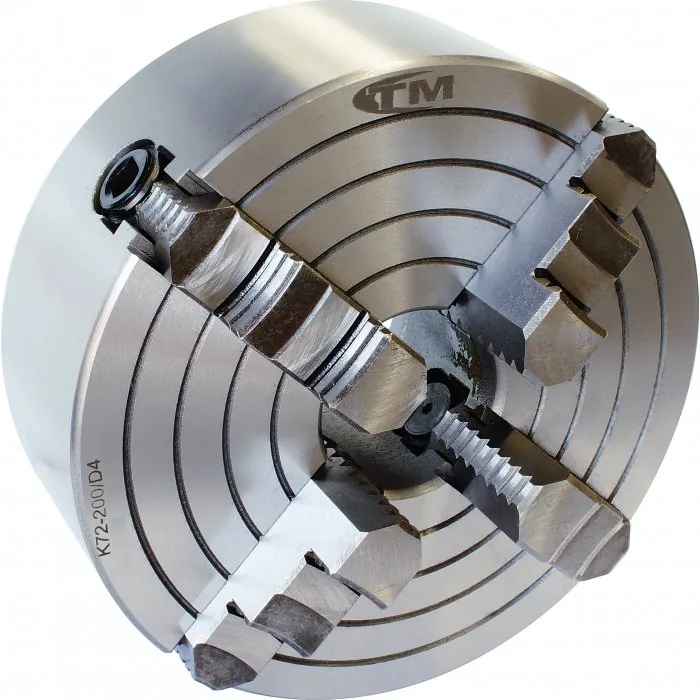

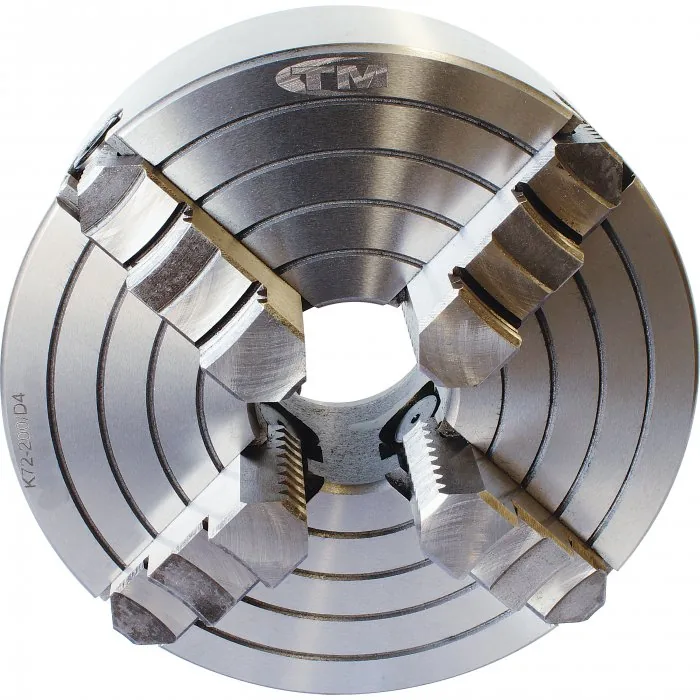

4 Jaw Independent Lathe Chuck — K72-200/D1-4, Ø200mm D1-4 Camlock Mount
Part No: C252 | Barcode: 9344195012518 | Model: K72-200/D1-4

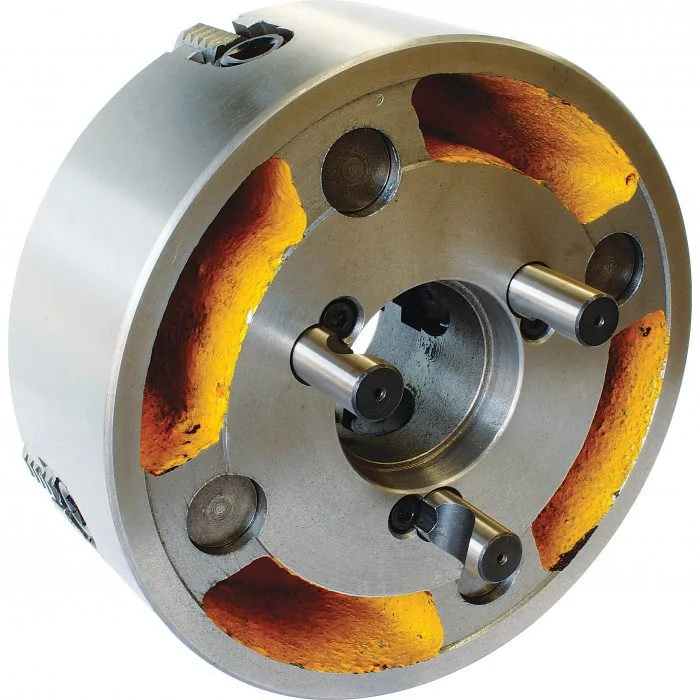

TOOLMASTER K72-200/D1-4 4 Jaw Independent Lathe Chuck (Ø200mm D1-4 Camlock Mount). Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimize wear Operating screws are made from alloy steel and case-hardened. Supplied with camlock pins, 1 set of jaws and wrench.
Model K72-200/D1-4
Ø200mm
D1-4 Camlock Mount
Speed: 2000 rpm
About This Product
Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimize wear Operating screws are made from alloy steel and case-hardened. Supplied with camlock pins, 1 set of jaws and wrench. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C252) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø200 |
| Camlock | D1-4 |
| Speed (rpm) | 2000 |
| D1 (mm) | 82.5 |
| D2 (mm) | 104.8 |
| D3 (mm) | 56 |
| H1 (mm) | 75 |
| h (mm) | 12 |
| Nett Weight (kg) | 15 |
