TOOLMASTER

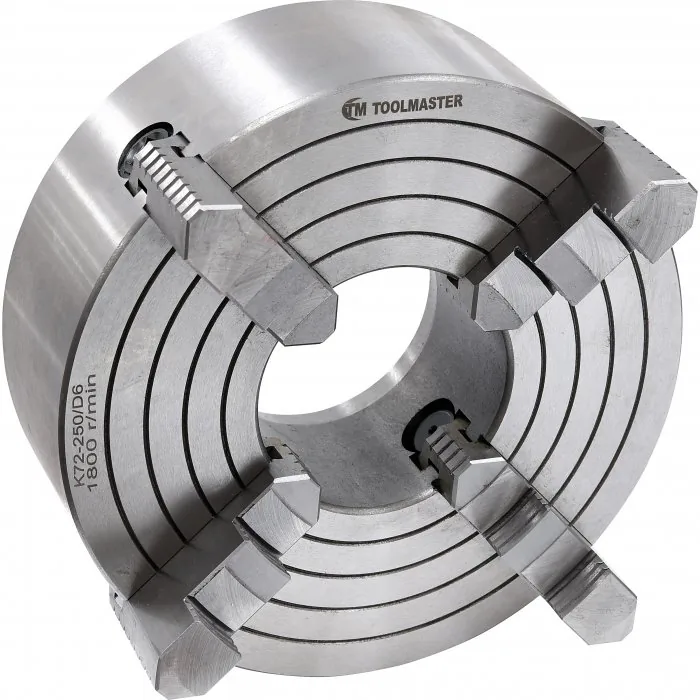

4 Jaw Independent Lathe Chuck — K72-250/D1-6, Ø250mm D1-6 Camlock Mount
Part No: C256 | Barcode: 9344195012532 | Model: K72-250/D1-6

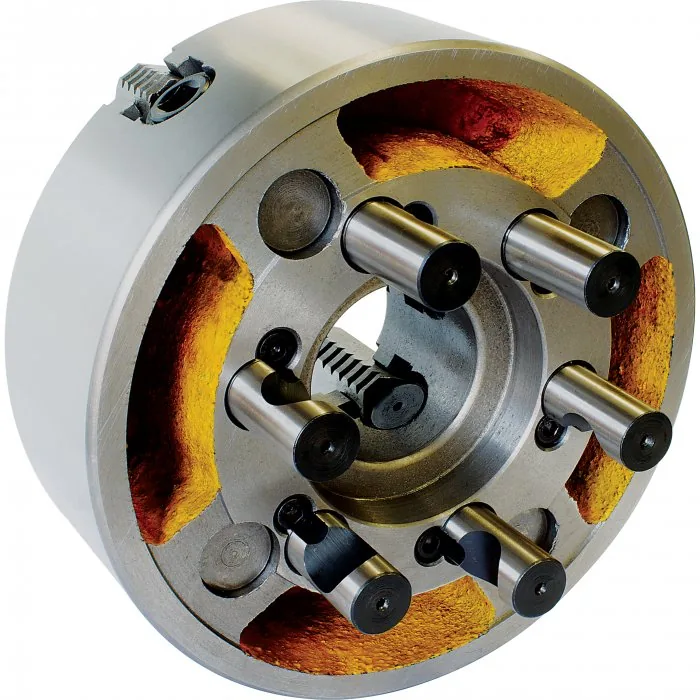

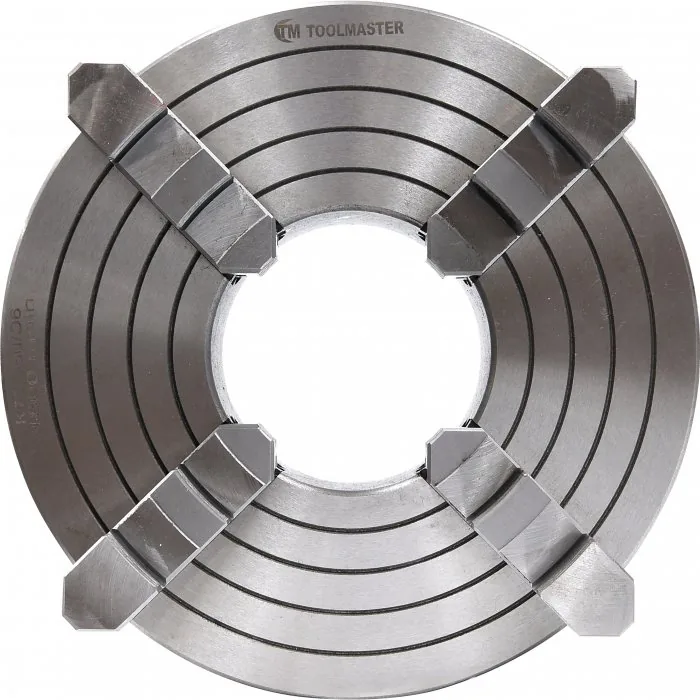

TOOLMASTER K72-250/D1-6 4 Jaw Independent Lathe Chuck (Ø250mm D1-6 Camlock Mount). Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened. Supplied with camlock pins, 1 set of jaws and wrench.
Model K72-250/D1-6
Ø250mm
D1-6 Camlock Mount
Speed: 1800 rpm
About This Product
Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened. Supplied with camlock pins, 1 set of jaws and wrench. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C256) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø250 |
| Camlock | D1-6 |
| Speed (rpm) | 1800 |
| D1 (mm) | 106.38 |
| D2 (mm) | 133.4 |
| D3 (mm) | 75 |
| H1 (mm) | 80 |
| h (mm) | 13 |
| Nett Weight (kg) | 23 |
