HAFCO
Industrial Caster Wheel Set — CW-102, Ø100mm Wheels 2 x Fixed, 2 x Swivel/Brake
Part No: C408 | Barcode: 9344195238161 | Model: CW-102
HAFCO CW-102 Industrial Caster Wheel Set (Ø100mm Wheels 2 x Fixed, 2 x Swivel/Brake). Industrial quality Ø100mm caster wheels, Tyre is made from 7mm thick polyurethane with an load capacity of up to 400kg per caster.
Model CW-102
Ø100mm Wheels

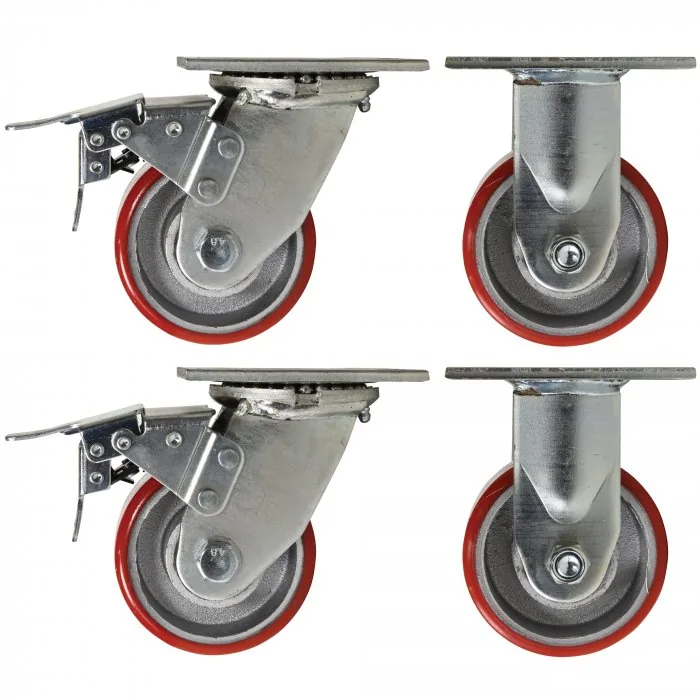

2 x Fixed, 2 x Swivel/Brake
Load Capacity per Wheel: 400 kg
Key Features & Benefits
- Ø100mm x 50mm wide polyurethane wheel

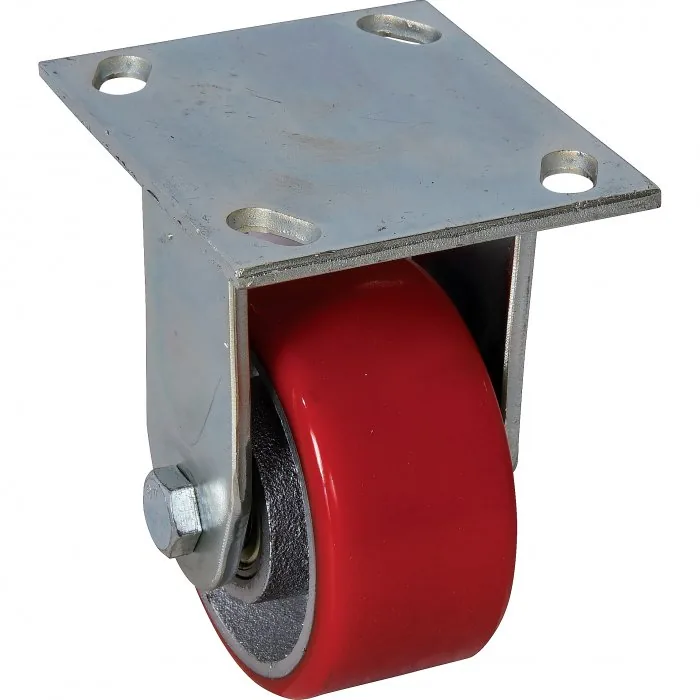

- 2 x fixed wheels

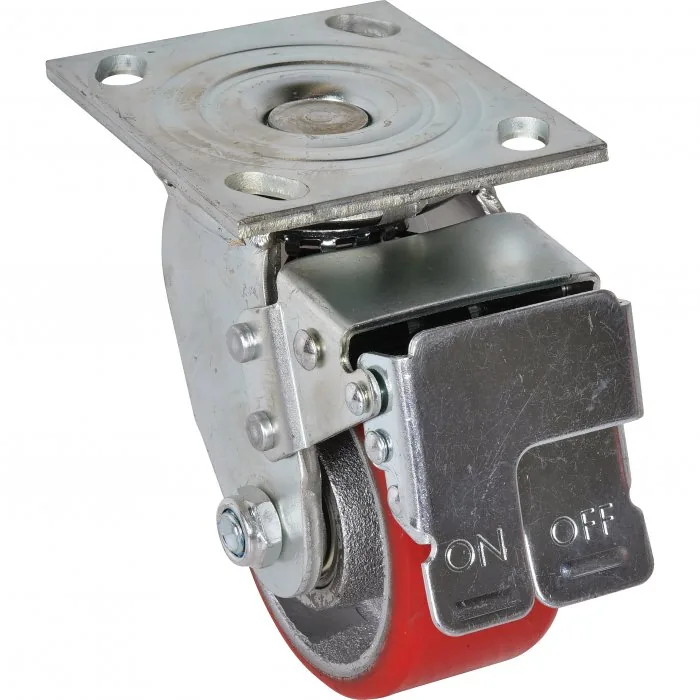

- 2 x swivel wheels with brake
- 400kg each wheel capacity
- Brake also locks wheel from swivelling

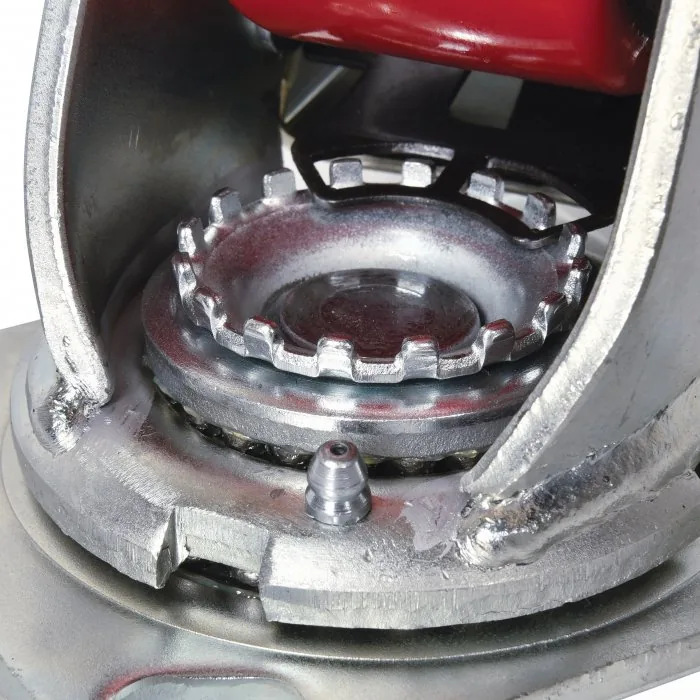

- Swivel base incorporates ball bearings
- Ball bearing sealed race on main shaft
- 145mm overall height from base of wheel to top of plate

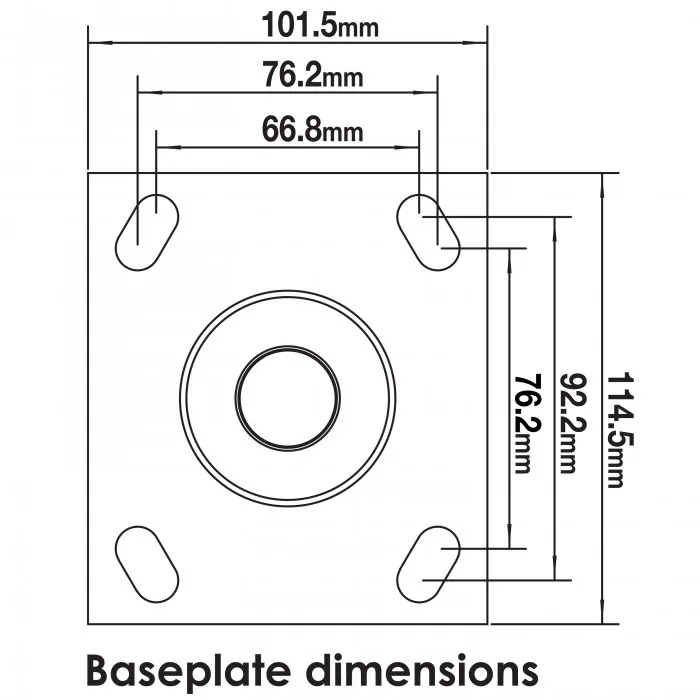

- Mounting plate 114.5 x 101.5mm with 4 slotted holes
About This Product
Industrial quality Ø100mm caster wheels, Tyre is made from 7mm thick polyurethane with an load capacity of up to 400kg per caster. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C408) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Quantity of Wheels in Pack (No.) | 4 |
| Wheel Type | 2 Fixed, 2 Swivel/Brake |
| Wheel Diameter (mm) | Ø100 |
| Wheel Width (mm) | 50 |
| Total Height to Top of Plate (mm) | 145 |
| Load Capacity per Wheel (kg) | 400 |
| Nett Weight (kg) | 11 |
