Description
TOOLMASTER

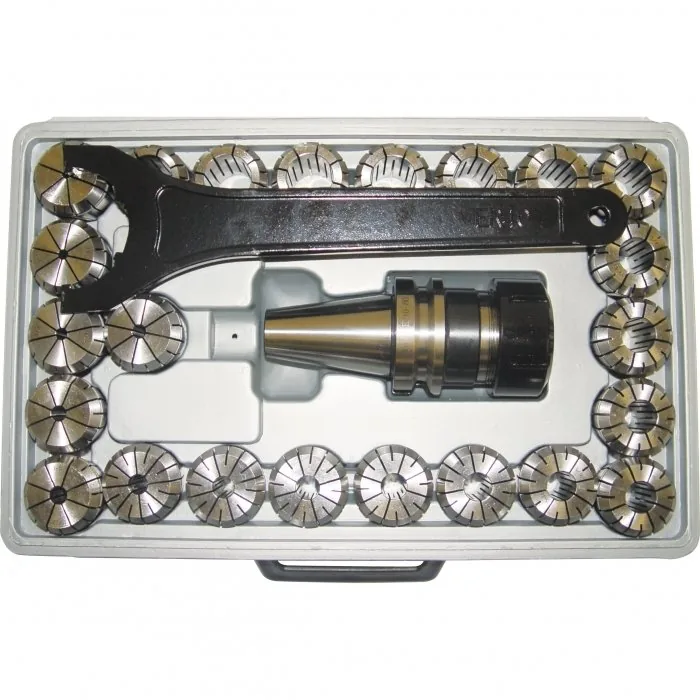

Collet & Chuck Set – 25 Piece — BT40 x ER40, Collet Range Ø3 – Ø26mm “Made in Taiwan”
Part No: C967 | Model: BT40 x ER40
TOOLMASTER BT40 x ER40 Collet & Chuck Set – 25 Piece (Collet Range Ø3 – Ø26mm “Made in Taiwan”). Precision BT40 collet chuck with ball bearing nut and a complete ER40 collet set.
Model BT40 x ER40
Collet Range Ø3 – Ø26mm
“Made in Taiwan”
Key Features & Benefits
- Includes spanner
- Chuck and collets as listed
- In blow-mould case
About This Product
Precision BT40 collet chuck with ball bearing nut and a complete ER40 collet set. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C967) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Taper | BT40 |
| Collet Type | ER40 |
| Number of Collets (No.) | 23 |
| Collet Diameter Range (Ø) | 4-3, 5-4, 6-5, 7-6 8-7, 9-8, 10-9, 11-10 12-11, 13-12, 14-13 15-14, 16-15, 17-16 18-17, 19-18, 20-19 21-20, 22-21, 23-22 24-23, 25-24, 26-25mm |
| Drawbar Thread | M16 |
