VERTEX

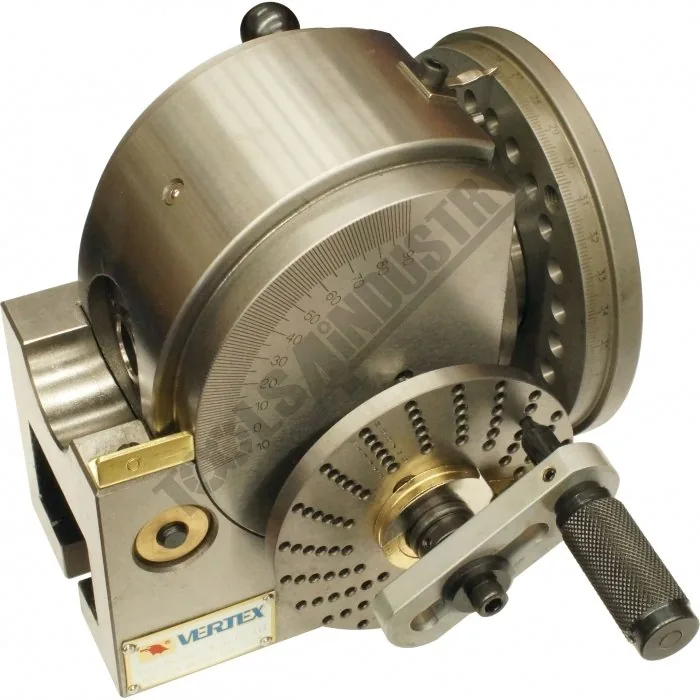

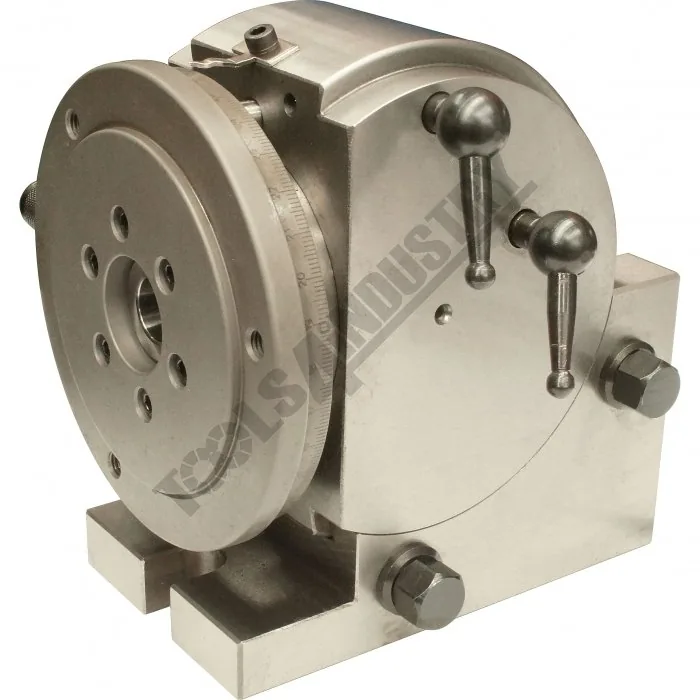

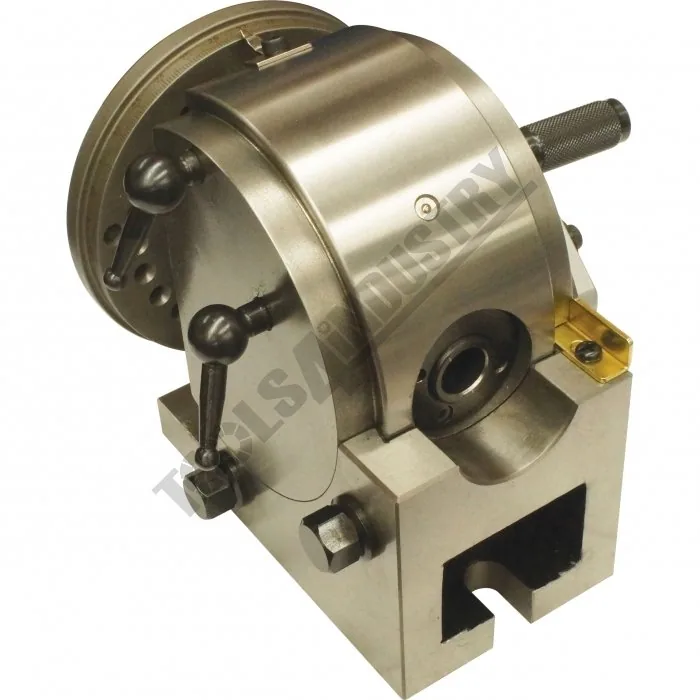

Vertex Dividing Head – Semi Universal — BS-0, 100mm Centre Height Suits 130mm 3-Jaw Chuck
Part No: D001 | Barcode: 9344195016240 | Model: BS-0
VERTEX BS-0 Vertex Dividing Head – Semi Universal (100mm Centre Height Suits 130mm 3-Jaw Chuck). The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to…
Model BS-0
100mm Centre Height
Suits 130mm 3-Jaw Chuck
Key Features & Benefits
- The Vertex Dividing Head is suitable for direct and indirect indexing
- Hardened and ground spindle rigidly held between taper roller bearings
- Improved design with spindle spigot nose for a more accurate chuck mount
- Worm is hardened and ground with ratio between worm and worm wheel 40:1
- Direct indexing designed for quick divisions of No’s 2, 3, 4, 6, 8, 12 & 24
- The head can be swivelled from 10º below horizontal to 90º vertical
- Designed to carry out all types of gear cutting, precision dividing
- Slotted base on dividing head & tailstock for use with key steel to align quickly on machine
About This Product
The Vertex Dividing Head is a tool that is used to divide a circle into equal spacers. The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other. The Vertex Semi Universal Dividing Head can be tilted through a full 90 degrees from horizontal to vertical making it a must when manufacturing bevel gears or key-ways in tapers. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D001) for collection in store.

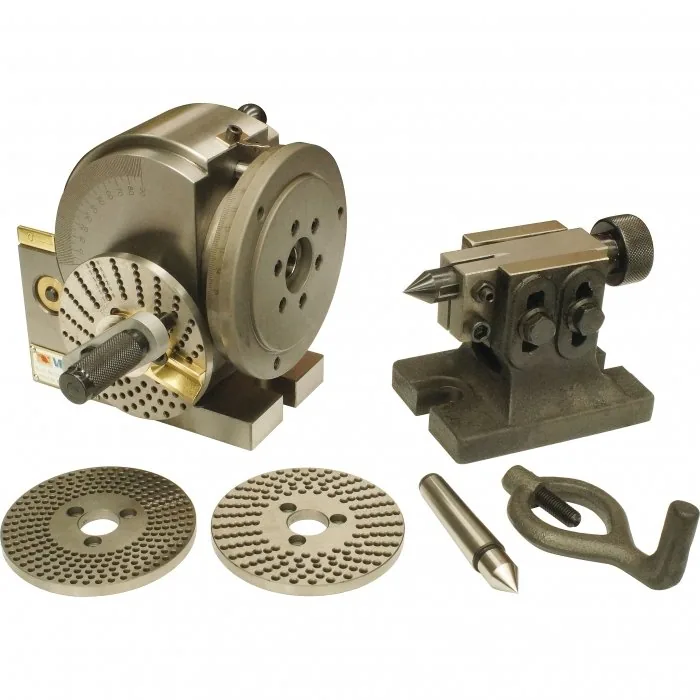

In the Box
- Backing plate suits 130mm front mount 3 jaw chuck
- Dividing plates
- Tailstock
- Dead centre
- Drive dog
Product Specifications
| Specification | Detail |
|---|---|
| Taper (MT) | MT2 |
| Bore (mm) | 18 |
| A (mm) | 189 |
| B (mm) | 140 |
| H (mm) | 173 |
| h (mm) | 100 |
| a (mm) | 160 |
| b (mm) | 91 |
| g (mm) | 13 |
| A1 (mm) | 167 |
| B1 (mm) | 80 |
| H1 (mm) | 107.5 |
| h1 (mm) | 100 |
| a1 (mm) | 130 |
| b1 (mm) | 92 |
| g1 (mm) | 13 |
| Nett Weight (kg) | 20 |
