Description
HAFCO

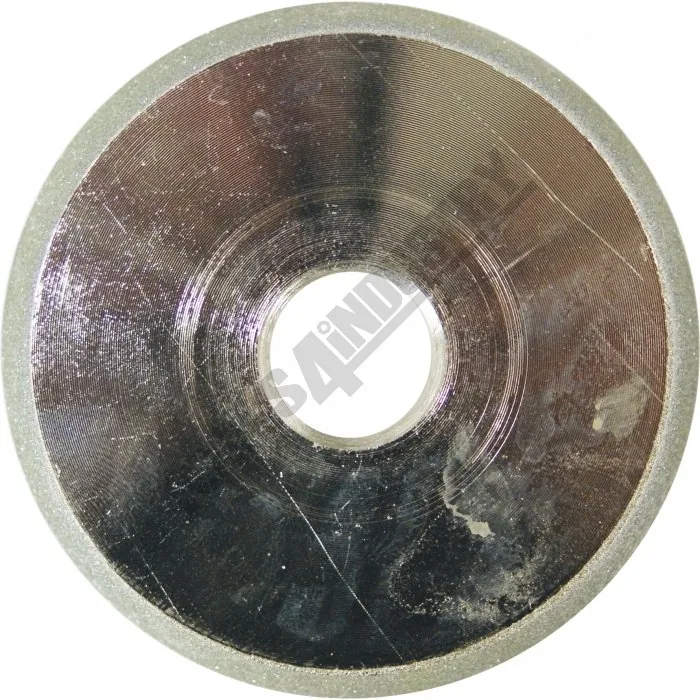

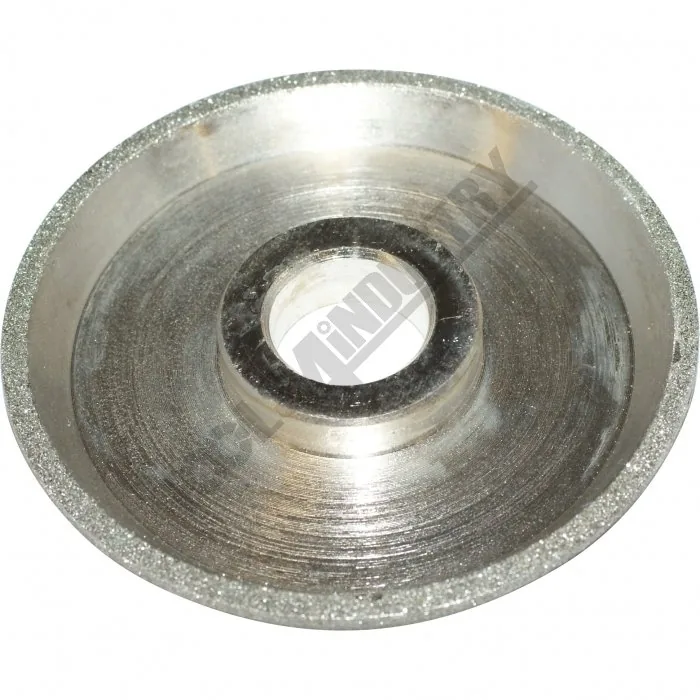

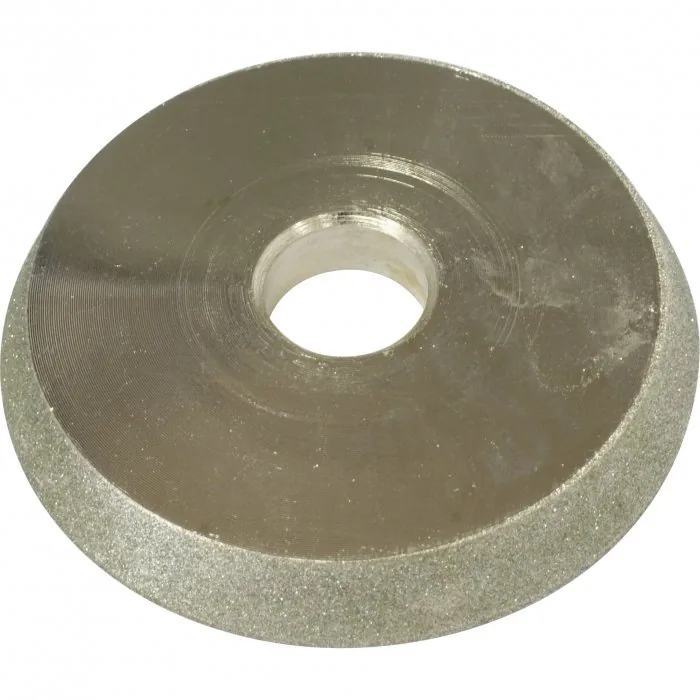

D0705 Cbn Grinding Wheel
Part No: D0705 | Barcode: 9344195022906 | Suits: EDBD-13 Drill Sharpener
D0705 Cbn Grinding Wheel — genuine Hare & Forbes spare part to suit the EDBD-13 Drill Sharpener. What is CBN (Cubic Boron Nitride)?. Available to order through Alltools Geelong for collection in store.
Key Features
- CBN wheels retain their shape and size
- Cool cutting- no burnt or blue edges
- Only light pressure required
- Don’t require dressing or conditioning
- Fine and even finish to tools
- Very long lasting
About This Part
What is CBN (Cubic Boron Nitride)? CBN abrasive is a similar product to synthetic industrial diamonds. CBN is composed of nitrogen and boron as very very hard crystals – second in hardness only to diamond. A single layer of CBN grit on the surface of a metal wheel can grind the hardest steel and last for many years. Our electroplated CBN grinding wheels are machined from solid steel, electroplated with a layer of CBN grit and nickel plated. A CBN wheel is far better suited for sharpening high speed steels and will withstand the friction from grinding with much less heat produced than with a diamond wheel. A Hare & Forbes special-order spare part, available to order through Alltools Geelong (order code D0705) for collection in store.
Specifications
D0705 Cbn Grinding Wheel — Specifications
| Specification |
Detail |
| Type |
CBN Wheel |
| Grinding – Drill Bit Type |
HSS |
| Sharpening Range (mm) |
3 – 13 |
| Suits Grinding Machine |
EDBD-13 |
Brand: HAFCOOrder Code: D0705Suits: EDBD-13 Drill SharpenerBarcode: 9344195022906Availability: Special order — collect in store
