Sutton

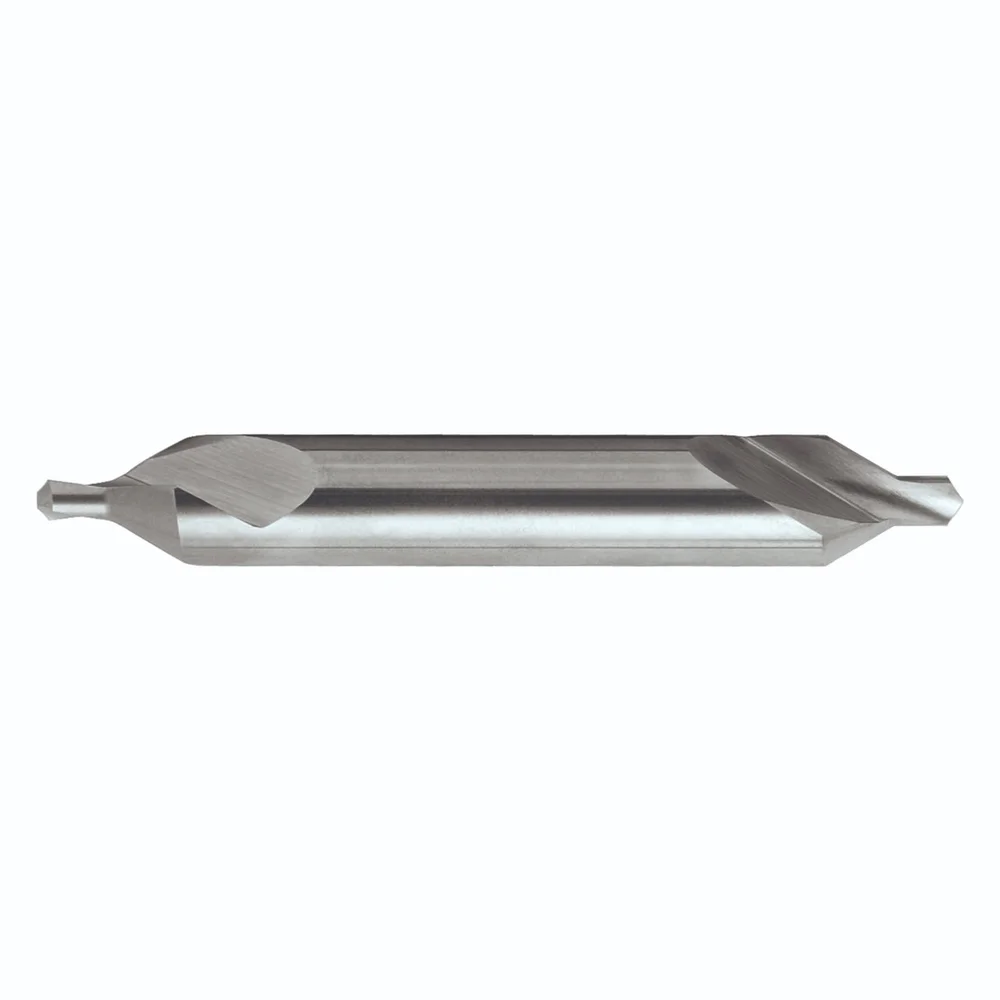

Sutton BS3 HSS Centre Drill Bit — 7/64″ Pilot, 1/4″ Body
Part No: D1360003 | Barcode: 9311963002453 | Series: D136 Plain Type
The Sutton D1360003 is a 60° plain-type combination centre drill (BS 328 / DIN 333 Form A) for accurately spotting and starting holes on the lathe before drilling, turning between centres, or supporting work in tailstock centres. 7/64″ (2.78mm) pilot point on a 1/4″ (6.35mm) body in tough M2 high-speed steel.
BS3 Standard
7/64″ Pilot
1/4″ Body
50mm Long
60° Point Angle
HSS — M2
Bright Finish
Double-Ended
Suitable For
Mild Steel
Stainless Steel
Cast Iron
Brass & Copper
Aluminium
Plastics
Key Features & Benefits
- 60° centre angle — matches dead and live centres so work runs true between centres on the lathe.
- Combination point + body geometry — drills the pilot hole and 60° countersink in one operation, eliminating walking on hard or scaled surfaces.
- M2 high-speed steel — holds an edge through repeated centre-spotting in steel and stainless without re-sharpening.
- Double-ended design — flip the bit when one end dulls; effectively two centre drills in one body.
- BS 328 / DIN 333 Form A — standardised dimensions interchangeable with any plain-type centre drill in the trade.
- Sutton Australian-engineered — manufactured to the BS 328 standard with consistent point geometry batch to batch.
When to Use This Centre Drill
The Sutton D1360003 (BS3) is best suited to centre-spotting where the finished hole or shaft turning needs a precise 7/64″ pilot. Use it in the lathe tailstock or on a milling machine before drilling, reaming, or turning between centres. Choose a smaller size for delicate work and miniature shafts; step up to BS5 for larger shafts and heavier work where the centre must support significant load. Match the body diameter to the depth of countersink you want to leave for the live centre.
Pro Tip: Drill in only until the 60° body taper has cut about two-thirds of the way to the full body diameter — not until the pilot bottoms out. This leaves a clean conical seat for the lathe centre with the pilot acting as a relief well; over-drilling buries the live centre on the flat shoulder and the work runs eccentric. For the BS3 size, that is roughly 6.35mm of countersink depth as a reference.
Authorised Sutton Dealer — Sutton Tools is an Australian-owned manufacturer (Thomastown, Victoria). This product is backed by full Sutton manufacturer warranty with local technical support — visit Sutton Tools for the full D136 plain-type series.
Product Specifications
| Part No. | BS Size | Pilot Ø (in) | Pilot Ø (mm) | Body Ø (in) | Body Ø (mm) | Length (mm) |
|---|---|---|---|---|---|---|
| D1360001 | BS1 | 3/64″ | 1.19 | 1/8″ | 3.17 | 32 |
| D1360002 | BS2 | 5/64″ | 1.98 | 3/16″ | 4.76 | 48 |
| D1360003 ★ | BS3 | 7/64″ | 2.78 | 1/4″ | 6.35 | 50 |
| D1360004 | BS4 | 1/8″ | 3.17 | 5/16″ | 7.94 | 54 |
| D1360005 | BS5 | 3/16″ | 4.76 | 7/16″ | 11.11 | 70 |
★ You are viewing the highlighted size. Other sizes in the D136 series are also available — click any part number above.
