HAFCO-METALMASTER

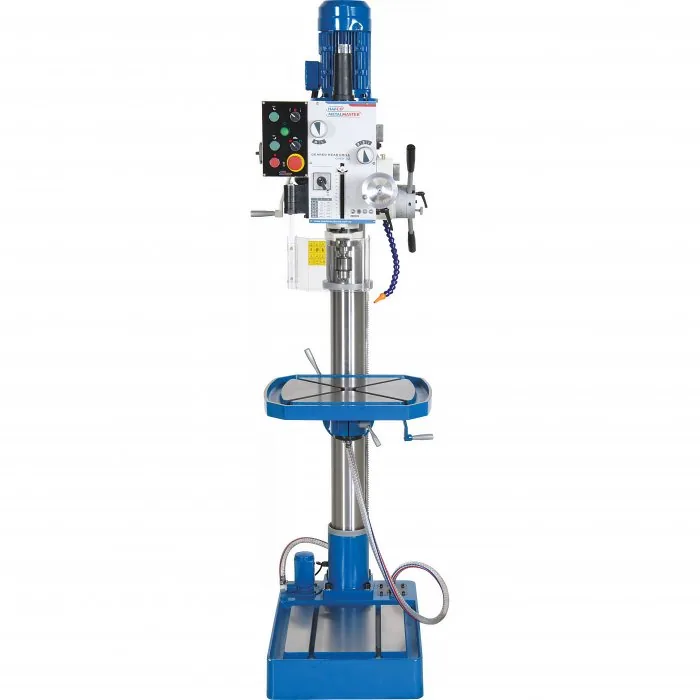

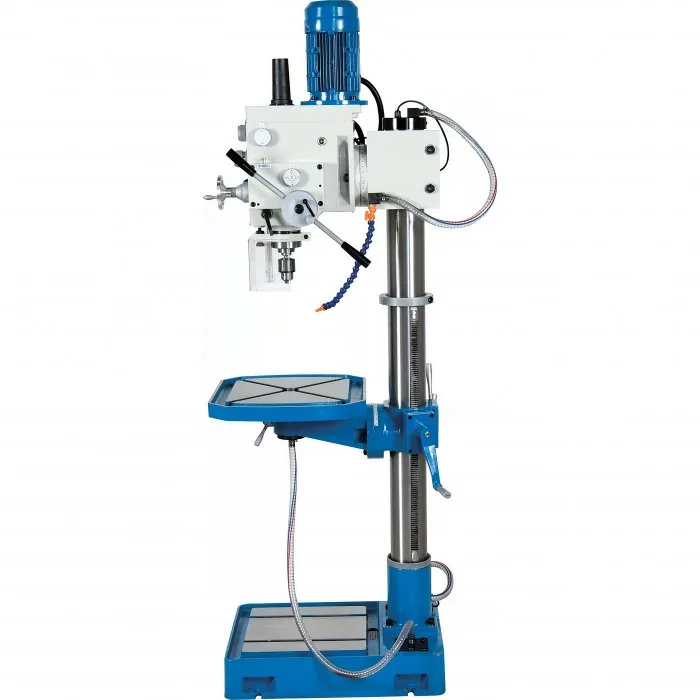

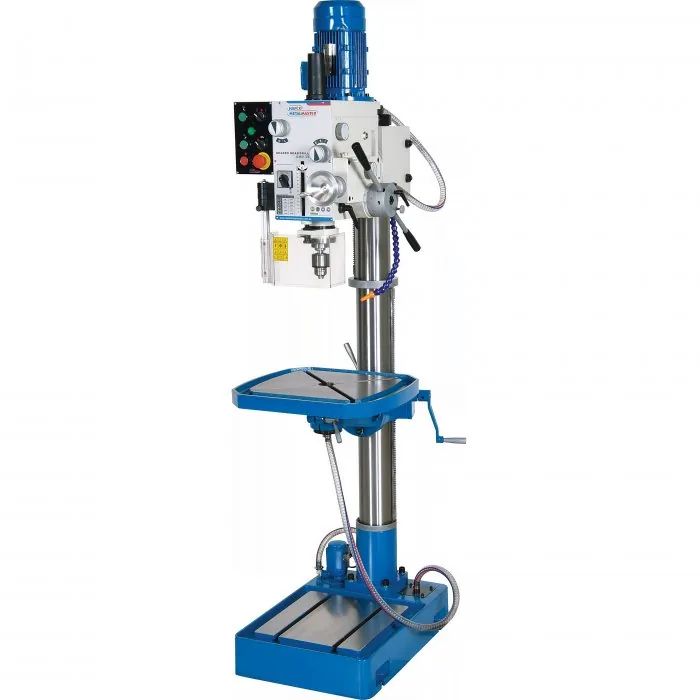

Industrial 4MT Geared Head Drilling Machine — GHD-32, Ø40mm Drilling Capacity Includes Automatic Feed & Tapping
Part No: D177 | Barcode: 9344195024030 | Model: GHD-32
HAFCO-METALMASTER GHD-32 Industrial 4MT Geared Head Drilling Machine (Ø40mm Drilling Capacity Includes Automatic Feed & Tapping). The GHD-32 Industrial 4MT Geared Head Drilling Machine is the next model up from the GHD-22 & GHD-30V. This drill is our entry level machine with a 4 morse taper spindle to handle holes…
Model GHD-32
Ø40mm Drilling Capacity
Includes Automatic Feed & Tapping
Drilling Capacity: Ø40 mm
Thread Tapping Capacity: M16 Metric
Spindle Taper: 4 MT
Spindle Travel: 120 mm
Key Features & Benefits
- Ideal for industrial workshop use
- 4MT geared head machine
- Thread tapping with auto reverse

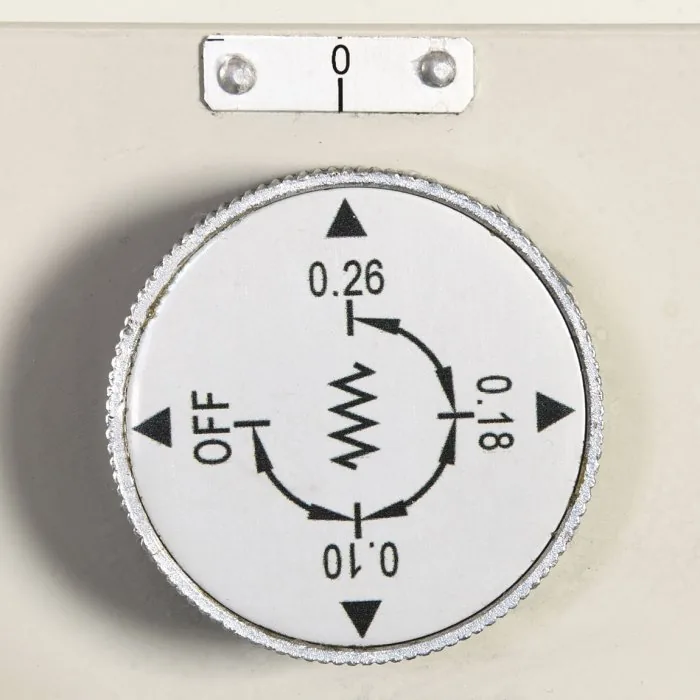

- Automatic feed range (0.1, 0.18, 0.26mm/rev)

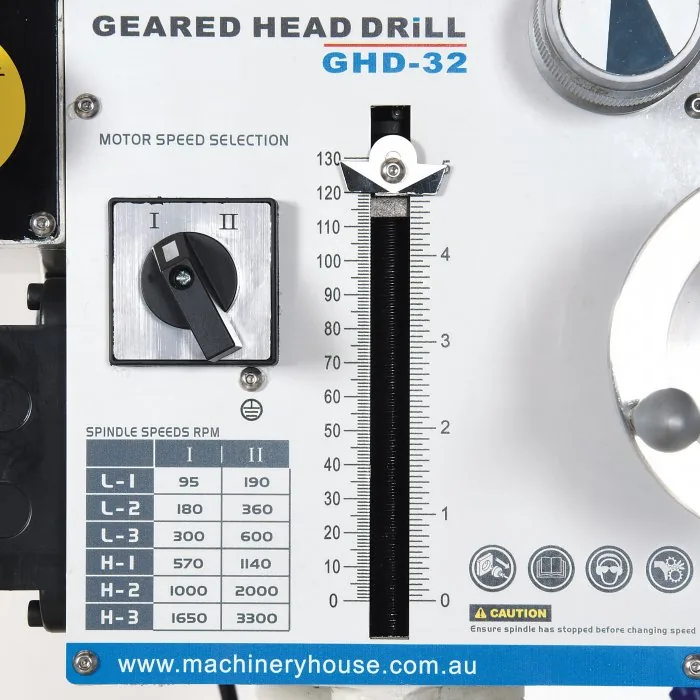

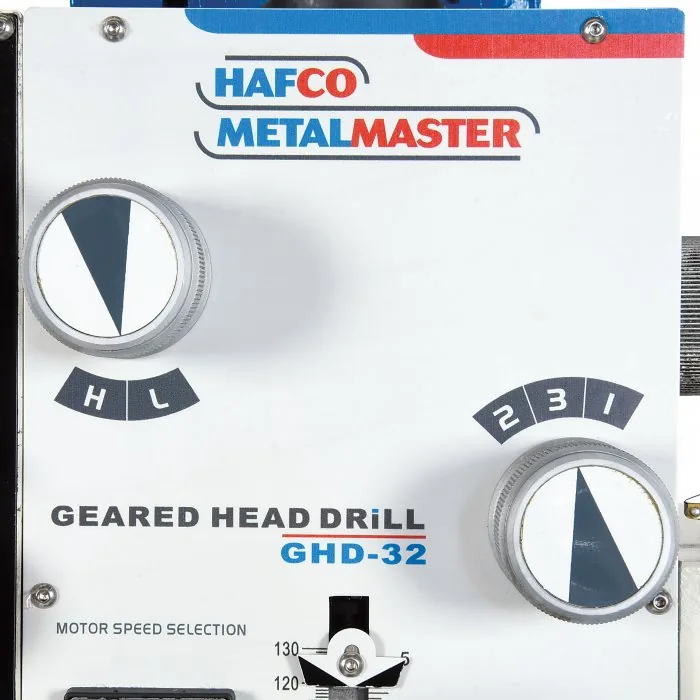

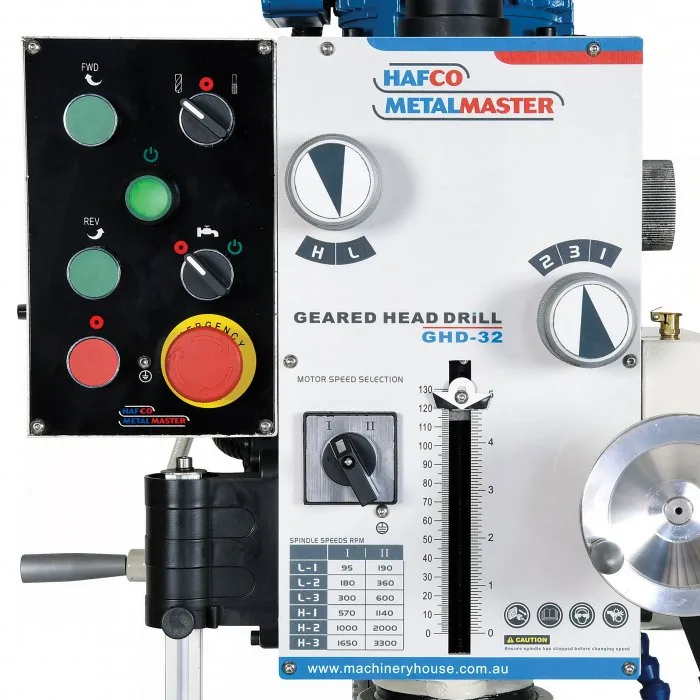

- 12 drilling speeds 95-3300rpm, 415V motor

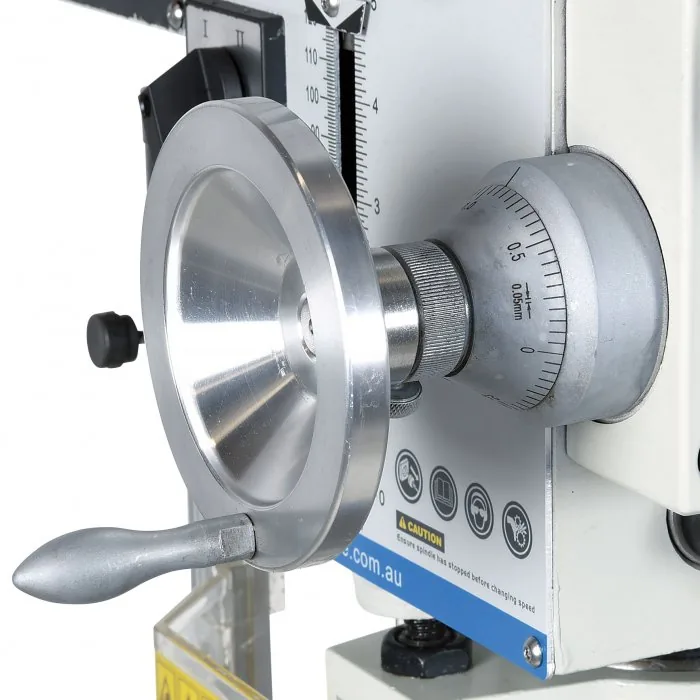

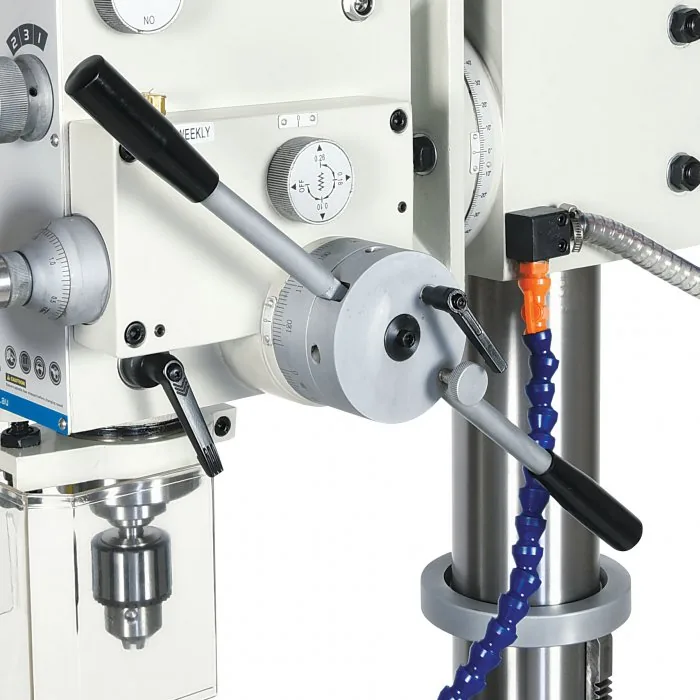

- Micro down feed adjustment

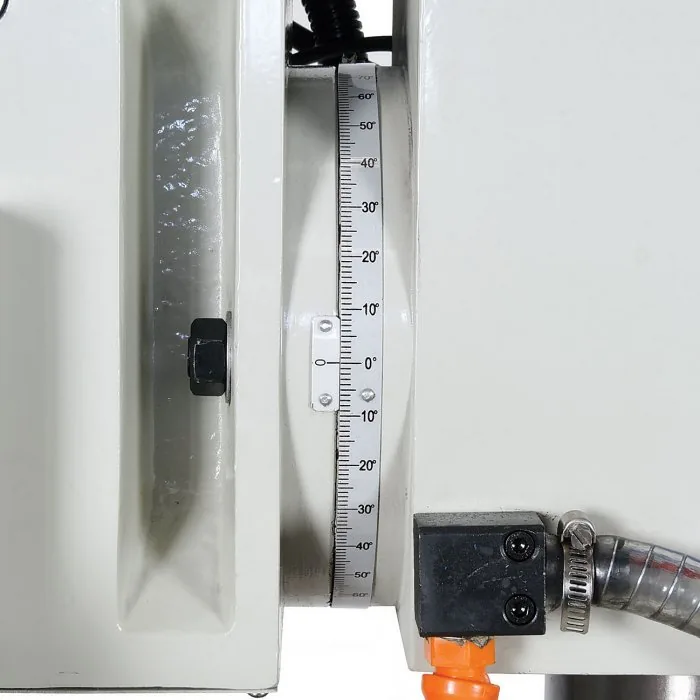

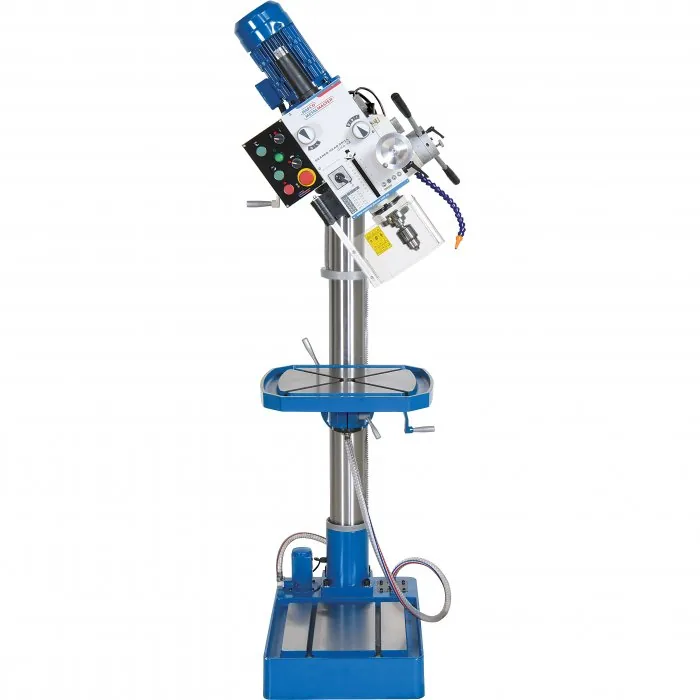

- Tilting / swivel head ±90º

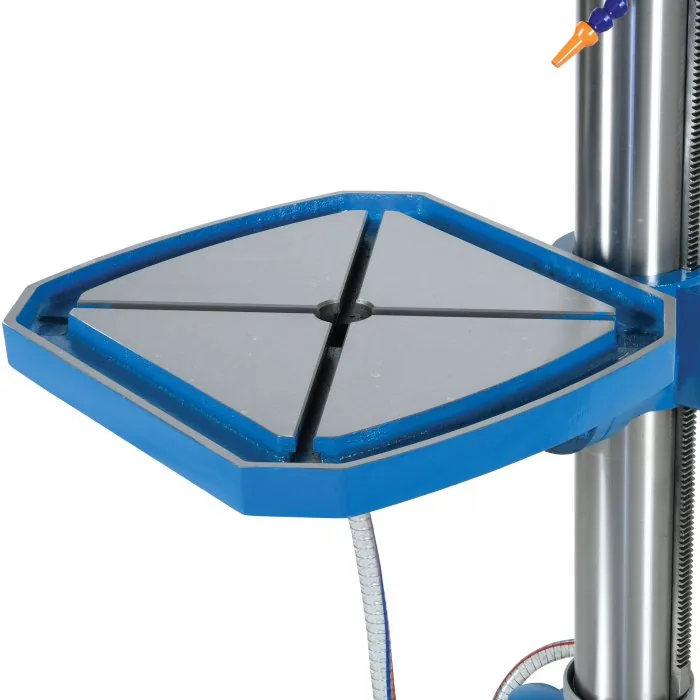

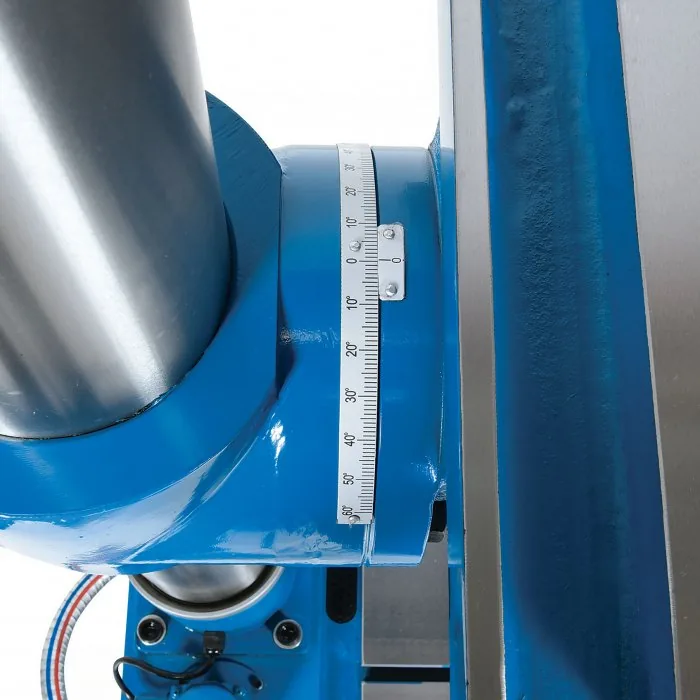

- Tilting & rotating rectangle work table

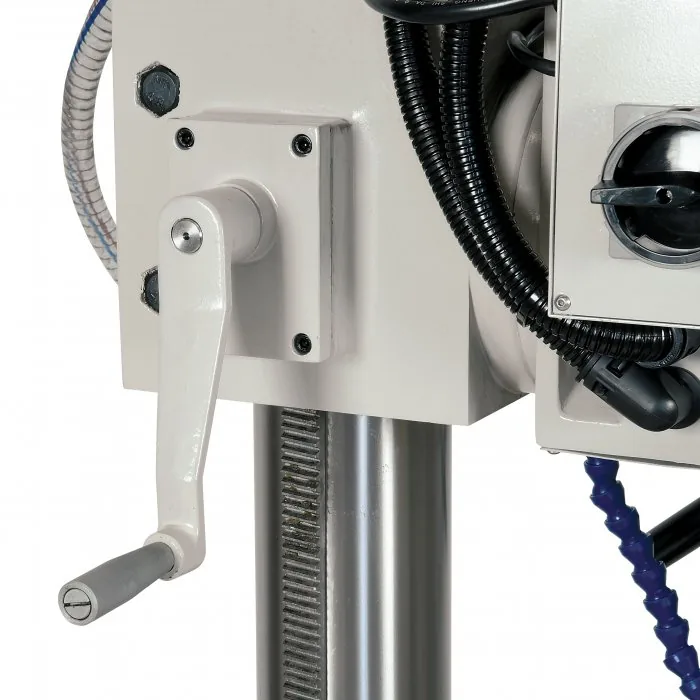

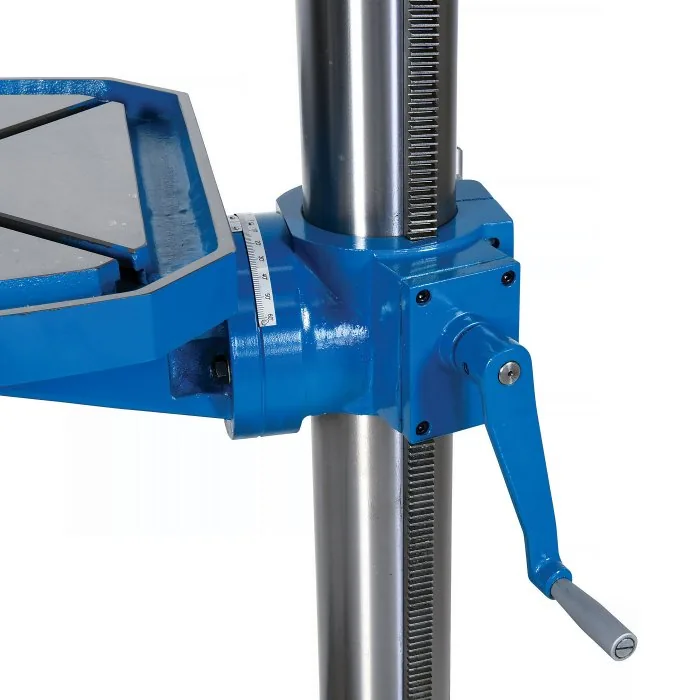

- Rack & pinion table & drill head
- Adjustable accurate depth setting for increased productivity

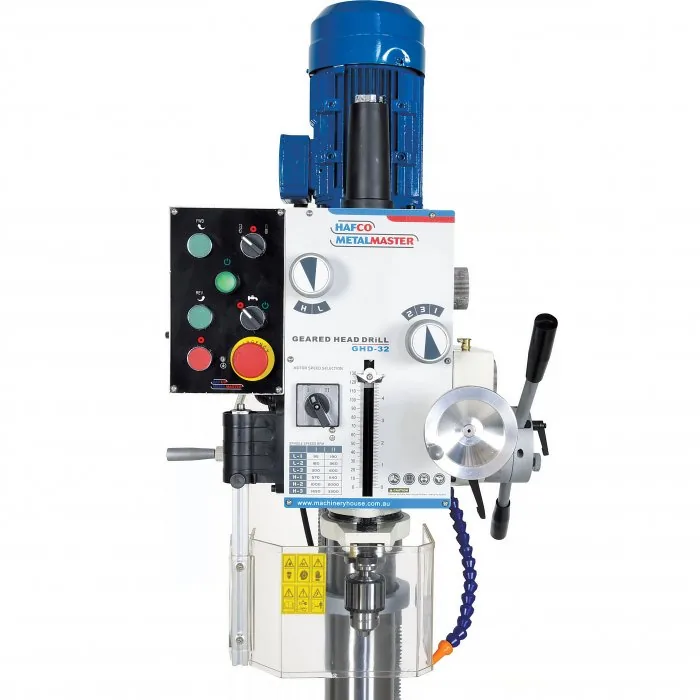

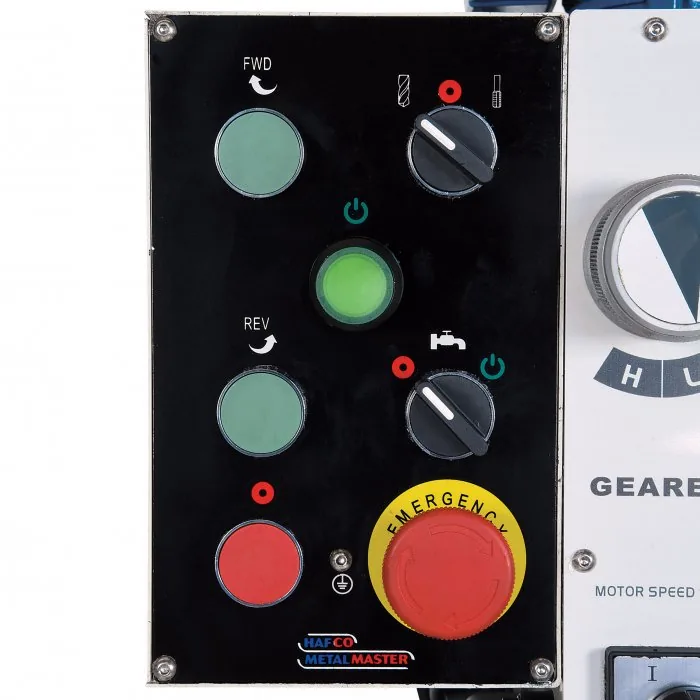

- Forward/reverse & safety stop switches

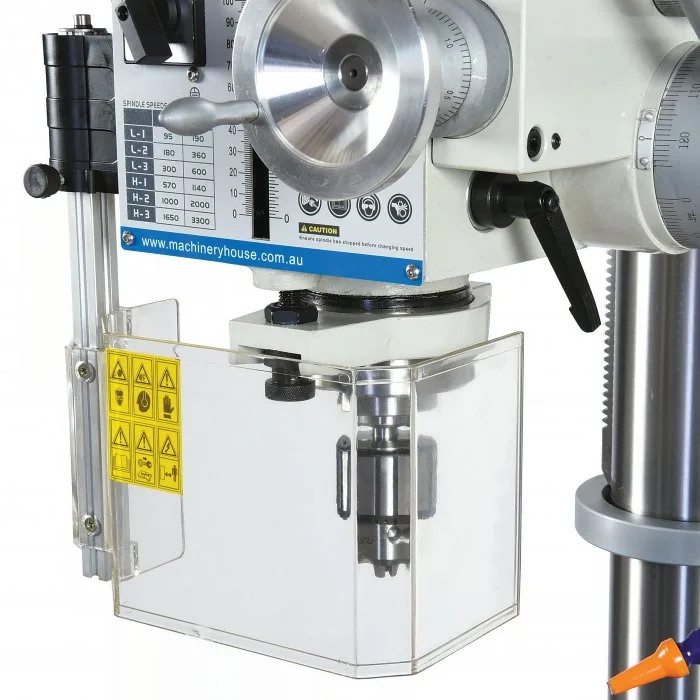

- Interlocked spindle safety guard

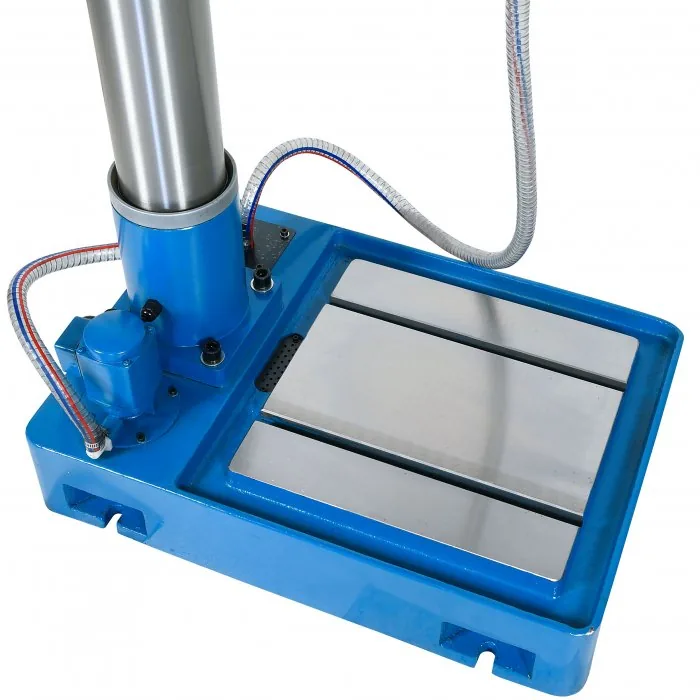

- T slotted work table and base

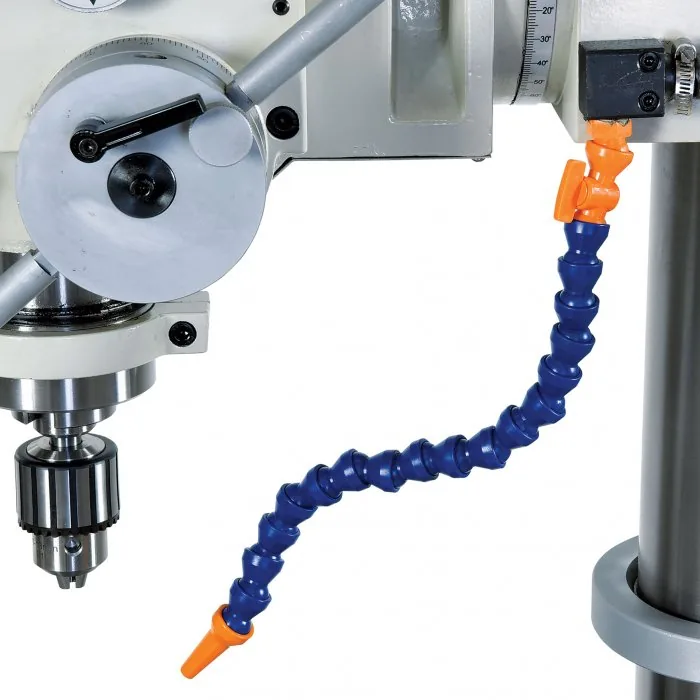

- Includes coolant pump system & drill chuck
About This Product
The GHD-32 Industrial 4MT Geared Head Drilling Machine is the next model up from the GHD-22 & GHD-30V. This drill is our entry level machine with a 4 morse taper spindle to handle holes up to 40mm. it also has all the goodies like auto feed, thread tapping function, tilting & rotating large cast table and a rack & pinion height adjustable work table and drill head. Another notable feature to point out on this model is that the head swivels ±90º from vertical offering even more scope to drilling holes at the desired angle required. The coolant pump system with and adjustable flexible hose to direct the fluid on the drill will prolong the life of your drill bits. The machine offers 12 spindle speeds from 95 – 3300rpm to drill a wide range of holes in many types of materials. A great all-rounder machine that will surely add value to your business for a small investment. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D177) for collection in store.

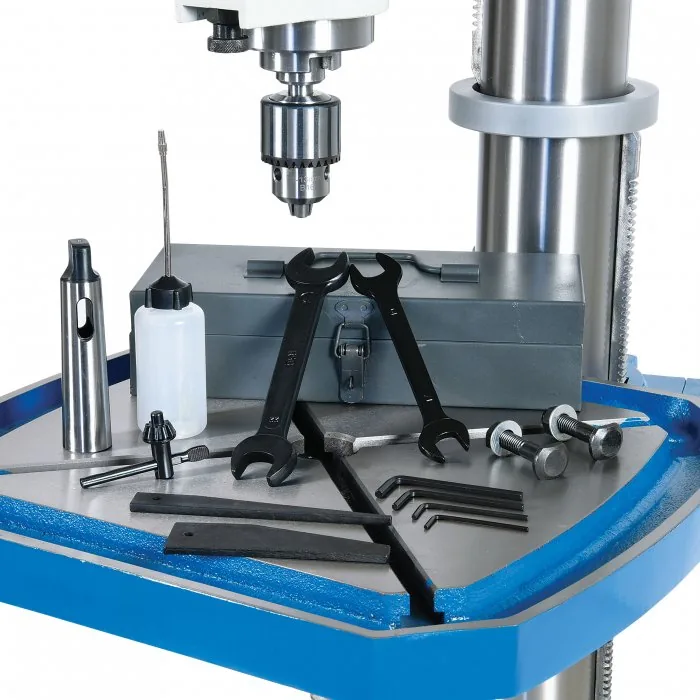

In the Box
- Coolant pump system

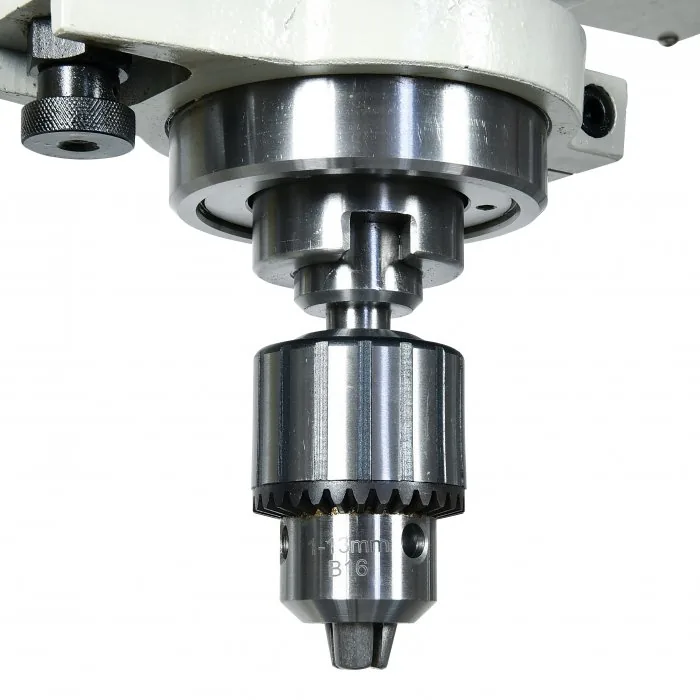

- Keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills
- Interlocked spindle safety guard
- Drawbar
Product Specifications
| Specification | Detail |
|---|---|
| Drilling Capacity (mm) | Ø40 |
| Thread Tapping Capacity (Metric) | M16 |
| Spindle Taper (MT) | 4 |
| Spindle Travel (mm) | 120 |
| Throat Depth (mm) | 273 |
| Quill Diameter (mm) | 75 |
| Column Diameter (mm) | 115 |
| Spindle To Table (mm) | 720 |
| Spindle To Base (mm) | 1175 |
| Table (Type) | Rectangle |
| Table Size (mm) | 490 x 460 |
| T-Slot Size (mm) | 14 |
| Automatic Quill Feed (mm/rev) | 0.1, 0.18, 0.26 |
| Coolant System (Includes) | Yes |
| Spindle Speed Steps (No.) | 12 |
| Spindle Speed Range (rpm) | 95 3300 |

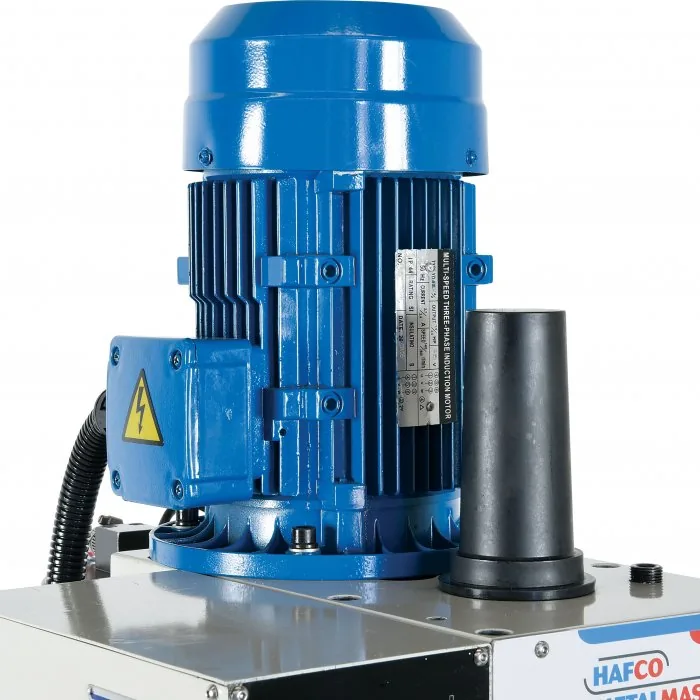

| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 415 |
| Full Height (mm) | 1890 |
| Nett Weight (kg) | 320 |
