EASSON

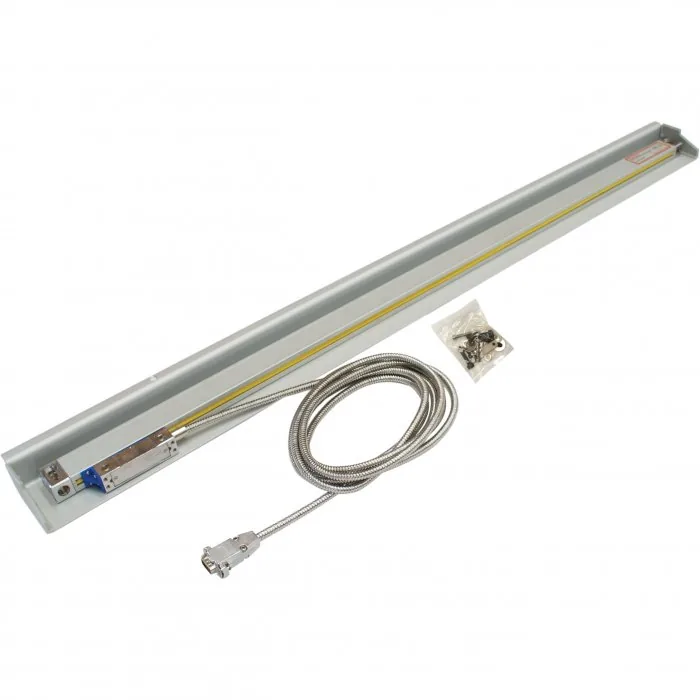

1300mm Easson Digital Readout Scale — VS20 Standard Scale 5µm Resolution
Part No: D738 | Barcode: 9344195000843
EASSON 1300mm Easson Digital Readout Scale (VS20 Standard Scale 5µm Resolution). Easson VS series Glass Grating Linear Transducer: EASSON – Always committed to Quality, Technology & Innovation
VS20 Standard Scale
5µm Resolution
Travel – Maximum: 1300 mm
Key Features & Benefits
- DOUBLE SEAL DESIGNED SCALES:
- The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.
- 100% LASER CALIBRATION:
- All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.
- ADVANCED OPTICAL MEASURING SYSTEM:

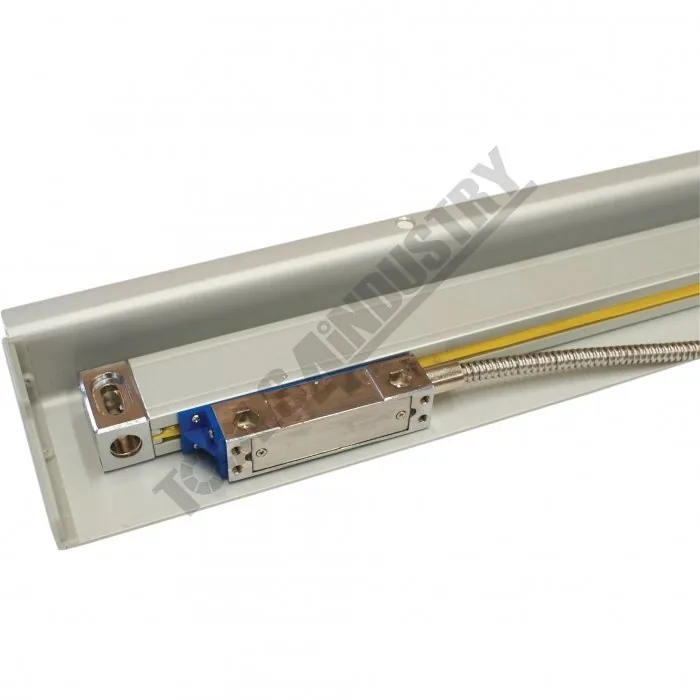

- The slide carrier of the VS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today’s market.
- The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

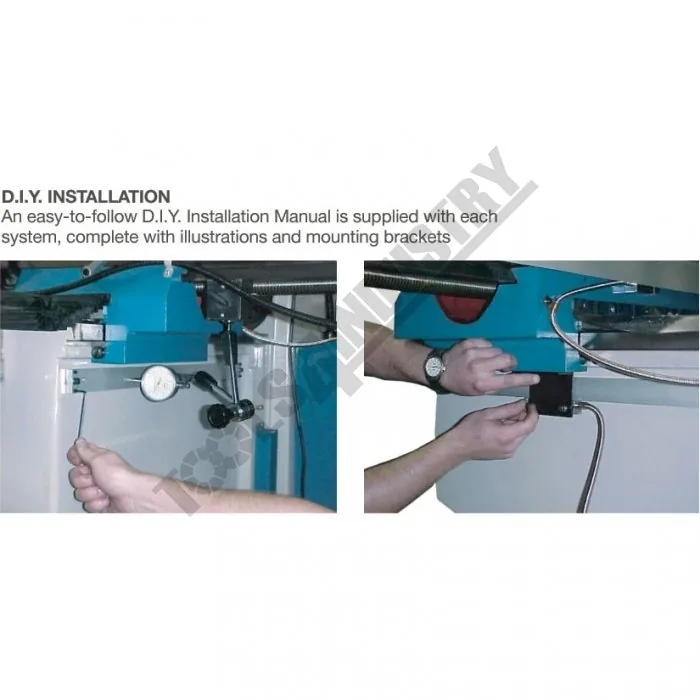

- D.I.Y. INSTALLATION:

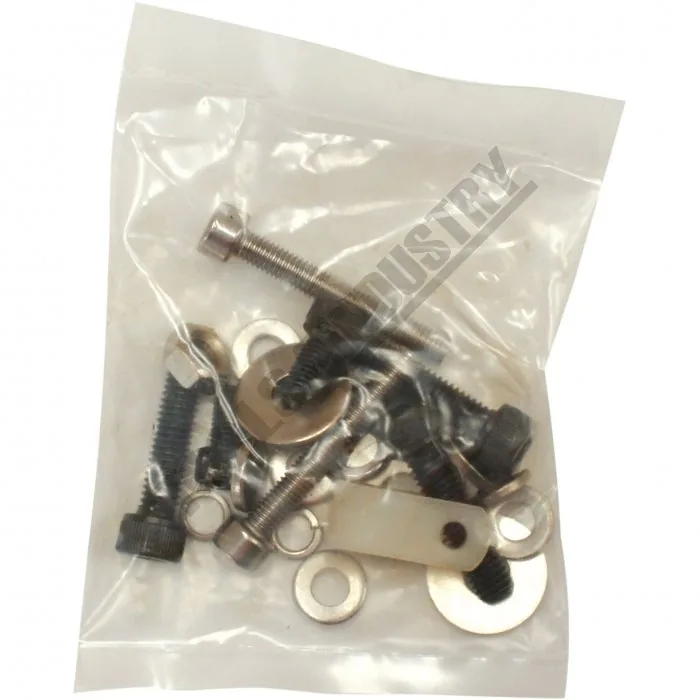

- An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.
About This Product
Easson VS series Glass Grating Linear Transducer: EASSON – Always committed to Quality, Technology & Innovation This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D738) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | VS20 Standard Scale |
| Travel – Maximum (mm) | 1300 |
| Overall Length (L) (mm) | 1446 |
| Scale Resolution (µm) | 5 |
| Accuracy (µm) | ±10 |
| Cable Length (Metre) | 5 |
| Width x Height (W x H) (mm) | 27.5 x 40.1 |
| Backing Support Plate (Yes / No) | No |
