Tormek

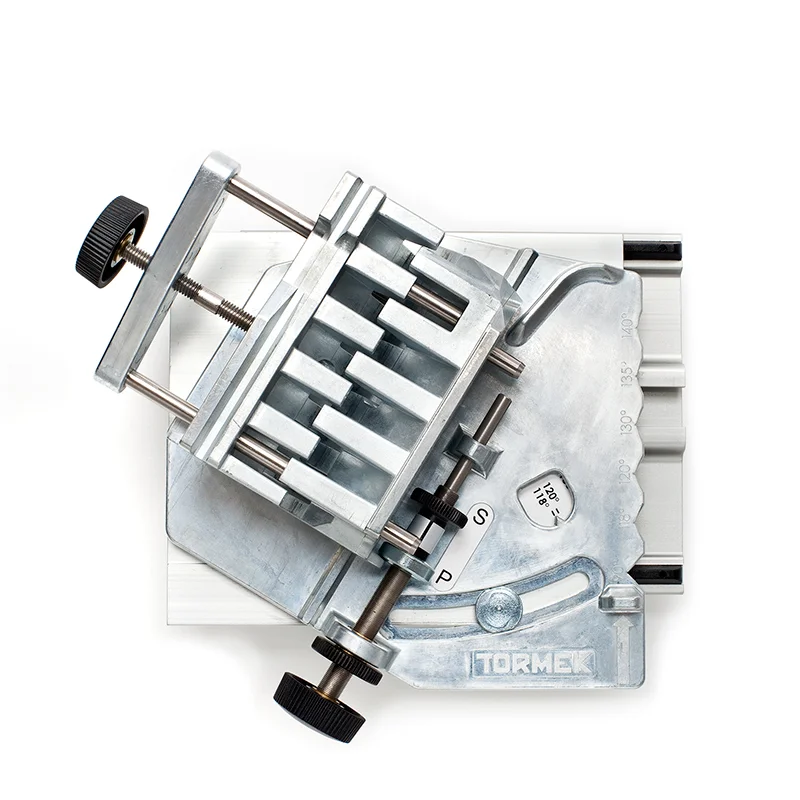

Tormek DBS-22 Drill Bit Sharpening Attachment
Part No: DBS-22 | Barcode: 7392485005025
The DBS-22 is a precision drill bit sharpening attachment for bits from 3mm to 22mm diameter. It creates a four-facet point with adjustable angles from 90 to 150 degrees, producing drill bits that last over four times longer than conventionally sharpened bits and cut without wandering.
3-22mm Bits
Four-Facet Point
90-150° Angle
4x Longer Life
Made in Sweden
Key Features & Benefits
- Four-facet point geometry — creates a self-centering point that starts cutting immediately without wandering, even on curved surfaces.
- Adjustable point angle — set any angle from 90 to 150 degrees and four clearance angles for optimal performance in different materials.
- 3-22mm capacity — covers the full range of common twist drill bits used in woodworking, metalworking and general workshop tasks.
- Water-cooled sharpening — eliminates the overheating and microcracking that occurs when sharpening drill bits on dry bench grinders.
- Included magnifying glass — built-in magnifier helps align small drill bits precisely in the jig for accurate results.
When to Use This Product
The DBS-22 transforms dull, wandering drill bits into precision cutting tools. Use it whenever drill bits start requiring excessive pressure, produce oversized holes, or wander off-centre. The four-facet point it creates is significantly superior to the standard two-facet point from hand grinding.
Authorised Australian Dealer — This product is sourced directly from Promac Tools Australia and is backed by full Australian manufacturer warranty and local support.
